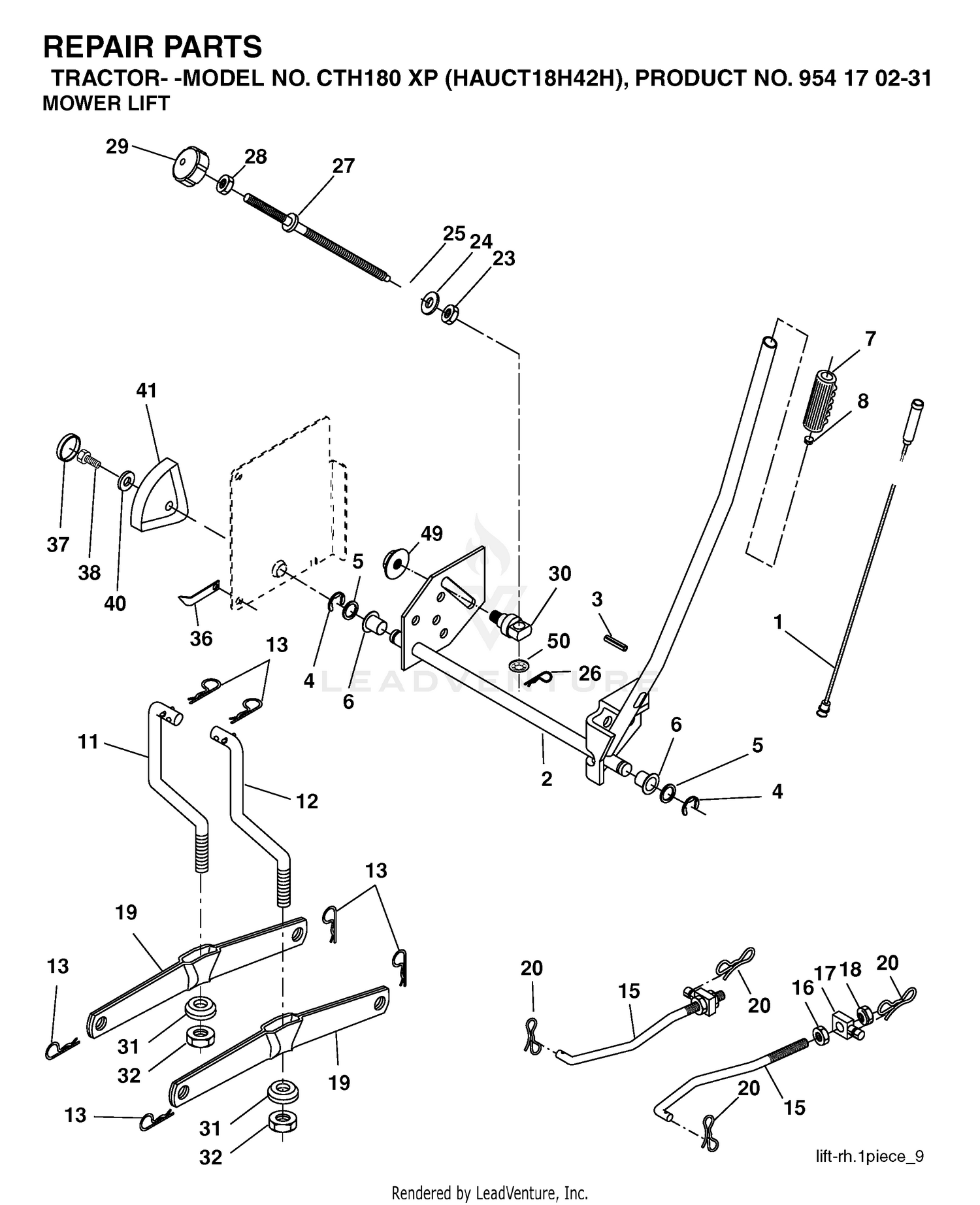

| Ref | Part Number | Description |
|---|
| 1 |
532198417 |
NEEDS DESCRIPTION Price: Call Us |
| 2 |
585906501 |
KIT.SERVICE.198070 This part replaces 532198070. Price: $49.99 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 10 |
115-4105 |
GEAR CASE ASM Price: $560.23 |
| 11 |
532165828 |
LIFT LINK, LH This part replaces 532165829. Price: $17.99 |
| 12 |
532165830 |
LINK ASSY. This part replaces 532165831. Price: $9.99 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 17 |
532175689 |
TRUNNION Price: $3.99 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 20 |
127-0425 |
PLUG Price: $4.34 |
| 20 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 25 |
532137150 |
SPRING.COMP.INF.H Price: $4.99 |
| 25 |
98-7487 |
PLUG Price: $3.18 |
| 26 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 27 |
532137167 |
ROD.LIFT.ADJUSTABLE Price: $5.99 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 30 |
532150233 |
TRUNNION Price: $9.99 |
| 30 |
98-7562 |
WASHER-PLAIN Price: $0.36 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 36 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 38 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 40 |
819112410 |
WASHER Price: $3.99 |
| 40 |
98-9388 |
JOINT-PIPE Price: $31.66 |
| 41 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 50 |
532110452 |
NUT PUSH M Price: $2.99 |
| 50 |
98-9544 |
SPRING Price: $0.94 |
| 60 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 70 |
98-9380 |
BALL Price: $0.84 |
| 80 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 85 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 90 |
107-9071 |
SCREW Price: $0.36 |
| 100 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 120 |
100-1765 |
BOLT Price: $1.59 |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 160 |
99-3510 |
BOLT Price: $0.80 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 180 |
98-7572 |
NUT Price: $0.32 |
| 190 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 200 |
119-8038 |
SEAL-OIL Price: $40.16 |
| 210 |
105-3710 |
STUD Price: $1.16 |
| 220 |
99-3515 |
PLUG-GEARCASE Price: $9.00 |
