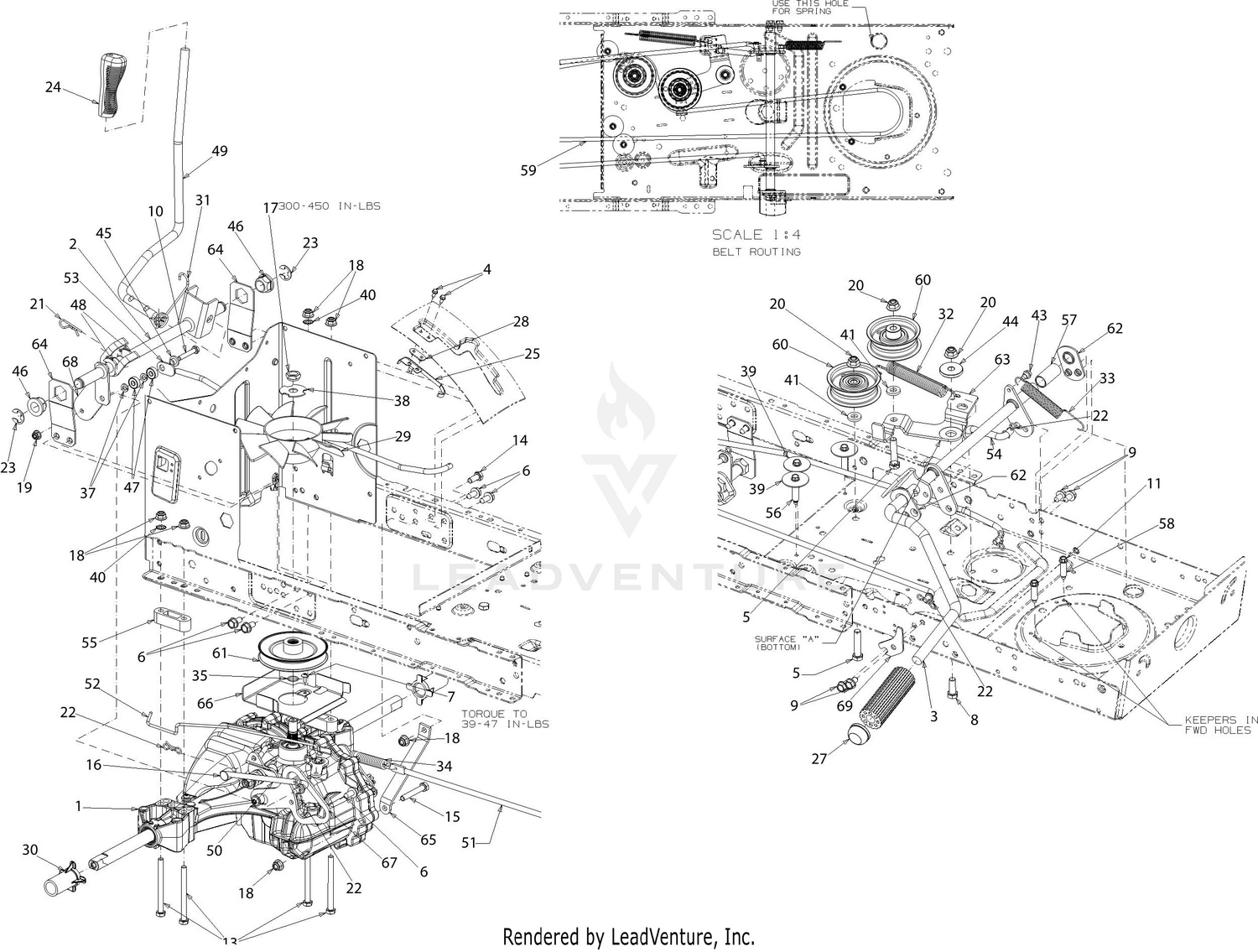

Drive
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 918-04892C | HYDRO TRANSMISSION ASSEMBLY Price: $973.94 |
| 2 | 647-04200A | CONTROL HANDLE ASSEMBLY Price: $21.40 |
| 4 | 710-0227 | HEX SCREW WASHER HD #8-18 x 0.500 Price: $3.90 |
| 5 | 710-0347 | HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 6 | 710-04484 | SCREW 5/16-18 x .750 Price: $3.19 |
| 7 | 710-04997 | SCREW-#10-24 x .400 SELF TAP Price: $2.84 |
| 8 | 710-0514 | SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 9 | 710-0604A | SCREW 5/16-18 x .625 Price: $3.96 |
| 10 | 710-0606 | SCREW 1/4-20 x 1.50 GR.5 Price: $4.67 |
| 11 | 710-0809 | SCREW 1/4-20 x 1.25 Price: $6.37 |
| 13 | 710-1266 | SCREW 5/16-18X3.5 GR5 Price: $8.66 |
| 14 | 710-3008 | SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 15 | 710-3103 | SCREW 5/16-18 x 2.0 GR5 Price: $4.02 |
| 16 | 711-04448 | FERRULE 5/16-24 x .312 Price: $9.07 |
| 17 | 712-0346 | Jam Nut, 1/2-20 This part replaces 912-0346. Price: $3.95 |
| 18 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 19 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 20 | 712-04065 | NUT Price: $3.68 |
| 21 | 714-0145 | Click Pin This part replaces 914-0145. Price: $4.42 |
| 22 | 714-04040 | BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 23 | 716-0106A | E-RING Price: $4.42 |
| 24 | 720-0311 | HANDLE GRIP Price: $13.26 |
| 25 | 725-04249 | SPRING SWITCH Price: $9.09 |
| 27 | 726-0214 | PUSH CAP Price: $9.11 |
| 28 | 926-0320 | INSULATOR PLATE Price: $6.01 |
| 29 | 731-06098 | HYDRO FAN Price: $17.02 |
| 30 | 731-08237 | AXLE SLEEVE .765 ID x 2.11 LG Price: $3.49 |
| 31 | 732-04225 | TORSION SPRING Price: $10.75 |
| 32 | 732-04229 | EXTENSION SPRING .75 DIA x 6.02LG Price: $19.09 |
| 33 | 732-04587 | EXTENSION SPRING .63 x 4.95 Price: $6.51 |
| 34 | 732-0716D | EXTENSION SPRING Price: $11.49 |
| 35 | 732-0729 | WIRE RING Price: $4.20 |
| 37 | 936-0329 | LOCK WASHER Price: $3.90 |
| 38 | 736-04263 | LOCK WASHER Price: $5.94 |
| 39 | 736-0430 | FLAT WASHER .350X1.59X.062 Price: $3.90 |
| 40 | 736-0607 | WASHER Price: $3.66 |
| 41 | 736-3010 | FLAT WASHER Price: $4.02 |
| 43 | 738-04278 | SHOULDER SCREW 1/4-20X.50 19"PSH Price: $5.99 |
| 44 | 738-04430 | SHOULDER SPACER 1.375 x .380 X.154 Price: $3.63 |
| 45 | 738-04483 | SHOULDER SPACER Price: $3.53 |
| 46 | 941-0225 | FLANGE BEARING Price: $6.55 |
| 47 | 741-04280 | BALL BEARING .25 x .6875 x .25 Price: $13.98 |
| 48 | 741-3065B | SPLIT HEX FLANGE BEARING .628 Price: $7.45 |
| 49 | 747-04296A | CONTROL HANDLE Price: $36.19 |
| 50 | 747-04407A | HYDRO CONTROL ROD Price: $15.64 |
| 51 | 747-05242A | BRAKE ROD Price: $15.61 |
| 52 | 747-05245 | HYDRO BYPASS ROD Price: $8.69 |
| 53 | 747-05598A-0637 | HYDRO CONTROL ROD Price: $14.87 |
| 54 | 747-05603 | HYDRO DECLUTCHING ROD Price: $10.24 |
| 55 | 948-0334 | TRANSAXLE SPACER Price: $9.87 |
| 56 | 750-04456 | SPACER:.260 x .372 x 1.420 Price: $6.20 |
| 57 | 750-05593 | SPACER Price: $3.13 |
| 58 | 750-0566A | SPACER Price: $9.17 |
| 59 | 954-04252 | V-BELT 4L x 84.17" Price: $42.39 |
| 60 | 756-04224 | FLAT IDLER PULLEY 2.75 OD Price: $24.80 |
| 61 | 756-04308 | INPUT PULLEY Price: $27.39 |
| 63 | 783-04570B-0637 | IDLER ARM Price: $17.04 |
| 64 | 783-04585A | HYDRO HANDLE BRACKET Price: $4.95 |
| 65 | 783-06551-0637 | TORQUE BRACKET Price: $11.59 |
| 66 | 783-06558-0637 | BELT SUPPORT BRACKET Price: $6.01 |
| 67 | 783-06750A-0637 | CAM BRACKET Price: $7.44 |
| 68 | 783-06756-0637 | PIVOT BRACKET Price: $8.70 |
| 69 | 783-06807A-0637 | PEDAL STOP PLATE Price: $3.86 |
