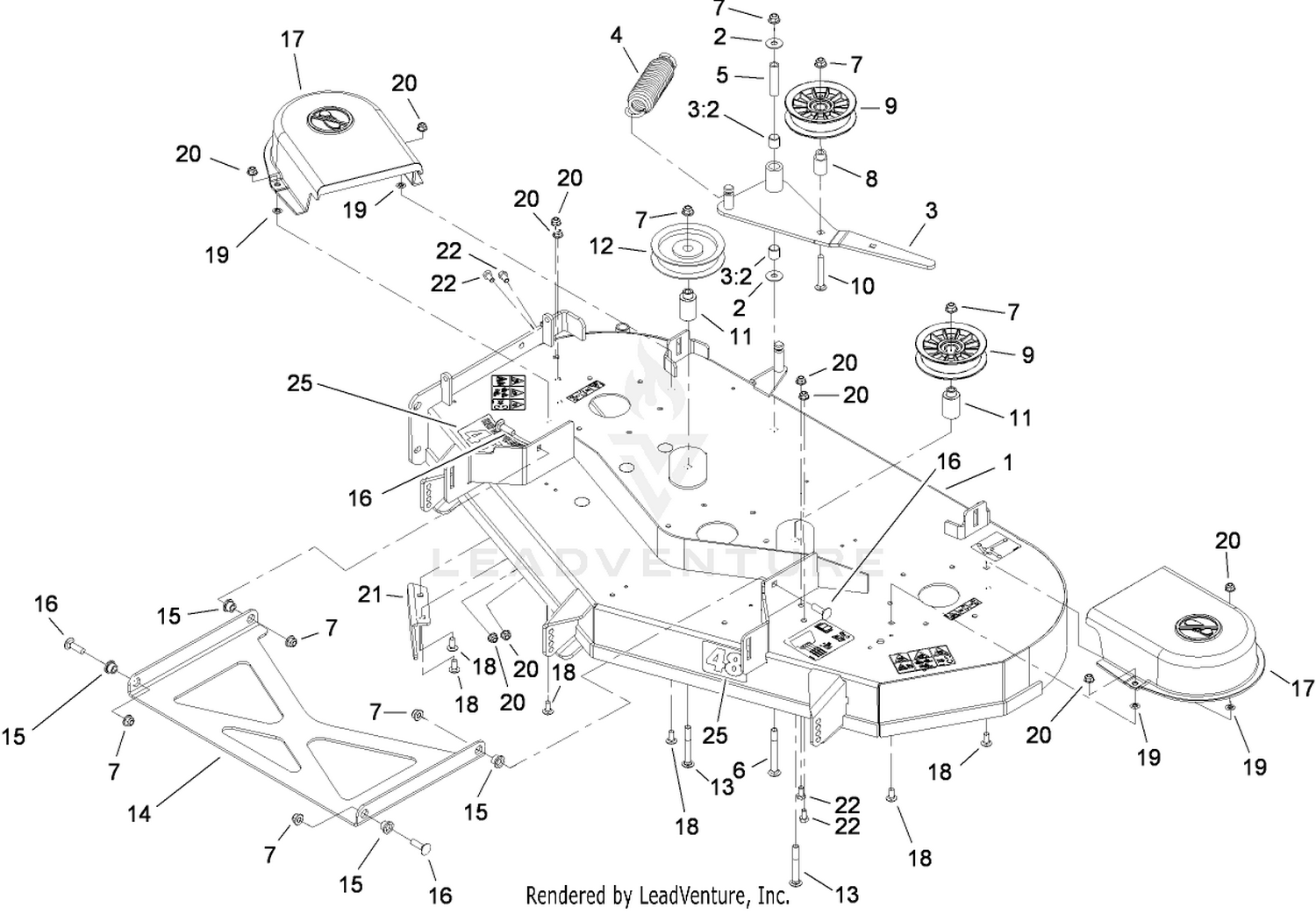

| Ref | Part Number | Description |
|---|
| 2 |
52-2860 |
WASHER Price: $0.84 |
| 3 |
109-9158 |
IDLER ARM ASM Price: $172.99 |
| 4 |
116-6317 |
SPRING-EXTENSION This part replaces 103-3330. Price: $26.99 |
| 5 |
1-603384 |
BUSHING-PIVOT, IDLER Price: $12.99 |
| 6 |
3231-11 |
SCREW-CARR Price: $4.09 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
1-413113 |
BUSHING-IDLER Price: $5.29 |
| 9 |
109-8891 |
SHEAVE AND BEARING ASM Price: $31.99 |
| 10 |
3231-31 |
SCREW-CARR Price: $1.29 |
| 11 |
109-6572 |
BUSHING-IDLER Price: $13.99 |
| 12 |
132-4718 |
PULLEY-IDLER, FLAT This part replaces 1-603843. Price: $30.99 |
| 13 |
109-6868 |
BOLT-CARRIAGE Price: $3.89 |
| 14 |
109-3723-01 |
STRUT-DECK Price: $188.99 |
| 15 |
109-8788 |
BUSHING-FLANGED Price: $6.09 |
| 16 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 17 |
109-3449 |
SHIELD-BELT Price: $31.99 |
| 18 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 19 |
109-5667 |
RING-RETAINING, BOLT Price: $5.69 |
| 20 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 21 |
109-5498-03 |
BAFFLE-DISCHARGE Price: $38.99 |
| 22 |
322-2 |
SCREW-HH Price: $0.69 |
