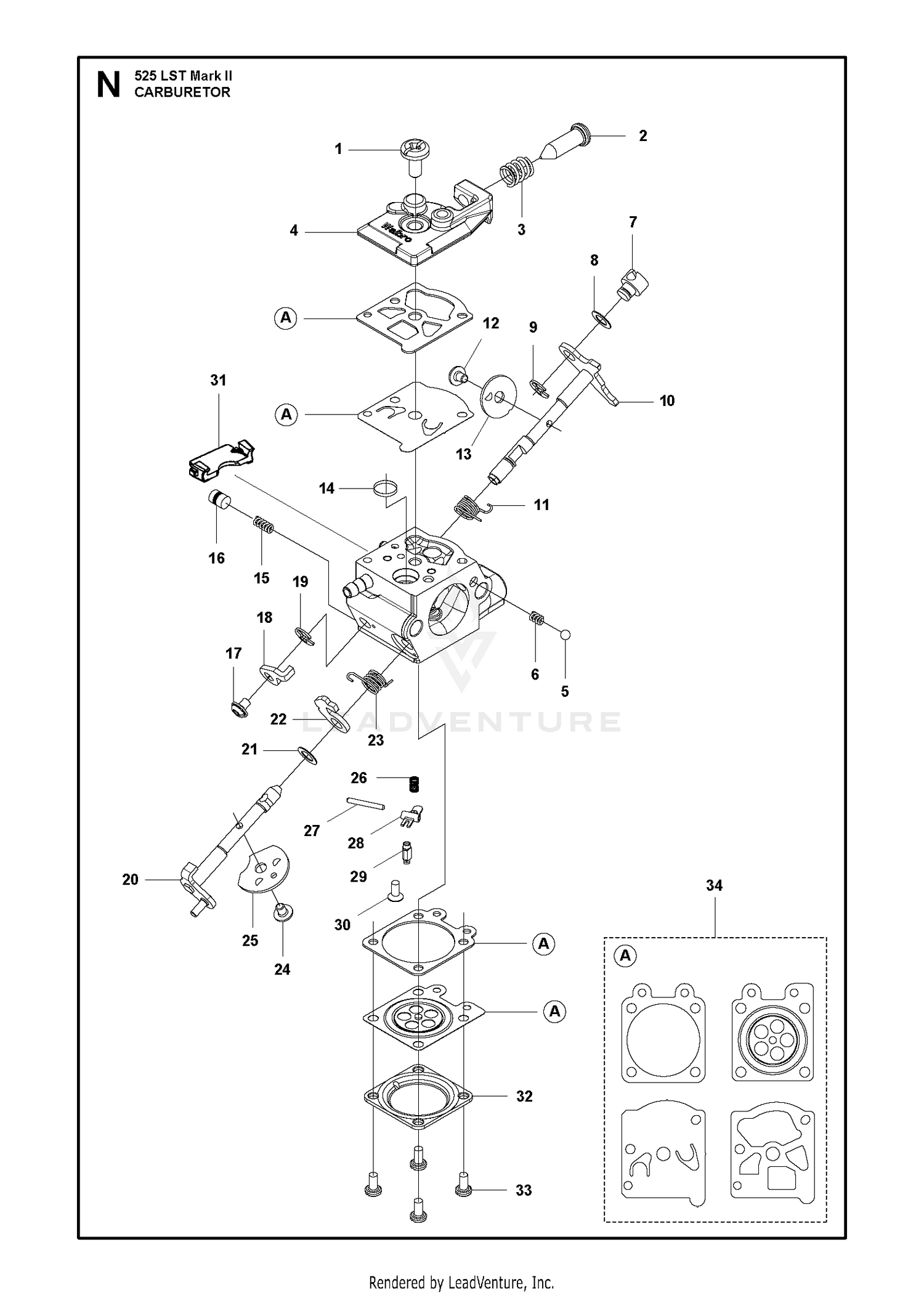

CARBURETOR
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520976301 | SCREW Price: $2.99 |
| 2 | 577815701 | SCREW, IDLE Price: $8.99 |
| 3 | 513593201 | SPRING Price: $4.99 |
| 4 | 579190601 | COVER PUMP Price: $19.99 |
| 5 | 514242601 | BALL Price: $5.99 |
| 6 | 514243301 | CHOKE SPRING Price: $5.99 |
| 7 | 513400801 | SWIVEL Price: $11.99 |
| 8 | 516524201 | WASHER Price: $2.99 |
| 10 | 579190701 | SHAFT ASSEMBLY,THROTTLE Price: $22.99 |
| 11 | 577815501 | SPRING Price: $3.99 |
| 12 | 520759801 | SCREW Price: $2.99 |
| 13 | 514251901 | VALVE, THROTTLE Price: $7.99 |
| 14 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 15 | 505057901 | SPRING Price: $2.99 |
| 16 | 521578301 | PISTON Price: $6.99 |
| 17 | 520759801 | SCREW Price: $2.99 |
| 18 | 579190801 | LEVER THROTTLE Price: $19.99 |
| 19 | 505056501 | E-RING Price: $3.99 |
| 20 | 579191001 | SHAFT ASSEMBLY,CHOKE Price: $22.99 |
| 21 | 516524201 | WASHER Price: $2.99 |
| 22 | 584901301 | LEVER Price: $19.99 |
| 23 | 579191101 | SPRING Price: $5.99 |
| 24 | 520759801 | SCREW Price: $2.99 |
| 25 | 529878001 | VALVE CHOKE Price: $8.99 |
| 26 | 578895401 | SPRING Price: $3.99 |
| 27 | 520977401 | PIN Price: $4.99 |
| 28 | 577807201 | LEVER Price: $1.99 |
| 29 | 521085401 | VALVE INLET Price: $11.99 |
| 30 | 577807101 | SCREW Price: $2.99 |
| 31 | 529878101 | PLATE Price: $9.99 |
| 32 | 514189201 | COVER Price: $6.99 |
| 33 | 520978801 | SCREW ASSY Price: $2.99 |
| 34 | 580684801 | GASKET KIT Price: $22.99 |
| 188 | 805247 | Screw Price: Call Us |
| 309 | 808106 | Motor-Starter Price: Call Us |
| 310 | 496880 | Bolt-Thru Price: Call Us |
| 510 | 496881 | Drive-Starter Price: Call Us |
| 544 | 496816 | Armature-Starter Price: Call Us |
| 801 | 496814 | Cap-Drive Price: Call Us |
| 802 | 496813 | Cap-End Price: Call Us |
