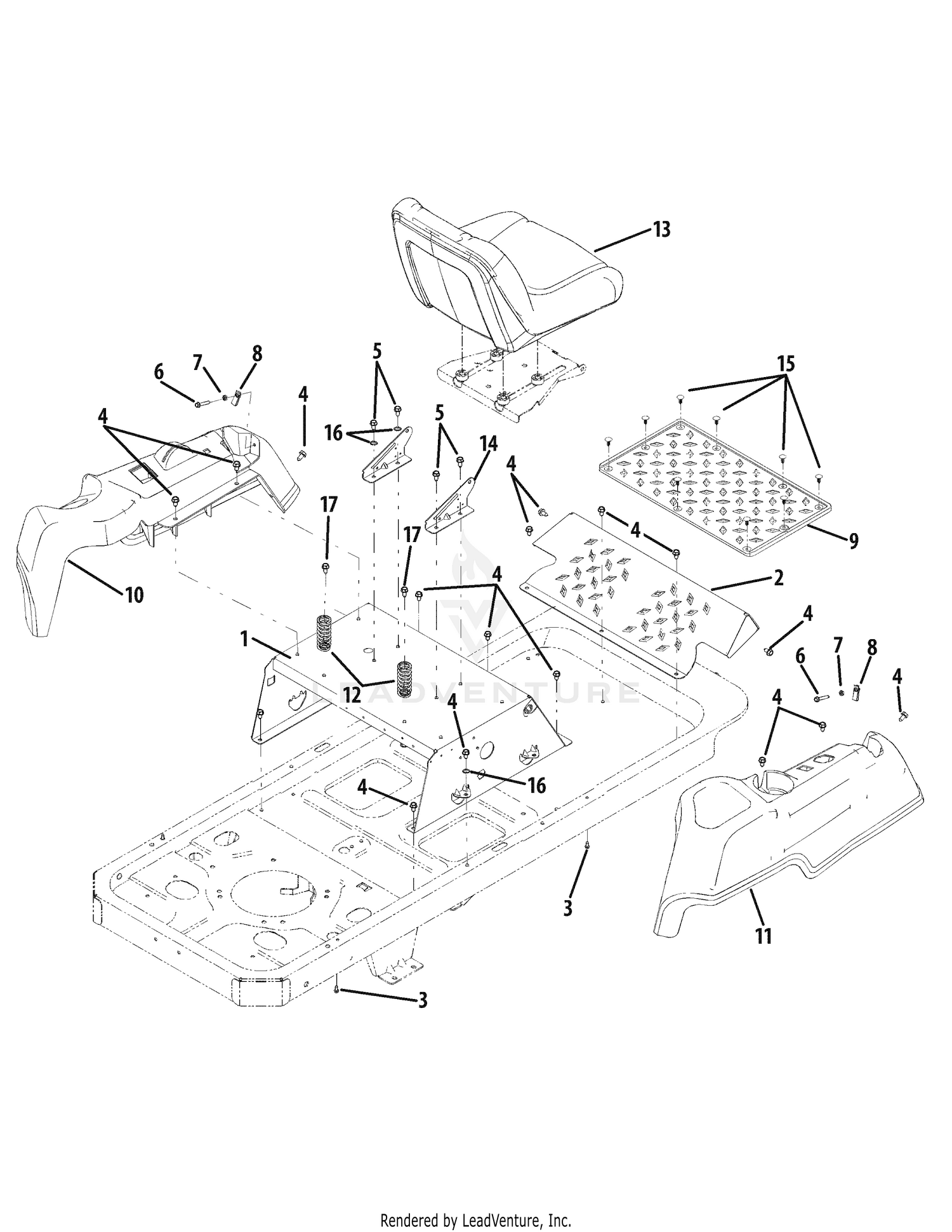

| Ref | Part Number | Description |
|---|
| 1 |
603-04447A |
SEAT RZT FRAME ASSEMBLY Not Available Price: |
| 2 |
703-05373B |
FOOT REST BRACKET Not Available Price: |
| 3 |
710-04261 |
Hex Screw, #12-16 x .50 Price: $5.45 |
| 4 |
710-0604A |
Hex Screw, 5/16-18 x .625 Price: $3.96 |
| 5 |
710-0726 |
Hex Screw, 5/16-12 x .75 Price: $3.82 |
| 6 |
710-0778 |
Hex Screw, 1/4-20 x 1.5 Price: $3.90 |
| 7 |
912-0298 |
Jam Nut, 1/4-20 This part replaces 712-0298. Price: $5.38 |
| 8 |
712-04092 |
U-Type Speed Nut, 1/4-20 Price: $5.04 |
| 9 |
735-04082C |
Foot Pad This part replaces 735-04082. Price: $44.77 |
| 10 |
731-04662E |
CONSOLE (LH) Not Available This part replaces 731-04662D. Price: |
| 11 |
731-04663D |
CONSOLE (RH) Not Available This part replaces 731-04663C. Price: |
| 12 |
732-04035 |
Compression Spring, 1.28 x 3.125 Price: $9.61 |
| 13 |
957-04010 |
HIGH BACK SEAT Not Available This part replaces 757-04010. Price: |
| 14 |
783-1489C |
Seat Mount Bracket Price: $17.99 |
| 15 |
726-3046 |
Ratchet Clip Price: $3.71 |
| 16 |
736-0148 |
External Tooth Washer, 3/8 Price: $3.19 |
