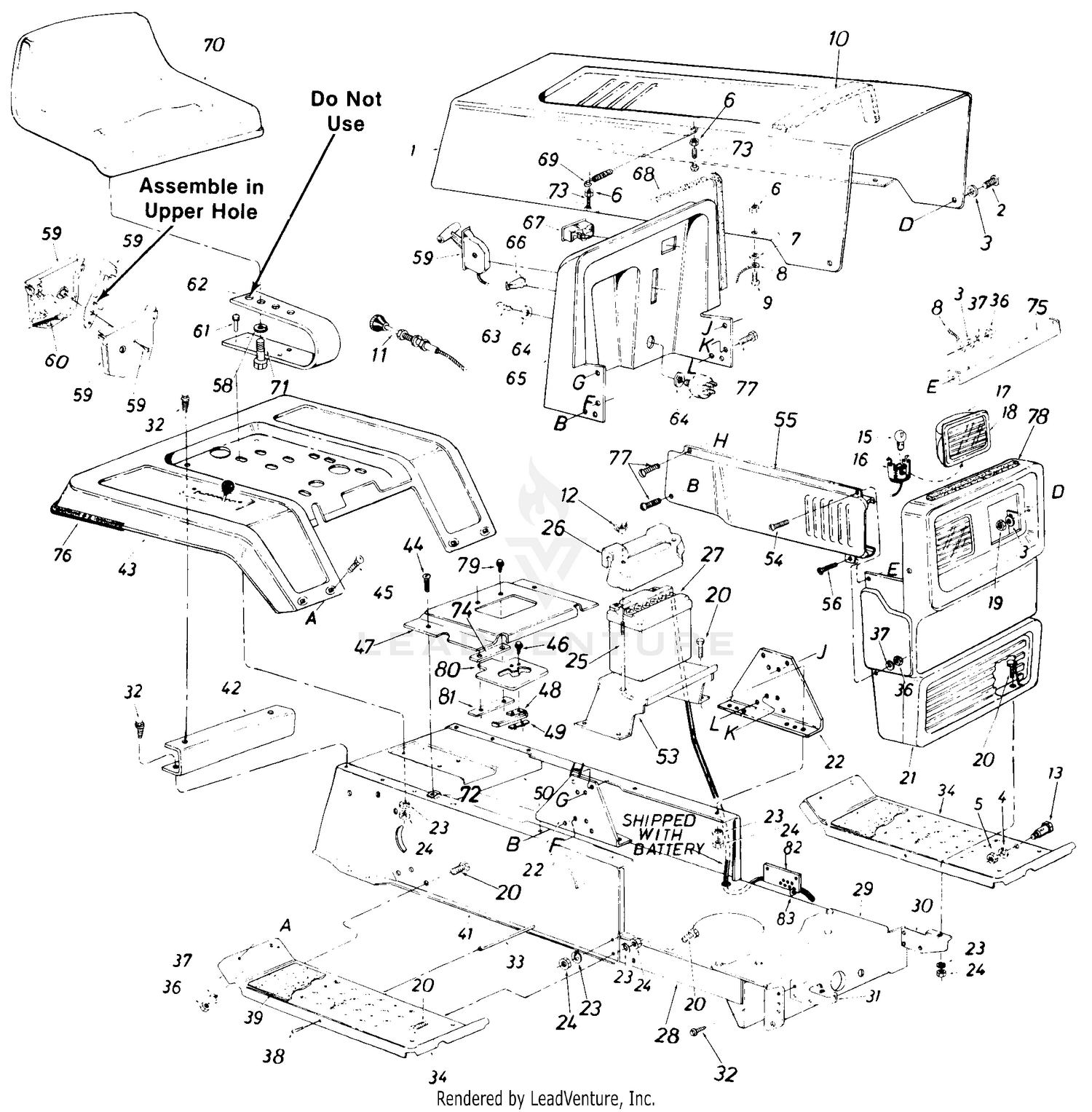

| Ref | Part Number | Description |
|---|
| 1 |
15808 |
Hood Price: Call Us |
| 2 |
710-0258 |
Hex Scr. 1/4-20 x .62" Lg. Price: $3.63 |
| 3 |
736-0463 |
Fl-Wash. .296" I.D. x .62"O.D. Price: $3.91 |
| 4 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 5 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 6 |
712-0272 |
Hex Sems Nut #10-24 Thd. Price: $3.58 |
| 7 |
736-0931 |
Fl-Wash. .203" I.D. x .41" O.D. x .040 Price: $4.02 |
| 8 |
727-0290A |
Brake Cable 11.75" Lg. This part replaces 727-0290. Price: $10.96 |
| 9 |
710-0473 |
Truss Hd. Scr. #10-24 x '/2" Lg. Price: $3.90 |
| 10 |
722-0138 |
PVC FOAM Not Available Price: |
| 11 |
746-0394 |
CHOKE CONTROL Not Available Price: |
| 12 |
912-0113 |
Wing Nut 1/4-20 Thd. This part replaces 712-0113. Price: $6.01 |
| 13 |
738-0145 |
Shld. Bolt .50" Dia. x .84 Price: $6.01 |
| 15 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 16 |
925-1058A |
HEADLAMP SOCKET Not Available This part replaces 725-0964. Price: |
| 17 |
931-0705 |
HEADLIGHT HOUSING Not Available This part replaces 731-0705. Price: |
| 18 |
931-0706 |
HEADLAMP LENS Not Available This part replaces 731-0706. Price: |
| 19 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 20 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 21 |
15804 |
Grille Price: $26.00 |
| 22 |
15818 |
DASH SUPPORT BRACKET Not Available Price: |
| 23 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 24 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 25 |
911-0222A |
HOLD DOWN BATTERY ROD Not Available This part replaces 711-0222. Price: |
| 26 |
731-0707 |
BATERY COVER Not Available Price: |
| 27 |
725-0453 |
BATTERY Not Available Price: |
| 28 |
14606 |
Lower Frame Price: Call Us |
| 29 |
14619 |
Front Pivot Brk't. Price: Call Us |
| 30 |
15821 |
BRACKET-GR Not Available Price: |
| 31 |
15822 |
BRACKET-GRILLE (RH) Not Available Price: |
| 32 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 33 |
738-0526 |
ROD-RUNNING BOARD Not Available Price: |
| 36 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 37 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 38 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 39 |
723-0360 |
FOOT PAD Not Available Price: |
| 41 |
14602G-0637 |
FRAME-SIDE (RH) Not Available This part replaces 14602. Price: |
| 42 |
15848 |
Fender Mount Brace Price: Call Us |
| 43 |
16221 |
Rear Fender Price: Call Us |
| 44 |
710-0351 |
Truss Mach. Tap Scr. #10 x .50" Lg. Price: $3.90 |
| 45 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 46 |
710-0473 |
Truss Hd. Scr. #10-24 x .50" Lg.* Price: $3.90 |
| 47 |
16188 |
Transmission Panel Price: Call Us |
| 48 |
725-0759 |
SAFETY SWITCH KIT Not Available Price: |
| 49 |
926-0320 |
Insulatop Nut Plate This part replaces 726-0222. Price: $6.01 |
| 50 |
14607 |
Hitch Plate Price: Call Us |
| 53 |
12747 |
BATTERY BRACKET Not Available Price: |
| 54 |
710-0924 |
Truss Mach. Scr. 1/4-20 x.75" Lg. This part replaces 710-0255. Price: $4.02 |
| 55 |
15814 |
SIDE COVER R.H. Not Available Price: |
| 56 |
710-0286 |
Truss Mach. Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 58 |
736-0921 |
L-Wash. 1/2" I.D. Price: $3.90 |
| 59 |
831-0796A |
Throttle Control Box Ass'y. This part replaces 831-0692. Price: $20.36 |
| 60 |
946-0500 |
Throttle Control Wire This part replaces 746-0500. Price: $13.70 |
| 61 |
710-0376 |
Hex Bolt 5/16-18 x 1.00" Lg.* Price: $3.66 |
| 62 |
732-0458 |
SEAT SPRING Not Available Price: |
| 63 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 64 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 65 |
15810 |
Dash Panel Price: Call Us |
| 66 |
925-0634 |
Light Switch This part replaces 725-0634. Price: $15.62 |
| 67 |
925-0925 |
Ammeter Not Available This part replaces 725-0925. Price: |
| 68 |
731-0511 |
Trim Strip-27" Price: $3.29 |
| 69 |
732-0462 |
EXTENSION SPRING Not Available Price: |
| 70 |
757-0309 |
Seat Ass'y. Price: Call Us |
| 71 |
710-3131 |
Hex Bolt 1/2-13 x 1.00" Lg. This part replaces 710-0493. Price: $4.69 |
| 72 |
726-0139 |
Speed Nut #10Z Price: $5.94 |
| 73 |
910-0749 |
CHAIN ADJUSTMENT BOLT Not Available This part replaces 710-0749. Price: |
| 74 |
16407 |
Spacer Plate Price: Call Us |
| 75 |
15931 |
TIE-STRAP Not Available Price: |
| 76 |
731-0511 |
Trim Strip-81" Price: $3.29 |
| 77 |
710-0642 |
Hex Wash. Hd. Tap Scr. 1/4 x.75" Lg. Price: $4.05 |
| 78 |
722-0155 |
STRIP-FOAM-3/8X3/4X14 Not Available Price: |
| 79 |
710-0924 |
Truss Mach. Scr. 1/4-20 x .75" Lg. Price: $4.02 |
| 80 |
16408 |
Gear Selection Plate Price: Call Us |
| 81 |
16190 |
Clamping Plate Price: Call Us |
| 82 |
16371 |
Brake Cable Bracket Price: Call Us |
| 14603 |
L.H. |
SIDE FRAME Not Available Price: 14603 |
