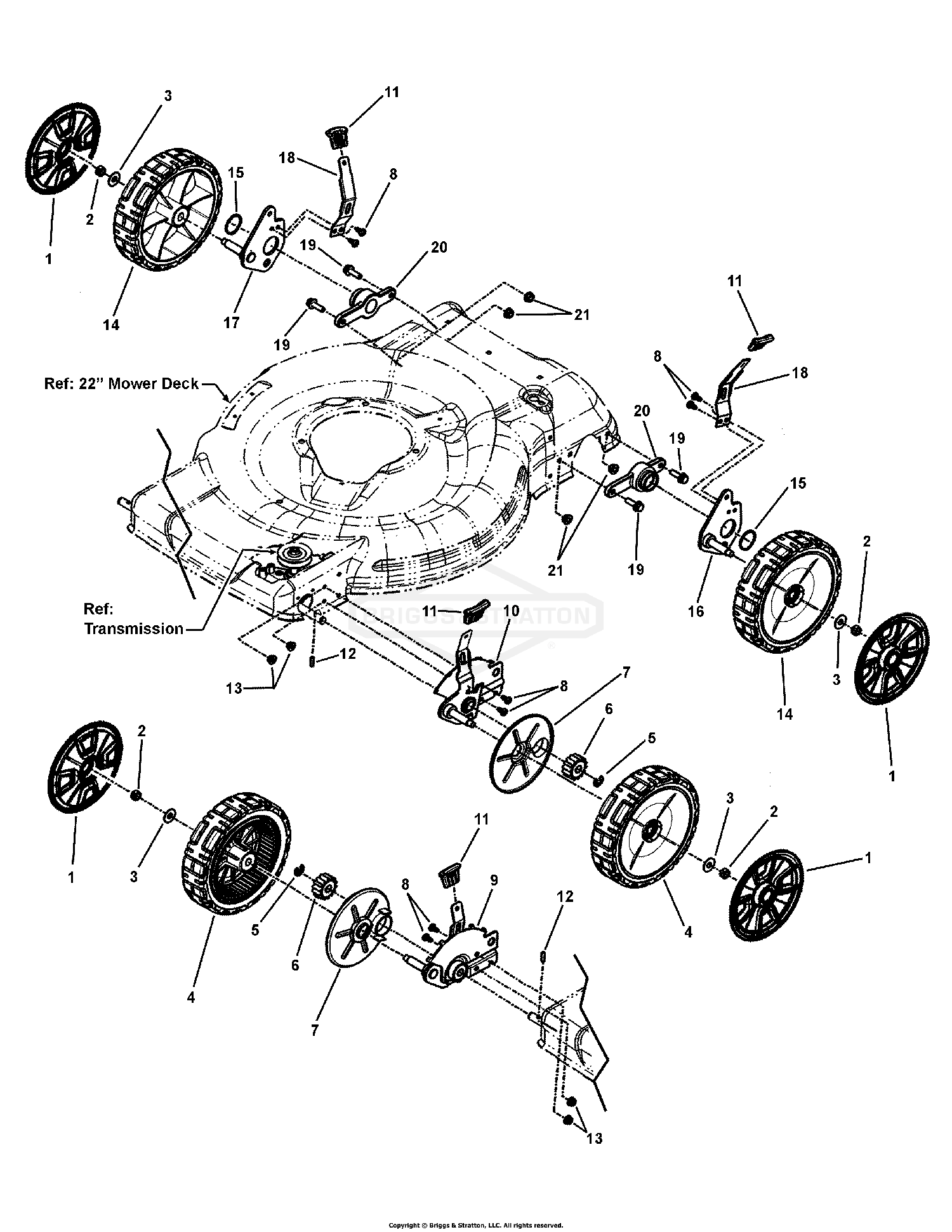

Wheels Group

Wheels Group

Parts (18)

RefPart NumberDescription
2 703347 NUT, 3/8-16 This part replaces 7091585. Price: $4.26
3 722604 WASHER, 1" O.D. x .387 I.D., Flat Price: Call Us
4 7502545YP ASSY,8X2 DRIVE W/BUSH This part replaces 7502545. Price: $35.15
6 7101207YP GEAR, PINION, 22 WBM, FWD This part replaces 7101207. Price: $7.47
7 7101402YP SHIELD, DUST, 22 WBM, FWD This part replaces 7101402. Price: $6.68
8 703961 SCREW, 1/4-20 X .625, Self-Tapping, Zinc/Clear This part replaces 7900067. Price: $3.61
9 7600104YP ASSEMBLY, HOC, RF, Propelled This part replaces 7600104. Price: $53.99
10 7600105YP ASSEMBLY, HOC, LF This part replaces 7600105. Price: $77.11
11 7103793YP GRIP, HT LATCH, BLACK This part replaces 7103793. Price: $3.73
12 7101270YP PIN, DRIVE, 22 WBM, FWD This part replaces 7101270. Price: $4.59
13 703233 NUT, 1/4-20, GR5 This part replaces 7091584. Price: $3.94
14 7502544YP ASSY,8X2 IDLE W/BUSHI This part replaces 7502544. Price: $34.02
15 7900010YP SNAP RING, 1-3/8, HD This part replaces 7900010. Price: $3.52
16 7501518YP WELDMENT, Axle Plate, LR, 8" This part replaces 7501518. Price: $11.59
17 7501516YP WELDMENT, Axle Plate, RR, 8" This part replaces 7501516. Price: $11.39
18 7103550YP LEVER, 4-point HOC This part replaces 7103550. Price: $7.37
19 703410 BOLT,5/16-18X1 This part replaces 7091591. Price: $3.61
20 7103290YP HOLDER, Bearing, Rear Wheel Drive This part replaces 7103290. Price: $11.65
