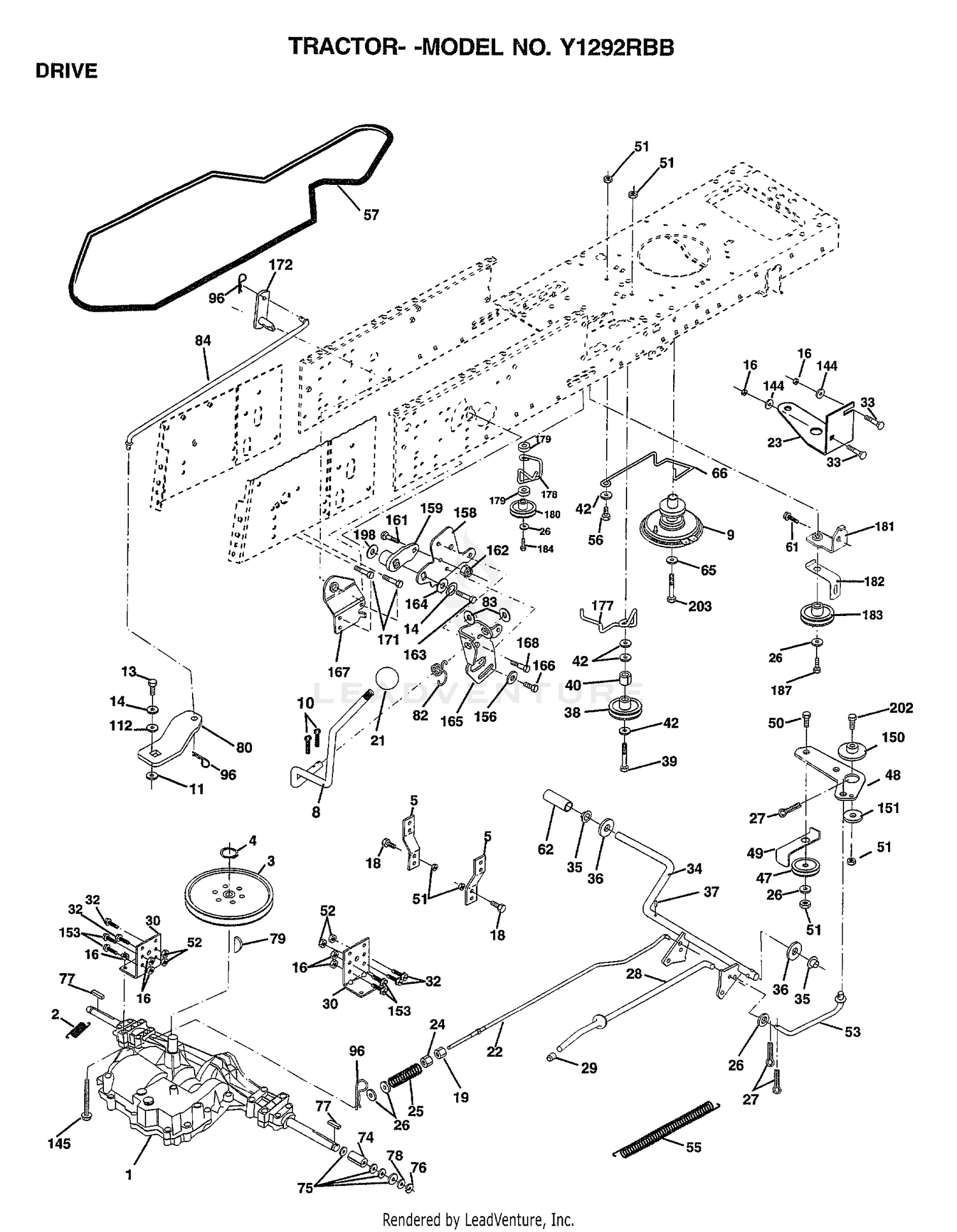

| Ref | Part Number | Description |
|---|
| 1 |
106-7050 |
DISCONTINUED Price: Call Us |
| 1 |
SUPPLIER |
CHECK WITH SUPPLIER Price: Call Us |
| 2 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 3 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 4 |
12000028 |
SUB= 2267J Price: Call Us |
| 4 |
323-7 |
SCREW-HH Price: $0.65 |
| 5 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 6 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 7 |
105-7914-03 |
BRACKET-ENGINE Price: $93.09 |
| 8 |
104-3762-03 |
BRACKET-ENGINE, FRONT (LH) Price: $59.24 |
| 8 |
165619 |
ROD.SHIFT.FENDER.ADJ.LT.CRD Price: Call Us |
| 9 |
170163 |
CLUTCH ASM NORAM Price: Call Us |
| 9 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 10 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 11 |
33114-020 |
SCREW-HH Price: $0.28 |
| 12 |
104-3764-03 |
REAR ENGINE PLATE ASM Price: $72.60 |
| 13 |
325-5 |
SCREW-HH Price: $1.20 |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 14 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 15 |
104-3778-03 |
PLATE-THROTTLE Price: $11.89 |
| 16 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 16 |
73800500 |
NUT Price: Call Us |
| 17 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 18 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 19 |
48-7890 |
NUT-HEX Price: $0.25 |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
136-3817 |
FAN & SPACER ASM This part replaces 105-0129. Price: $277.06 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 21 |
74-3650 |
FAN Price: $269.64 |
| 22 |
165811 |
ROD.BRAKE.PMST.CRD Price: Call Us |
| 22 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 23 |
105-0100 |
HOUSING-FLYWHEEL Price: $1,070.10 |
| 23 |
170017 |
BRACKET CLUTCH Price: Call Us |
| 24 |
110-9729 |
COUPLING-FLYWHEEL This part replaces 105-0101. Price: $505.85 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 25 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 26 |
33114-016 |
SCREW-HH Price: $0.27 |
| 27 |
33114-030 |
SCREW-HH Price: $0.50 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 28 |
87-3700 |
SCREW-CAP, HH Price: $1.29 |
| 29 |
124236X |
CAP Price: Call Us |
| 29 |
99-6058 |
SCREW-CAP Price: $1.09 |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 30 |
57-6390 |
NUT-JAM Price: $0.89 |
| 31 |
106-5972 |
HARNESS-WIRE Price: $242.11 |
| 32 |
74760512 |
BOLT Price: Call Us |
| 32 |
98-9346 |
SENDER-TEMPERATURE Price: $74.58 |
| 33 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 33 |
72140506 |
BOLT Price: Call Us |
| 34 |
104-5222 |
STUD Price: $7.53 |
| 34 |
165496 |
SHAFT.ASM.PEDAL.FOOT.CRD Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 35 |
33013-00 |
NUT-HEX Price: $0.25 |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 36 |
3253-18 |
WASHER-LOCK Price: $0.68 |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
165936 |
PULLEY.FLAT Price: Call Us |
| 38 |
43-0090 |
SCREW-HH Price: $8.05 |
| 39 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 42 |
19131312 |
WASHER Price: Call Us |
| 42 |
33114-030 |
SCREW-HH Price: $0.50 |
| 43 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 44 |
25-8640 |
SCREW-HH Price: $1.09 |
| 45 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 46 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 47 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 48 |
154407 |
BELLCRANK.CLUTCH Price: Call Us |
| 48 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 49 |
323-14 |
SCREW-HH Price: $1.34 |
| 50 |
66-9300 |
SCREW-HHF Price: $4.69 |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
32128-21 |
NUT-HF Price: $0.39 |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 61 |
17060612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 74 |
137057 |
SPACER AXLE Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 79 |
2228M |
SUB= 2228M1 Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 84 |
165621 |
LINK.SHIFT.CRD Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 112 |
19091210 |
WASHER LT Price: Call Us |
| 145 |
74490540 |
BOLT.HEX.FLGHD Price: Call Us |
| 150 |
165850 |
BUSHING.BELLCRANK.GRD.DR Price: Call Us |
| 151 |
19133210 |
WASHER Price: Call Us |
| 153 |
74760516 |
SUB= 77394 Price: Call Us |
| 156 |
166002 |
WASHER.SRRTD.5/16 Price: Call Us |
| 158 |
165589 |
BRKT.SHIFT.MOUNT Price: Call Us |
| 159 |
165494 |
HUB.SHIFT Price: Call Us |
| 161 |
72140406 |
BOLT T Price: Call Us |
| 162 |
73680400 |
SUB= 73690400 Price: Call Us |
| 163 |
74780416 |
NLA Price: Call Us |
| 164 |
19091010 |
WASHER.5/8X.281X10GA Price: Call Us |
| 165 |
165623 |
BRKT.PIVOT.LEVER Price: Call Us |
| 166 |
166880 |
SCREW.5/16-18X5/8 Price: Call Us |
| 167 |
165588 |
BRKT.SUPT.SHIFT.CRD Price: Call Us |
| 168 |
165492 |
BOLT.SHOULDER.5/16-18X.561 Price: Call Us |
| 171 |
17490608 |
SCREW LT Price: Call Us |
| 172 |
165635 |
SHAFT.ASM.SHIFT.FRT.CRD Price: Call Us |
| 177 |
165932 |
KEEPOER.FLAT.IDLER Price: Call Us |
| 178 |
165933 |
KEEPER.BELT.IDLER Price: Call Us |
| 179 |
120958X |
WASHER Price: Call Us |
| 180 |
165630 |
PULLEY.FLAT.IDLER Price: Call Us |
| 181 |
165797 |
BRKT.IDLER.GRD.DR.CRD Price: Call Us |
| 183 |
165626 |
PULLEY.V-IDLER Price: Call Us |
| 184 |
17490644 |
SCREW.HXWSH.3/8 Price: Call Us |
| 187 |
17490620 |
SCREW Price: Call Us |
| 198 |
169593 |
WASHER NYLINER Price: Call Us |
| 202 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
