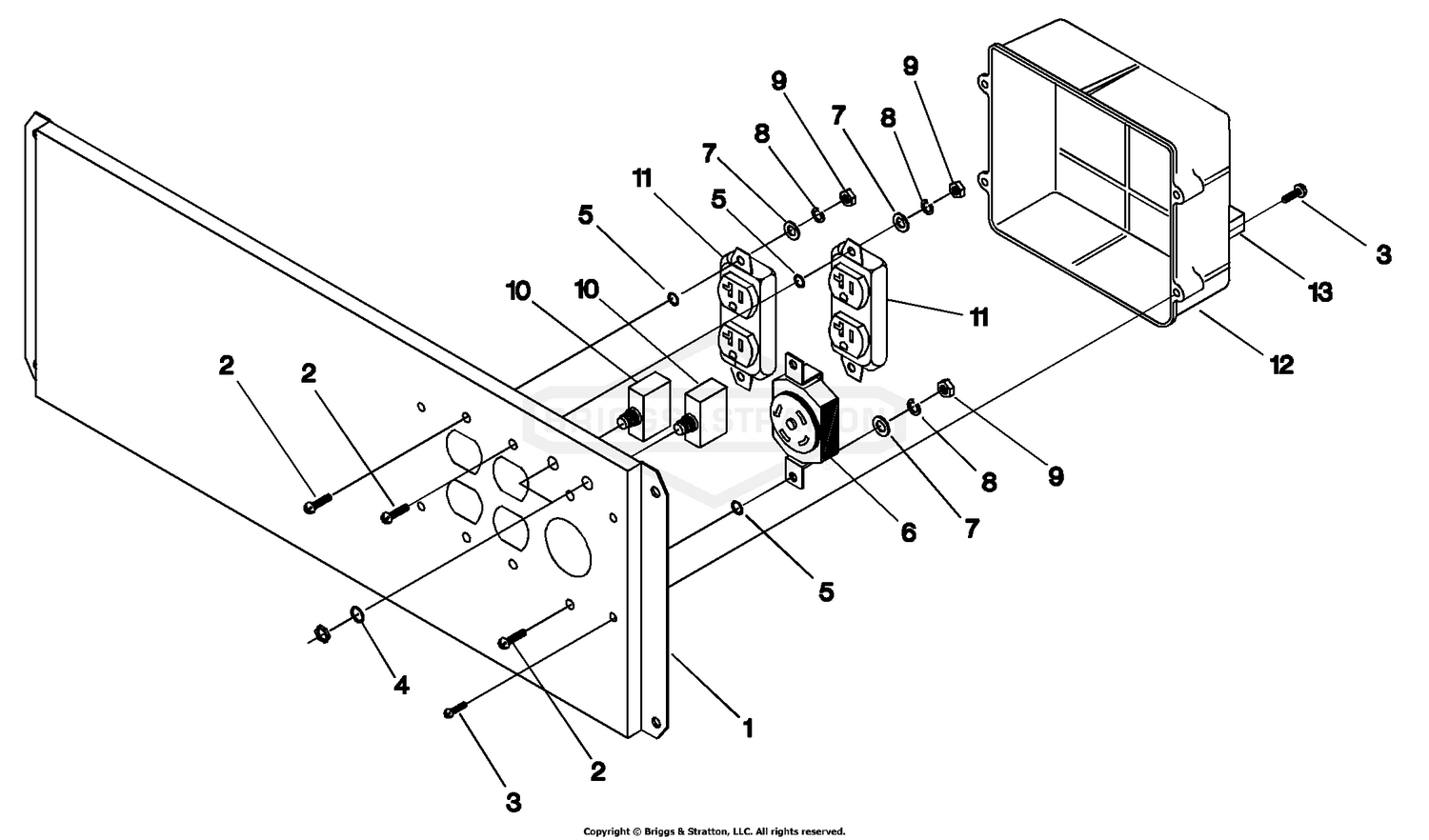

Control Panel

Control Panel

Parts (11)

RefPart NumberDescription
1 B189015 PANEL, Control Price: Call Us
2 75475 SCREW, M4 - 0.7 x 10mm Price: $24.95
3 82308GS SCREW, Self Tapping, STC 3 x 18 This part replaces 82308. Price: $2.59
4 82881GS WASHER, 7/16" Int Lock This part replaces 82881. Price: Call Us
5 5023365YP TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73
6 43437 OUTLET, 120/240 Locking, 30 Amp Price: Call Us
7 38150GS WASHER This part replaces 38150. Price: $2.49
9 51715GS NUT, M4-0.7 Hex This part replaces 51715. Price: $2.30
10 209872GS BREAKER-CIRCUIT 20A This part replaces 75207. Price: $9.29
11 68759GS OUTLET, 20A,120V This part replaces 68759. Price: $23.24
12 81919GS PANEL, Control, Back, Plastic This part replaces 81919. Price: $109.99
