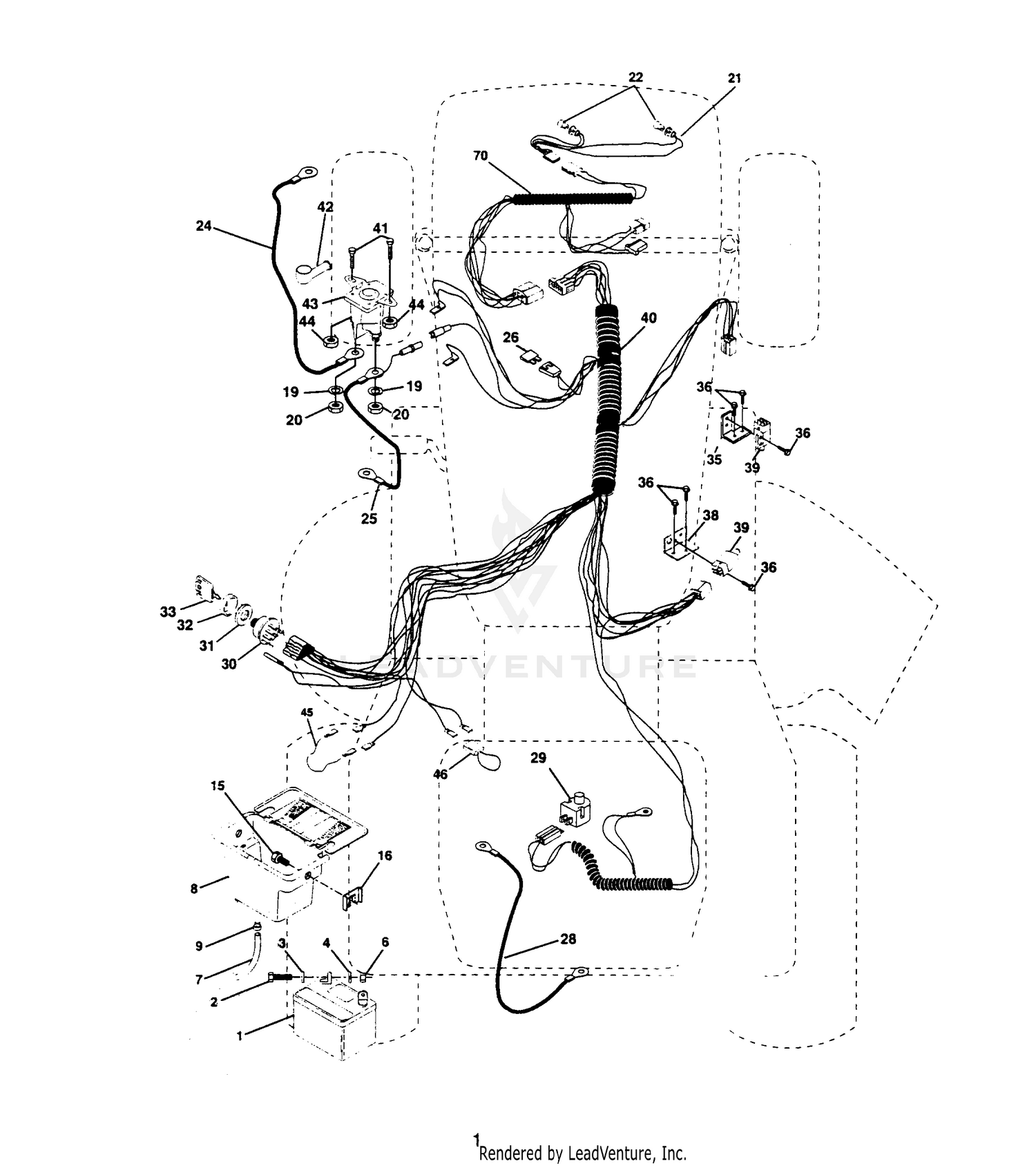

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144925. Price: $138.99 |
| 2 |
874760412 |
Bolt Hex Hd 1/4-20unc X 3/4 Price: $3.99 |
| 3 |
819091016 |
Washer 9/32 X 5/8 X 16 Ga. Price: $2.99 |
| 4 |
810040400 |
Washer Lock Hvy Helical 1/4 Price: $3.99 |
| 5 |
532121264 |
Caps Battery 20/25/30 AMP Price: $10.91 |
| 6 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 7 |
532109238 |
Tube Plastic 12" Price: $5.46 |
| 8 |
532404349 |
KIT.BOX.BATTERY.REAR.BOOT.POS This part replaces 532144940. Price: $22.99 |
| 9 |
532109596 |
Clamp Hose Olive Price: $2.99 |
| 10 |
108-1402 |
GEAR CASE ASM Price: $859.88 |
| 15 |
532144935 |
Screw Cap Hex Nylon 3/8-16 x 1 Price: Call Us |
| 16 |
532145355 |
Nut, Nylon 3/8-16 Price: Call Us |
| 19 |
810040400 |
WASHER, LOCK 1/4 This part replaces 810090400. Price: $3.99 |
| 20 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $3.99 |
| 21 |
532136850 |
Harness Asm Light W/4152j Price: $15.99 |
| 22 |
532004152 |
Bulb Light #1156 Price: $2.99 |
| 23 |
108-3841 |
FILTER-OIL This part replaces 104-5167. Price: $10.81 |
| 23 |
811150400 |
Washer Lock Internal Tooth 1/4 Price: $2.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $6.99 |
| 25 |
532146147 |
Cable Battery 6 Ga 44" red Price: $19.99 |
| 26 |
532108824 |
Fuse 30 AMP Auto Green Price: $3.99 |
| 28 |
532004207 |
This part replaces 532124773. Price: $4.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $7.99 |
| 30 |
532140301 |
Switch Ign 4 pos w/lights Price: $22.99 |
| 30 |
98-7487 |
PLUG Price: $3.18 |
| 31 |
532124211 |
Nut Ignition Price: $3.99 |
| 32 |
532141226 |
Cover Sw Ignition Price: $3.99 |
| 33 |
532122147 |
Key Ign Modleded Generic Price: $4.99 |
| 35 |
532108236 |
Bracket Switch Clutch Price: $2.99 |
| 36 |
817021008 |
Screw Tap Hex #10-24unc X 1/2 Price: $1.99 |
| 38 |
532140336 |
Bracket, Switch, Interlock Price: $2.42 |
| 39 |
539101080 |
SWITCH.N.C *SUBS/1* This part replaces 532109553. Price: $4.99 |
| 40 |
532146058 |
Harness Chassis LT PL Mech Price: Call Us |
| 41 |
871110412 |
Bolt Blk Fin Hex 1/4 - 20 x 3/4 Price: $3.99 |
| 42 |
532154336 |
Cover, Terminal Red This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $14.99 |
| 44 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 45 |
532140844 |
Adapter Ammeter Rectangular Price: $3.99 |
| 46 |
532141940 |
Protection Wire Loop Price: $3.99 |
| 50 |
98-9544 |
SPRING Price: $0.94 |
| 60 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 70 |
98-9380 |
BALL Price: $0.84 |
| 80 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 85 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 90 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 100 |
107-9071 |
SCREW Price: $0.36 |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 120 |
100-1765 |
BOLT This part replaces 107-9073. Price: $1.59 |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 180 |
98-7572 |
NUT Price: $0.32 |
| 190 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 200 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 230 |
105-3710 |
STUD Price: $1.16 |
