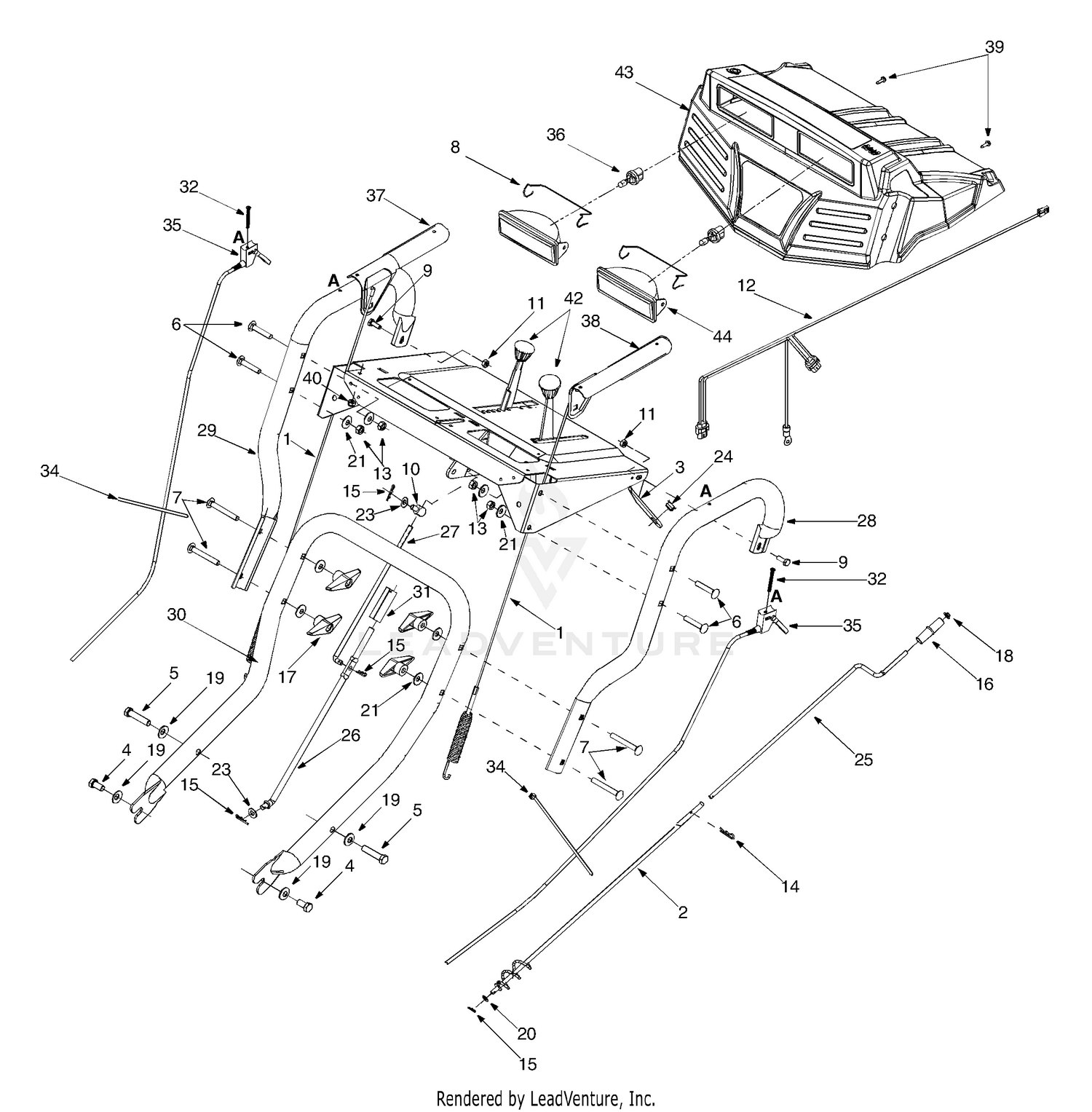

| Ref | Part Number | Description |
|---|
| 1 |
646-0012 |
Auger/Drive Cable Assembly Price: $32.48 |
| 2 |
684-0053B-0637 |
CHUTE CRANK ASSEMBLY(POWDER BLACK) Not Available This part replaces 684-0053B. Price: |
| 3 |
705-5266-0637 |
Chute Crank Bracket This part replaces 705-5266. Price: $13.37 |
| 4 |
710-1879 |
Hex Screw, 3/8-16 x.88" Not Available Price: |
| 5 |
710-04682 |
SCREW 3/8-16 x 2.00 GR5 Not Available This part replaces 710-1878. Price: |
| 6 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 7 |
710-0572 |
Carriage Bolt 5/16-18 x 2.5" Price: $3.75 |
| 8 |
747-1136 |
Lamp Retainer Price: $10.32 |
| 9 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 10 |
911-0677 |
Ferrule This part replaces 711-0677. Price: $15.59 |
| 11 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 12 |
629-04010A |
DUAL HARNESS Not Available This part replaces 629-04010. Price: |
| 13 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 14 |
714-0101 |
Hairpin Clip Price: $4.13 |
| 15 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 16 |
720-0201A |
Chute Directional Control Knob Price: $9.62 |
| 17 |
720-0284 |
Knob Price: $4.08 |
| 18 |
726-0100 |
Push Cap Price: $3.75 |
| 19 |
736-0105 |
Bell Washer Price: $3.96 |
| 20 |
736-0185 |
Flat Washer Price: $3.43 |
| 21 |
736-0242 |
Belleville Washer Price: $3.75 |
| 23 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 24 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 25 |
747-0624-0637 |
Upper Chute Crank Rod This part replaces 747-0624. Price: $21.14 |
| 26 |
747-0983A |
Lower Shift Rod Price: $39.81 |
| 27 |
747-0997 |
Upper Shift Rod Price: $61.20 |
| 28 |
749-0989A-0637 |
UPPER HANDLE (LH) (POWDER BLACK) Not Available This part replaces 749-0989A. Price: |
| 29 |
749-0990A |
Upper Handle RH Not Available Price: |
| 30 |
749-0991 |
LOWER HANDLE Not Available Price: |
| 31 |
950-0963 |
Shift Rod Connector This part replaces 750-0963. Price: $30.48 |
| 32 |
710-1625 |
Oval C-Sunk Screw Price: $6.01 |
| 34 |
725-0157 |
Cable Tie Price: $3.46 |
| 35 |
746-0950A |
Trigger Control Price: $19.58 |
| 36 |
925-1658 |
Lamp This part replaces 725-1658. Price: $52.74 |
| 37 |
705-5218 |
CLUTCH HANDLE(RH) Not Available Price: |
| 38 |
705-5219 |
CLUTCH HANDLE(LH) Not Available Price: |
| 39 |
710-04669 |
Screw, #10-16 x .625 This part replaces 7101003. Price: $2.98 |
| 40 |
712-0271 |
Hex Sems Nut Price: $3.78 |
| 42 |
920-0232 |
SHIFT KNOB This part replaces 720-0232. Price: $9.11 |
| 43 |
731-04069 |
HANDLE PANEL STYLE 7 Not Available Price: |
