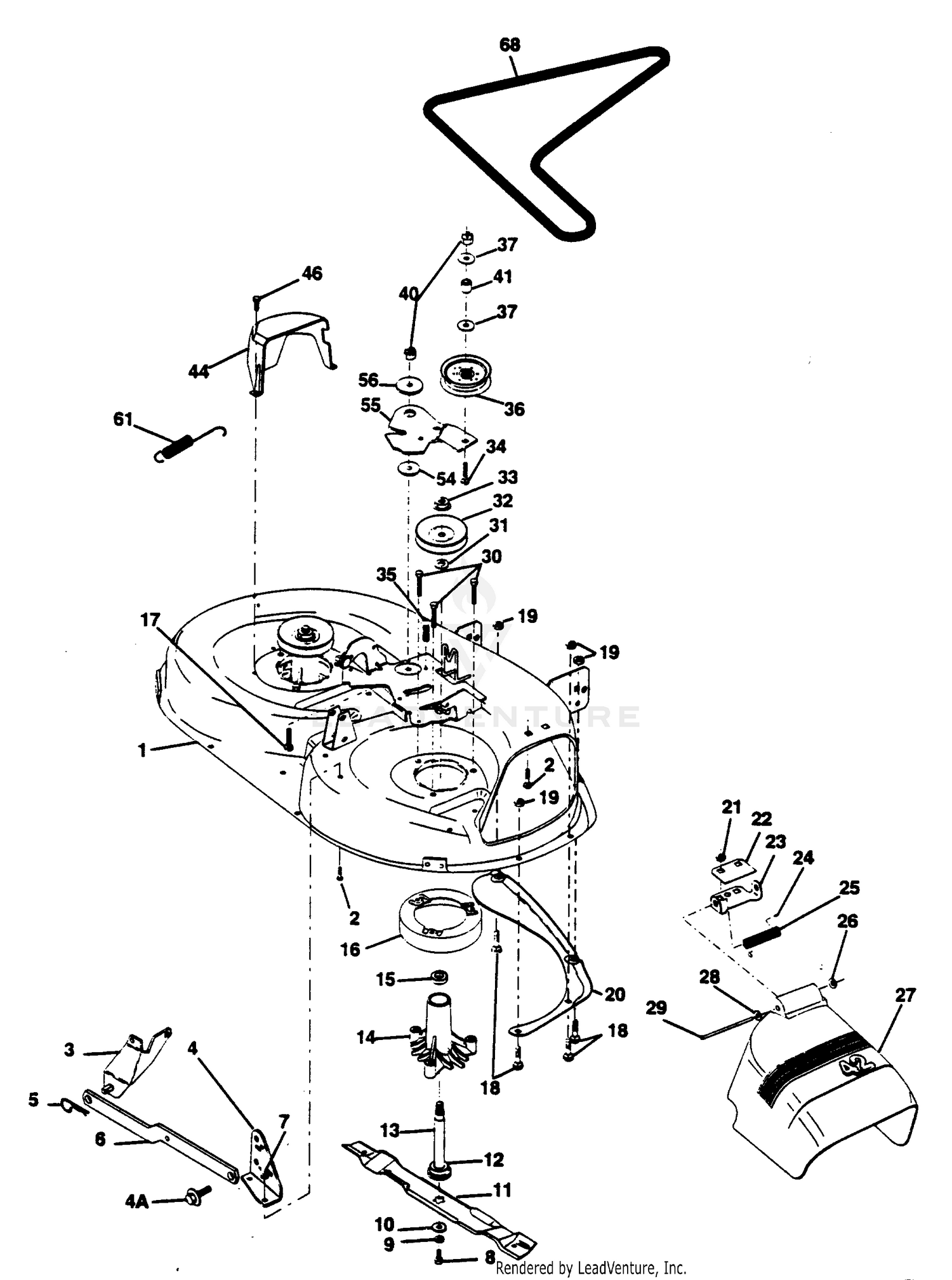

| Ref | Part Number | Description |
|---|
| 1 |
532140081 |
Deck Asm Mower 42" Price: $142.99 |
| 2 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 3 |
532138017 |
Bracket Asm Fr Sway Bar Price: $7.99 |
| 4 |
532138440 |
Bracket Asm Deck Sway Bar 42" Price: $3.99 |
| 4a |
532132827 |
Bolt Shoulder 5/16 - 18 Price: $2.99 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 6 |
532178024 |
Bar Sway Deck This part replaces 532130832. Price: $5.99 |
| 7 |
873800500 |
Locknut Hex W/Ins 5/16 - 18 Price: $2.69 |
| 8 |
532850857 |
Bolt 3/8-24x1 25 Gr8 Patched Price: $1.99 |
| 9 |
539990118 |
WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 10 |
532140296 |
Washer Hard Blade Mower Vented Price: $2.99 |
| 11 |
5321341-49 |
Blade Price: $12.99 |
| 12 |
738220419 |
BALL-BEARING 6204-2RS This part replaces 532129895. Price: $14.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 14 |
532128774 |
Housing Mandrel Vented(machd) Price: $22.99 |
| 15 |
532110485 |
Bearing Ball Mandrel Price: $7.99 |
| 16 |
532174493 |
Stripper, Mower This part replaces 532140329. Price: $3.99 |
| 17 |
872140614 |
BOLT This part replaces 872110610. Price: $2.99 |
| 18 |
872140505 |
Bolt Rdhd Sqnk 5/16-18 X 5/8 Price: $2.69 |
| 19 |
873800500 |
Locknut-hex W/ins 5/16-18unc P Price: $2.69 |
| 20 |
532159770 |
BAFFLE.VORTEX This part replaces 532136888. Price: $12.99 |
| 21 |
873800500 |
Nut Lock Hx w/Ins 5/16-18 Price: $2.69 |
| 22 |
532177563 |
Bracket Deflector Mower 42" This part replaces 532134753. Price: $2.99 |
| 23 |
532177563 |
Bracket Deflector Mower 42" This part replaces 532131267. Price: $2.99 |
| 24 |
532105304 |
Cap Sleeve 80x 112 Blk Mower Price: $2.99 |
| 25 |
532123713 |
Spring Torsion Deflector 2 52 Price: $3.99 |
| 26 |
532110452 |
Nut Push Phos & Oil Price: $1.99 |
| 27 |
532130968 |
Shield Deflector Mower 42" Blk" Price: $22.99 |
| 28 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111016. Price: $2.02 |
| 29 |
532131491 |
Rod Hinge 42" 6 75 Wlg Price: $1.99 |
| 30 |
532173984 |
BOLT, MANDREL This part replaces 532138776. Price: $2.99 |
| 31 |
532187690 |
SPACER, MANDREL This part replaces 532129963. Price: $1.99 |
| 32 |
532173436 |
Pulley, Mandrel This part replaces 532129861. Price: $7.99 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $4.99 |
| 34 |
872110622 |
Bolt Rdhd 3/8-16uncx1-3/4 Gr5 Price: $3.99 |
| 35 |
532133835 |
Fastner Christmas Tree Price: $3.99 |
| 36 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 37 |
819131316 |
Washer 13/32 X 13/16 X 16 Ga Price: $2.99 |
| 40 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 41 |
532132823 |
Spacer Spring Stop Idler Price: $4.99 |
| 44 |
532140088 |
Guard Mandrel LH Black Price: $14.99 |
| 46 |
532137729 |
Screw Hex Thd Cut 1/4-20x5/8 T Price: $2.49 |
| 54 |
532178515 |
Washer Hardened This part replaces 532133943. Price: $2.99 |
| 55 |
532151785 |
CAM ROLLER KIT This part replaces 532140084. Price: $25.99 |
| 56 |
532165723 |
Spacer Retainer This part replaces 532122052. Price: $2.99 |
| 61 |
532131950 |
Spring Ext. Elect. Clutch 38/42" Price: $4.99 |
| 68 |
532140067 |
V-Belt Mower 42" 82 625 Price: $29.99 |
