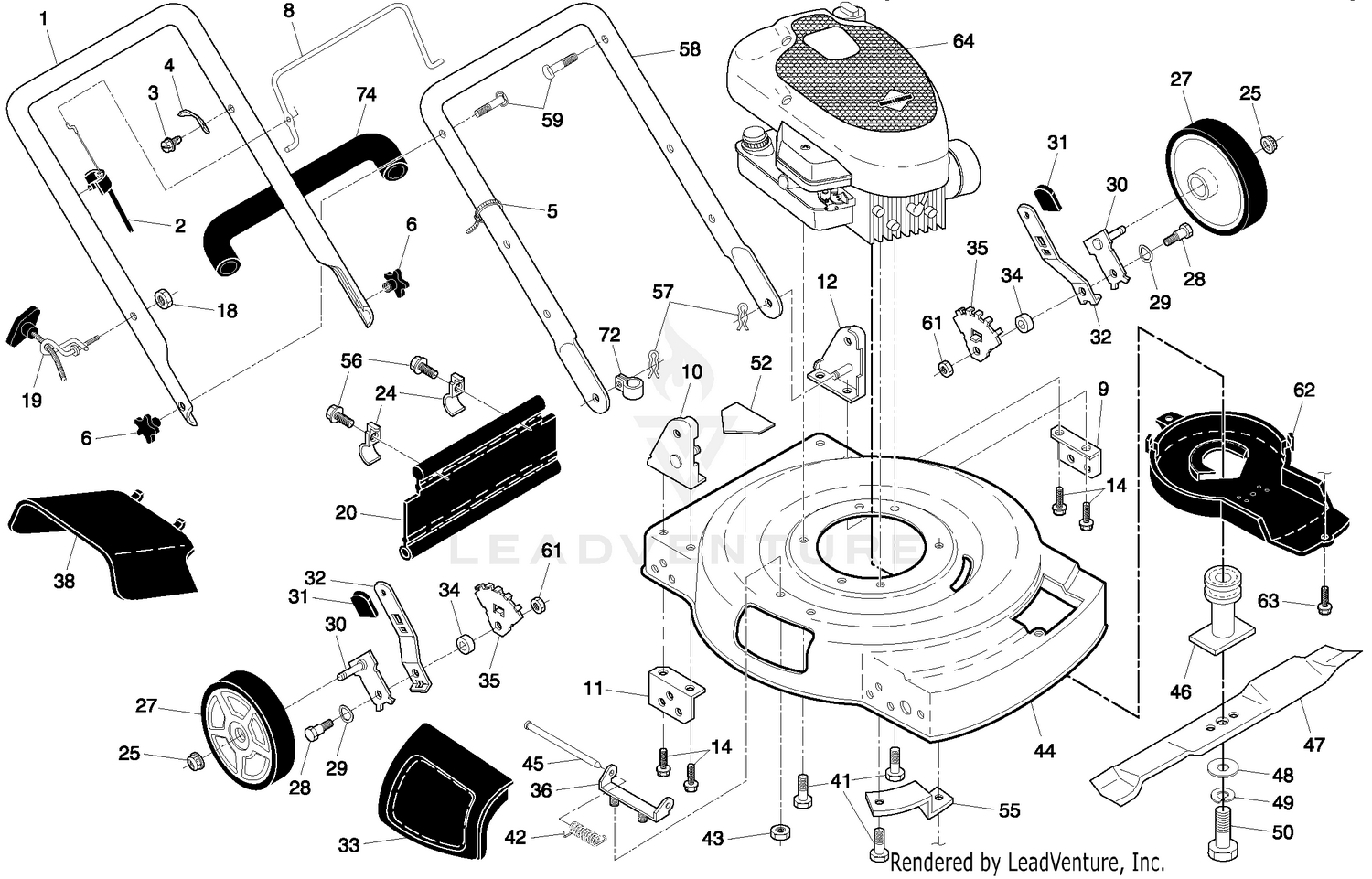

| Ref | Part Number | Description |
|---|
| 1 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 2 |
105-7822 |
DECAL-CAUTION Price: $13.82 |
| 2 |
175148 |
Engine Zone Control Cable Price: Call Us |
| 3 |
21-2660-01 |
PLATE-SIDE Price: $299.86 |
| 3 |
750634 |
Screw Price: Call Us |
| 4 |
850733X004 |
Bracket, Upstop Price: Call Us |
| 5 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 5 |
664-26 |
Wire Tie Price: Call Us |
| 6 |
182398 |
Handle Knob Price: Call Us |
| 7 |
105-2596-01 |
FENDER ASM Price: $104.53 |
| 8 |
194199X421 |
Control Bar Price: Call Us |
| 9 |
153282X479 |
Support Bracket, Handle, LH Price: Call Us |
| 9 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 10 |
170345X479 |
Handle Bracket, RH Price: Call Us |
| 10 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 11 |
153350X479 |
Support Bracket, Handle, RH Price: Call Us |
| 11 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 12 |
170346X479 |
Handle Bracket, LH Price: Call Us |
| 14 |
149741 |
Screw, Thread Cutting 5/16-18 x 3/4 Price: Call Us |
| 14 |
32103-2 |
NUT-WING Price: $0.68 |
| 15 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 18 |
132004 |
Locknut, Keps Price: Call Us |
| 19 |
194788 |
Rope Guide Price: Call Us |
| 20 |
2412-39 |
CLAMP-R Price: $1.70 |
| 20 |
413160 |
Kit, Rear Skirt Price: Call Us |
| 22 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 24 |
192301X004 |
Clamp, Rear Skirt Price: Call Us |
| 24 |
38-4550-03 |
COVER-INSTRUMENTS Price: $448.71 |
| 25 |
409148 |
Locknut, Hex 3/18-16 Price: Call Us |
| 26 |
105-2564 |
BATTERY COVER ASM Price: $78.84 |
| 27 |
193909X421 |
Wheel & Tire Assembly Price: Call Us |
| 27 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 28 |
174719 |
Shoulder Bolt Price: Call Us |
| 28 |
52-1321 |
DECAL-FUEL, DIESEL Price: $9.16 |
| 29 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 29 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 30 |
401179X004 |
Axle Arm Assembly Price: Call Us |
| 31 |
32128-33 |
NUT-HF Price: $0.25 |
| 31 |
701037X421 |
Knob, Selector Price: Call Us |
| 32 |
401624X004 |
Spring, Selector Price: Call Us |
| 32 |
93-3183 |
TOOL BOX ASM This part replaces 93-3182-03. Price: $240.67 |
| 33 |
151889 |
Mulcher Door Price: Call Us |
| 33 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 34 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 34 |
401629 |
Spacer Price: Call Us |
| 35 |
407501X005 |
Bracket, Wheel Adjuster Price: Call Us |
| 36 |
154132 |
Bracket, Housing Price: Call Us |
| 36 |
72-3560 |
DECAL Price: $12.52 |
| 37 |
68-8610-01 |
EXTENSION-FENDER Price: $186.20 |
| 38 |
176509 |
Deflector, Discharge Price: Call Us |
| 38 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 39 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 40 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 41 |
150406 |
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8 Price: Call Us |
| 41 |
88-0070-01 |
PLATE-FLOOR Price: $169.68 |
| 42 |
152124 |
Spring, Torsion Price: Call Us |
| 43 |
73800400 |
Locknut, Hex 1/4-20 Price: Call Us |
| 44 |
93-3185 |
COVER ASM Price: $144.25 |
| 45 |
147286 |
Rod, Hinge Price: Call Us |
| 46 |
195963 |
Blade Adapter / Pulley Price: Call Us |
| 47 |
406713 |
Blade, 22" Price: Call Us |
| 47 |
98-3879 |
DISCONTINUED Price: Call Us |
| 48 |
851074 |
Washer, Hardened Price: Call Us |
| 49 |
850263 |
Washer, Lock, Helical Price: Call Us |
| 50 |
851084 |
Screw, Hex Head, Grade 8 3/8-24 x 1-3/8 Price: Call Us |
| 52 |
404763 |
Decal, Danger Price: Call Us |
| 55 |
188839X004 |
Mounting Bracket, Debris Shield Price: Call Us |
| 56 |
750097 |
Screw, Hex Washer Head #10-24 x 1/2 Price: Call Us |
| 57 |
51793 |
Hairpin Cotter Price: Call Us |
| 58 |
151590X479 |
Lower Handle Price: Call Us |
| 59 |
191574 |
Handle Bolt Price: Call Us |
| 61 |
73930600 |
Locknut, Hex Price: Call Us |
| 62 |
405843 |
Debris Shield Price: Call Us |
| 63 |
192325 |
Screw Price: Call Us |
| 72 |
197991 |
Clip, Cable Price: Call Us |
