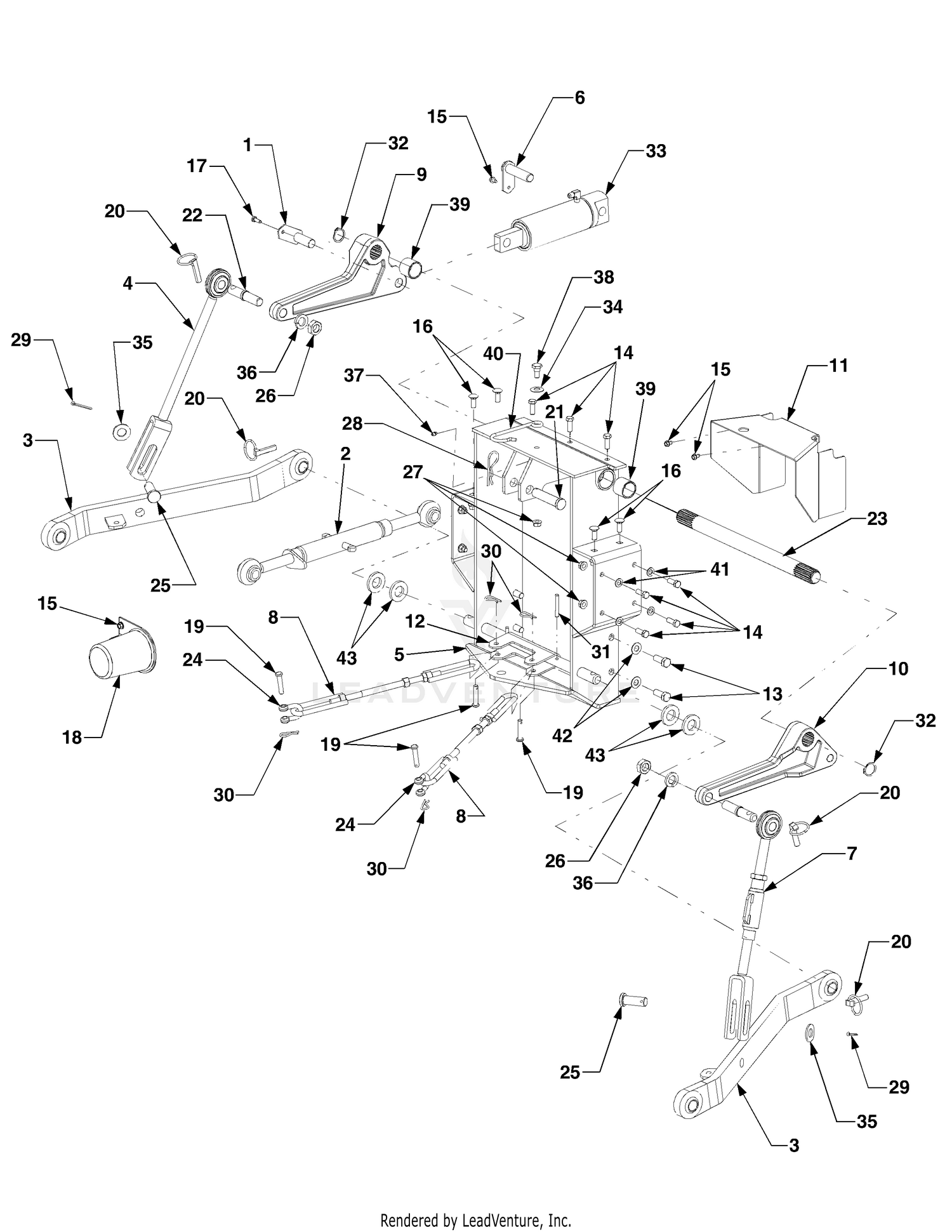

| Ref | Part Number | Description |
|---|
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 1 |
603-04062-0637 |
CYLINDER LIFT ARM PIN Not Available Price: |
| 1 |
99-7509 |
SHAFT-DIFFERENTIAL, LH GEAR Price: $108.15 |
| 2 |
903-0964 |
CENTER LINK ASSEMBLY- Not Available This part replaces 603-0964. Price: |
| 2 |
99-7512 |
SHAFT-DIFFERENTIAL, RH GEAR Price: $76.98 |
| 3 |
19091016 |
WASHER Price: Call Us |
| 3 |
603-0965 |
LINK ASSEMBLY-LOWER HI Not Available Price: |
| 3 |
95-7518 |
GEAR-BEVEL, 18 TOOTH Price: $184.59 |
| 4 |
10040400 |
LOCKWASHER Price: Call Us |
| 4 |
119-8558 |
BEARING-NOSEAL This part replaces 99-7530. Price: $14.99 |
| 4 |
903-0970 |
FIXED LIFT LINK ASSEMBLY Not Available This part replaces 603-0970. Price: |
| 5 |
603-0971A-0637 |
HITCH BRACKET ASSEMBLY MOUNTING (POWDER BLACK) Not Available Price: |
| 5 |
99-7552 |
SHIM 0.1 Price: $3.12 |
| 5 |
99-7553 |
SHIM 0.2 Price: $2.83 |
| 5 |
99-7554 |
SHIM 0.5 Price: $3.19 |
| 6 |
603-0972-0637 |
LIFT CYLINDER MOUNTING PIN (POWDER BLACK) Not Available Price: |
| 6 |
73220400 |
SUB= 50675 Price: Call Us |
| 6 |
99-7531 |
CLIP Price: $1.42 |
| 7 |
106-1101 |
SHAFT-GEAR, BEVEL Price: $145.82 |
| 7 |
603-0969 |
LIFT ROD LINK (LH) Not Available Price: |
| 7 |
711-1744 |
TURNBUCKLE Not Available Price: |
| 7 |
712-04051 |
JAM NUT 20M (RH) Not Available Price: |
| 7 |
903-0968 |
LIFT ROD LINK (RH) Not Available This part replaces 603-0968. Price: |
| 7 |
903-0973 |
ADJUSTABLE LINK ASSEMBLY Not Available This part replaces 603-0973. Price: |
| 8 |
603-0977 |
CHECK CHAIN ASSEMBLY Not Available Price: |
| 8 |
903-0974 |
CHAIN-CHECK (RH) THR Not Available This part replaces 603-0974. Price: |
| 8 |
903-0975 |
CHAIN-CHECK (LH) THR Not Available This part replaces 603-0975. Price: |
| 8 |
903-0976 |
CHECK CHAIN ROD Not Available This part replaces 603-0976. Price: |
| 8 |
99-7532 |
BEARING-ROLLER, TAPER Price: $45.81 |
| 9 |
109596X |
HOSE CLAMP T Price: Call Us |
| 9 |
919-3095 |
UPPER HITCH ARM (LH) Not Available This part replaces 619-3095. Price: |
| 9 |
95-7543 |
SPACER Price: $10.18 |
| 10 |
145211 |
SUB= 150177 Price: Call Us |
| 10 |
919-3096 |
UPPER HITCH ARM (RH) Not Available This part replaces 619-3096. Price: |
| 10 |
99-7533 |
COLLAR-THRUST Price: $22.53 |
| 11 |
150109 |
HOLDDOWN BATTERY Price: Call Us |
| 11 |
703-4137-0637 |
REAR PTO SHIELD Not Available Price: |
| 11 |
777S30634 |
LABEL-PTO SHIELD W Not Available Price: |
| 12 |
145769 |
SUB= 150177 Price: Call Us |
| 12 |
703-4143-0637 |
CHECK CHAIN BRACKET Not Available Price: |
| 13 |
710-04186 |
Screw, Hex Cap Lock, 1/2-13 x 1.25 GR5 Price: $6.17 |
| 14 |
710-0514 |
Screw, Hex Cap, 3/8-16 x 1.0 GR5 Price: $3.78 |
| 15 |
710-0599 |
Screw, Hex Wash. Hd. Tapp 1/4-20 x .5 Price: $3.86 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
710-3168 |
Screw, Carriage, 3/8-16 x 1.0 Price: $3.61 |
| 17 |
710-3296 |
Screw, Hex Cap, 1/4-20 x .75 GR5 Price: $3.85 |
| 18 |
731-04114 |
COVER-540 PTO Not Available Price: |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
711-0679A |
Pin, Clevis, 3/8 x 2.015 This part replaces 711-0599. Price: $12.40 |
| 20 |
711-1105 |
Pin, Klik Price: $10.43 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
711-1733 |
CLEVIS PIN 19MM x 84MM Not Available Price: |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 22 |
911-1743 |
HITCH LIFT ARM PIN Not Available This part replaces 711-1743. Price: |
| 23 |
911-1750 |
ROCK SHAFT Not Available This part replaces 711-1750. Price: |
| 24 |
911-1753 |
CHECK CHAIN CLEVIS Not Available This part replaces 711-1753. Price: |
| 25 |
146148 |
CABLE.6GA.22W/16W Price: Call Us |
| 25 |
911-1761 |
CLEVIS PIN .75 Not Available This part replaces 711-1761. Price: |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 26 |
712-0301 |
Nut, Hex Jam, 3/4-10 GR5 Price: $7.26 |
| 27 |
912-0431 |
Nut, Hex Flange Lock, 3/8-16 This part replaces 7120431. Price: $4.29 |
| 28 |
145491 |
CABLE.GRND.6GA.21 Price: Call Us |
| 28 |
714-0117 |
Pin, Internal Cotter Price: $3.85 |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 29 |
714-0142 |
COTTER PIN-3/16 DIA x 1.50 Not Available Price: |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 30 |
714-0149B |
Pin, Internal Cotter Price: $3.95 |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 31 |
715-0121 |
Pin, Spirol, 1/4 x 2.0 Price: $5.95 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 32 |
916-04004 |
SNAP RING Not Available This part replaces 716-04004. Price: |
| 33 |
122147X |
KEY Price: Call Us |
| 33 |
917-3532A |
HITCH LIFT CYLINDER Not Available This part replaces 717-3532. Price: |
| 34 |
736-0255 |
Washer, Belleville, .51 x 1.14 x .04 Price: $4.02 |
| 35 |
736-0315 |
Washer, Flat, .76 x 1.5 x .12 Price: $5.94 |
| 36 |
936-0364 |
WASHER Not Available This part replaces 736-0364. Price: |
| 37 |
937-3000 |
Grease Fitting This part replaces 7373000. Price: $4.04 |
| 38 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 39 |
941-04084 |
SLEEVE BEARING 1.2 Not Available This part replaces 741-04084. Price: |
| 40 |
158684 |
HARNESS IGNITION Price: Call Us |
| 40 |
947-04122 |
CENTER LINK HANGER Not Available This part replaces 747-04122. Price: |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 41 |
736-0185 |
Washer, Flat, .375 x .738 x .063 Price: $3.43 |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 45 |
122822X |
AMMETER Price: Call Us |
| 50 |
154959 |
PTO SWITCH.BLK Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
| 55 |
17490508 |
SCREW LT Price: Call Us |
