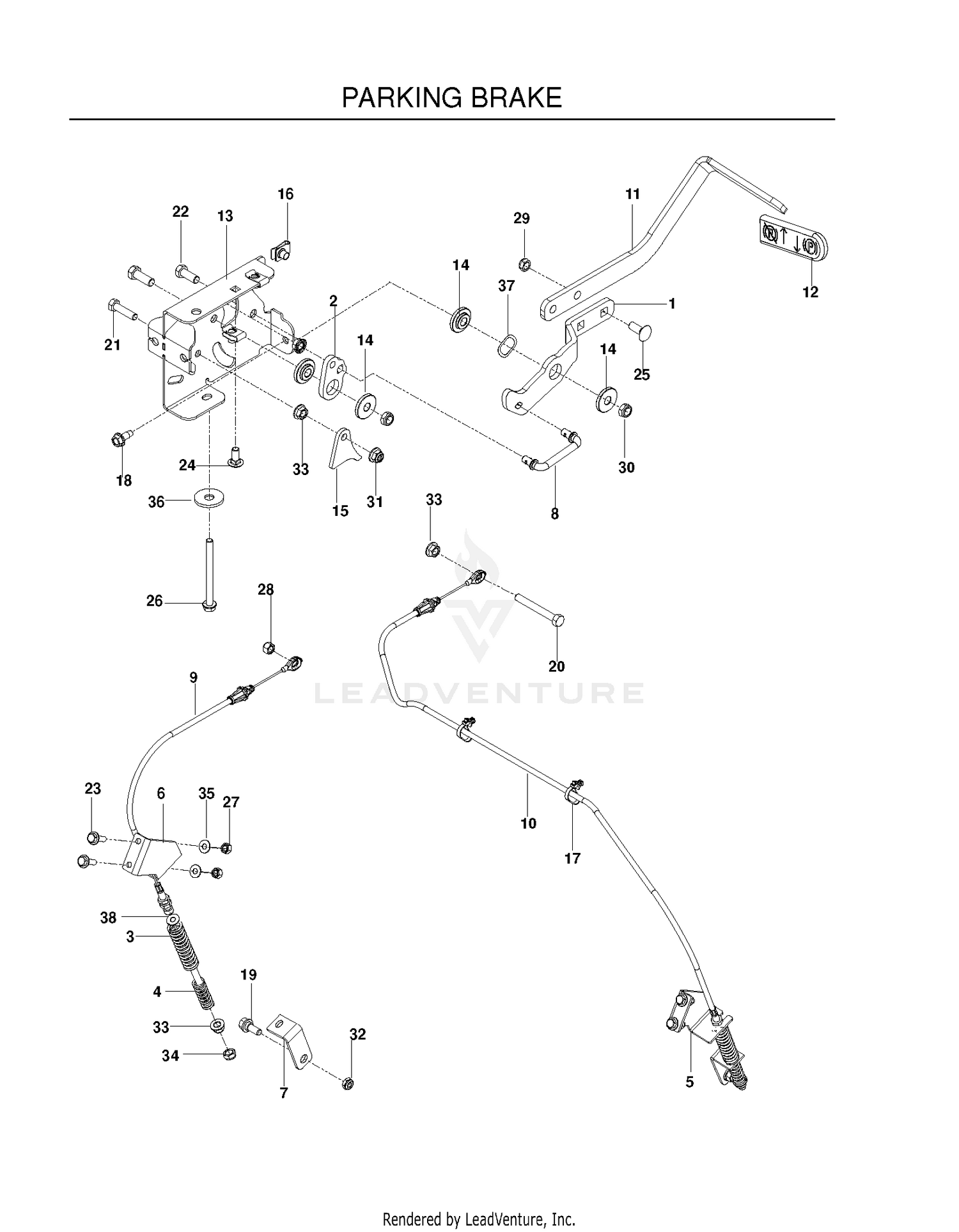

| Ref | Part Number | Description |
|---|
| 1 |
32128-32 |
NUT-HHF Price: $2.69 |
| 1 |
595846701 |
KIT.SERVICE.ASM.BRAKE.MZ This part replaces 539132423. Price: $59.99 |
| 2 |
595846701 |
KIT.SERVICE.ASM.BRAKE.MZ This part replaces 539132153. Price: $59.99 |
| 2 |
74-2710 |
CLAMP-HOSE Price: $21.71 |
| 3 |
321-15 |
SCREW-HH Price: $0.61 |
| 3 |
575230201 |
SPRING, RETURN Price: $5.99 |
| 4 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 4 |
575230301 |
SPRING, ENGAGEMENT Price: $4.99 |
| 5 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 6 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 7 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 7 |
575229802 |
BRKT, BRAKE, BLK Price: $9.99 |
| 8 |
596887001 |
Links This part replaces 539132424. Price: $4.99 |
| 8 |
69-9300 |
PAD-BUMPER Price: $8.68 |
| 9 |
32108-103 |
SCREW-FH Price: $0.68 |
| 9 |
539132173 |
CABLE, BRAKE, SHORT Price: $27.99 |
| 10 |
539132174 |
RP_CABLE, BRAKE, LONG Price: $29.99 |
| 10 |
93-9942-01 |
ARM-OUTER LIFT, LH This part replaces 93-9942. Price: $1,714.96 |
| 11 |
593564002 |
ARM BRAKE BLACK MS-431 This part replaces 539132151. Price: $7.99 |
| 11 |
71-2600 |
TUBE-ANTISWAY Price: $63.76 |
| 12 |
3220-7 |
NUT-JAM Price: $4.09 |
| 12 |
539105036 |
GRIP, PARK BRAKE Price: $3.99 |
| 13 |
2411-40 |
END-ROD Price: $195.97 |
| 13 |
539132158 |
MOUNT, BRAKE WLDMT Price: $49.99 |
| 14 |
539132161 |
BUSHING, BRAKE Price: $2.99 |
| 14 |
98-3311-01 |
ARM-ANTI SWAY, LH This part replaces 82-7930. Price: $273.32 |
| 15 |
256-76 |
BUSHING Price: $4.07 |
| 15 |
595846701 |
KIT.SERVICE.ASM.BRAKE.MZ This part replaces 539132154. Price: $59.99 |
| 16 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 16 |
69-9240 |
ROLLER-CAM Price: $42.48 |
| 17 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 17 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
| 18 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 18 |
69-9250 |
PIN-ROLLER Price: $59.77 |
| 19 |
3219-7 |
NUT-HEX Price: $1.53 |
| 19 |
596240701 |
Bolts This part replaces 539110303. Price: $3.99 |
| 20 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 20 |
596437101 |
Screws This part replaces 539108396. Price: $2.99 |
| 21 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 21 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 22 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 22 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 23 |
596565401 |
Screws This part replaces 539990643. Price: $1.99 |
| 23 |
71-2620 |
SHAFT-ELBOW, LIFT ARM Price: $222.47 |
| 24 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 24 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 25 |
595316801 |
Bolts This part replaces 539990645. Price: $3.99 |
| 25 |
93-9926-01 |
ARM-LIFT, LH This part replaces 93-9926. Price: $2,514.68 |
| 26 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 26 |
596241601 |
Bolts This part replaces 539131780. Price: $1.99 |
| 27 |
322-3 |
SCREW-HH Price: $0.79 |
| 27 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 28 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 28 |
93-9928 |
CLAMP-HOSE Price: $19.29 |
| 29 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 30 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 30 |
93-9912 |
GROMMET Price: $14.93 |
| 31 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 31 |
74-2730 |
TUBE Price: $5.97 |
| 32 |
596433601 |
Nuts This part replaces 539115617. Price: $2.99 |
| 32 |
94-6772-01 |
RETAINER This part replaces 94-6772. Price: $17.47 |
| 33 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 34 |
596436301 |
Nuts This part replaces 539107897. Price: $2.99 |
| 34 |
82-7900 |
ARM-SHAFT Price: $194.77 |
| 35 |
596582301 |
Washers This part replaces 539990055. Price: $2.99 |
| 36 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 37 |
539133007 |
WASHER, .825 X 1.087, WAVE Price: $2.99 |
