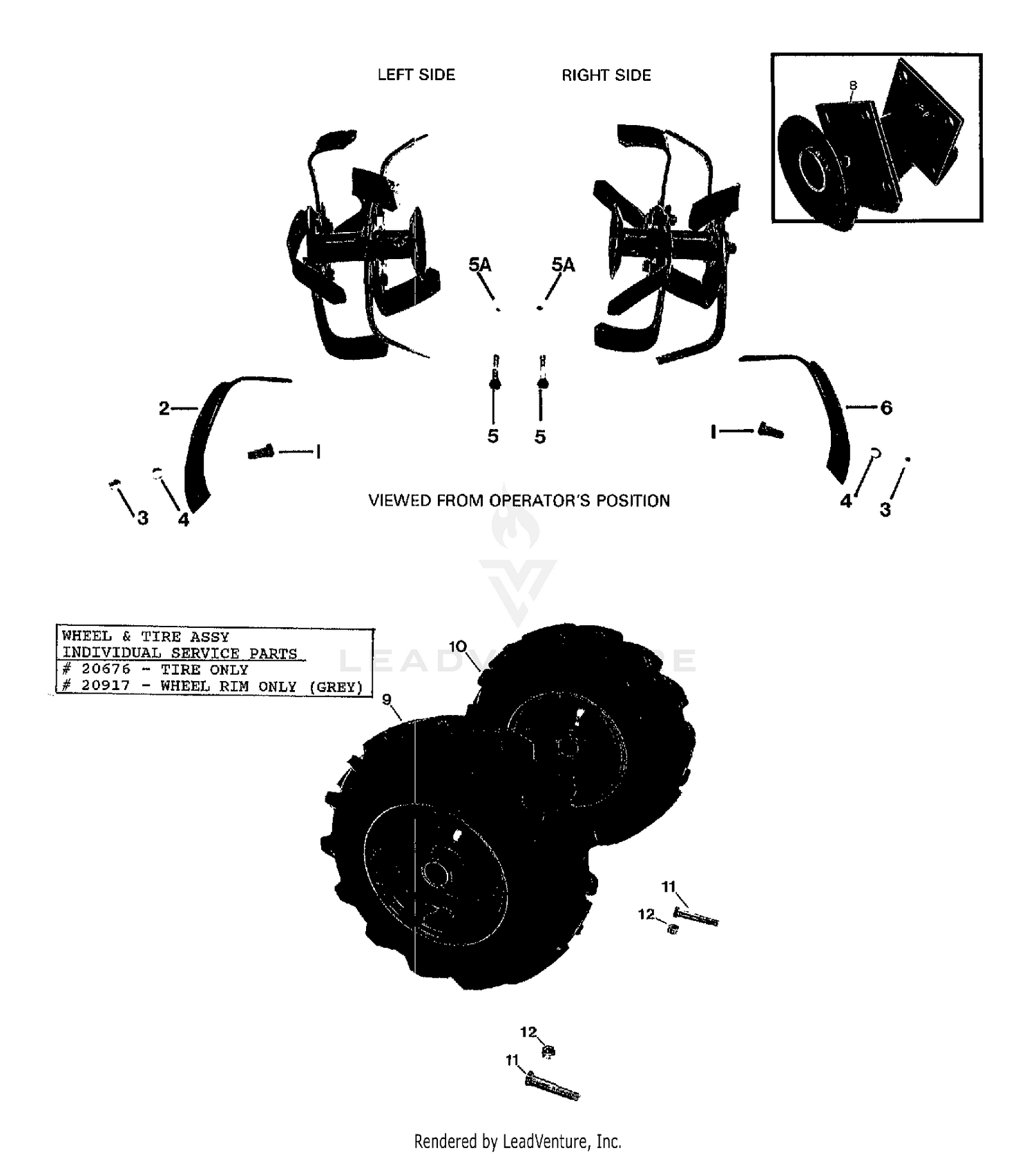

| Ref | Part Number | Description |
|---|
| 1 |
9711 |
BOLT-hex head, 3/8"-16 x 1", grade 5, tine mounting Price: Call Us |
| 3 |
9802 |
NUT- hex, 3/8"-16 Price: Call Us |
| 4 |
9913 |
LOCKWASHER-3/8" Price: $1.89 |
| 5 |
9761 |
BOLT- hex head, 3/8"-16 x 2",grade 8 (holder to tiller shaft) Price: Call Us |
| 5A |
690-239-0020 |
PRIMER BULB TEC Not Available This part replaces 9807. Price: |
| 9 |
20678-01 |
WHEEL & TIRE ASSEMBLY-left side, 4.10 x 6" tire mounted on 6" wheel, tubeless pneumatic (10-20 lbs. air required), tractor tread Price: Call Us |
| 10 |
20678-02 |
WHEEL & TIRE ASSEMBLY- right side, same specs. as above Price: Call Us |
| 11 |
710-3103 |
Hex Cap Screw, 5/16-18 x 2.0 This part replaces 9741. Price: $4.02 |
