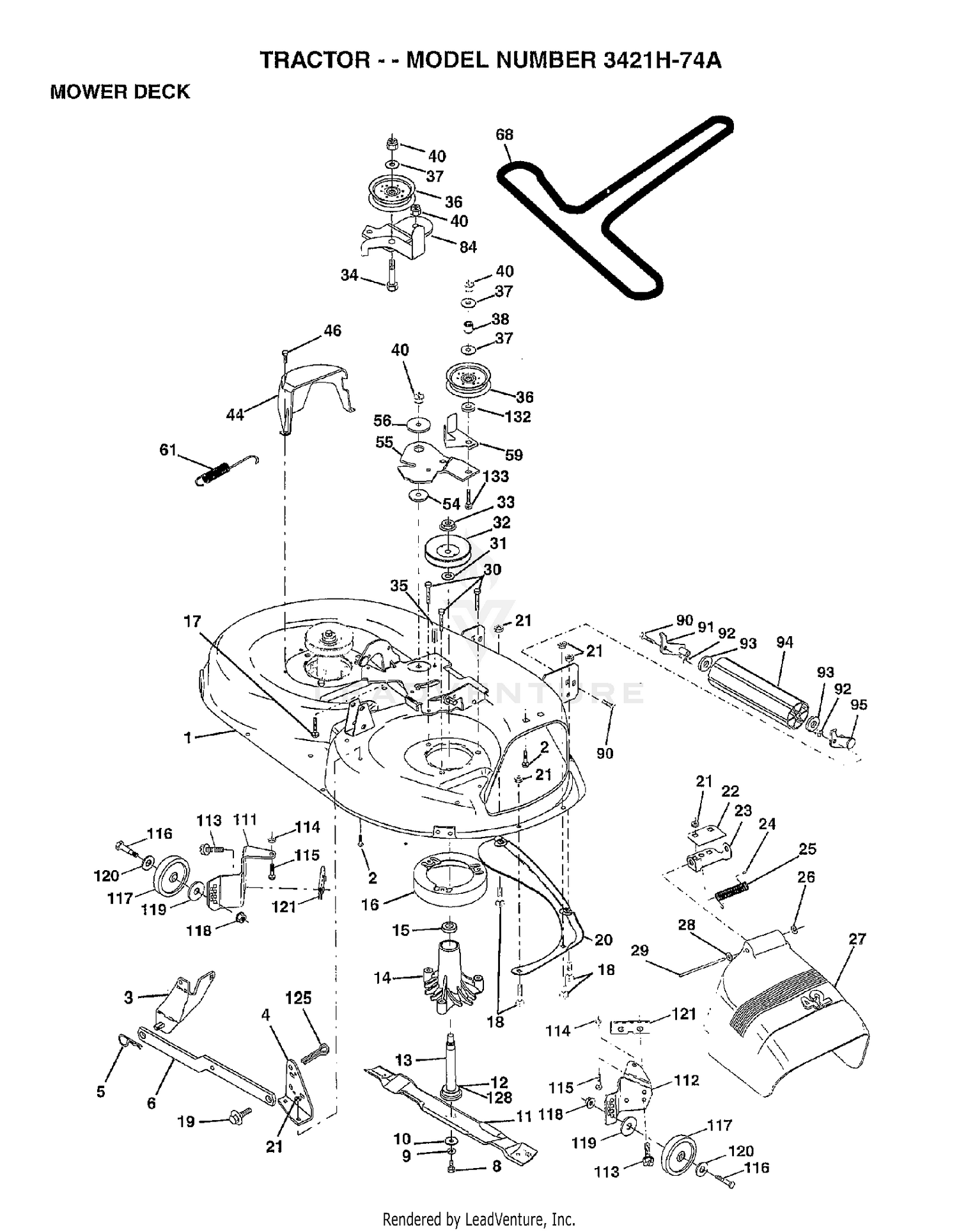

| Ref | Part Number | Description |
|---|
| 1 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 1 |
532144393 |
Deck Asm MWR 42"weldment (AYP part number) Price: $139.99 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 3 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 3 |
532138017 |
BRKT ASM SWAY BAR Price: $7.99 |
| 4 |
19-2950 |
DISCONTINUED Price: Call Us |
| 4 |
532138440 |
BRKT DECK SW BAR Price: $3.99 |
| 5 |
10-2670 |
ACCELERATOR PEDAL WA Price: $227.65 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532004939. Price: $1.99 |
| 6 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 6 |
532178024 |
BAR SWAY DECK This part replaces 532130832. Price: $5.99 |
| 7 |
323-5 |
SCREW-HH Price: $0.41 |
| 8 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 8 |
532850857 |
BLADE BOLT Price: $1.99 |
| 9 |
2412-10 |
CLAMP-R Price: $2.78 |
| 9 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 10 |
532140296 |
WASHER.BLADE Price: $2.99 |
| 10 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 11 |
19-3090 |
DISCONTINUED Price: Call Us |
| 11 |
532131323 |
Price: $12.85 |
| 12 |
3220-3 |
NUT-HJ Price: $0.28 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $6.99 |
| 13 |
282-1 |
DISCONTINUED Price: Call Us |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 14 |
18-1160 |
PEDAL SHAFT WA Price: $180.79 |
| 14 |
532128774 |
HSG MANDREL Price: $22.99 |
| 15 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
3-8760 |
DISCONTINUED Price: Call Us |
| 16 |
532174493 |
STRIPPER.MANDREL.ROUND.BLACK This part replaces 532128961. Price: $3.99 |
| 17 |
256-143 |
DISCONTINUED Price: Call Us |
| 17 |
872110618 |
BOLT CARRIAGE Price: $2.99 |
| 18 |
3217-7 |
NUT-HEX Price: $0.28 |
| 18 |
872140505 |
BOLT This part replaces 532066238. Price: $2.99 |
| 19 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 20 |
10-0670 |
DISCONTINUED Price: Call Us |
| 20 |
532159770 |
BAFFLE.VORTEX This part replaces 532136888. Price: $12.99 |
| 21 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
3217-6 |
NUT-HEX Price: $1.19 |
| 22 |
532134753 |
Stiffener Bracket 42" deck (AYP part number) Price: $5.99 |
| 23 |
322-3 |
SCREW-HH Price: $0.79 |
| 23 |
532177563 |
BRKT, DEFL. MOWER This part replaces 532131267. Price: $2.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 24 |
61-3990-03 |
BRAKE-PARKING ASM This part replaces 37-2740. Price: $432.36 |
| 25 |
29-4750 |
DISCONTINUED Price: Call Us |
| 25 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $3.99 |
| 26 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
3218-3 |
NUT-JAM Price: $0.25 |
| 27 |
532130968 |
SHIELD.DEFLECTOR.MOWER.42".BLK Price: $22.99 |
| 28 |
37-2060 |
DISCONTINUED Price: Call Us |
| 28 |
819111016 |
WASHER Price: $5.99 |
| 29 |
37-3150 |
ROD PARKING BRAKE ADJ Price: $131.55 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
37-4180 |
MASTER CYL ASM Price: $807.09 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $1.99 |
| 31 |
353-689 |
DISCONTINUED Price: Call Us |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $1.99 |
| 32 |
42-3690 |
DISCONTINUED Price: Call Us |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $7.99 |
| 33 |
32104-6 |
SCREW-HH, TAP Price: $3.19 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $4.99 |
| 34 |
2412-10 |
CLAMP-R Price: $2.78 |
| 34 |
872110614 |
BOLT Price: $3.99 |
| 35 |
3-3137 |
EQUALIZER BAR Price: $26.87 |
| 35 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 36 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 36 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532104360. Price: $14.99 |
| 37 |
36-9730 |
CABLE ASM PARK BR Price: $253.87 |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
3220-2 |
NUT-JAM Price: $0.50 |
| 38 |
532132823 |
IDLER SPRING SPACER Price: $4.99 |
| 39 |
282-2 |
YOKE Price: $30.04 |
| 40 |
3290-211 |
WASHER-SPRING Price: $4.89 |
| 40 |
873680600 |
LOCKNUT Price: $1.99 |
| 41 |
37-3330 |
DISCONTINUED Price: Call Us |
| 42 |
3-3075 |
DISCONTINUED Price: $2.00 |
| 43 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 44 |
37-3340 |
DISCONTINUED Price: Call Us |
| 44 |
532140088 |
GUARD MANDREL LH BLACK This part replaces 532134236. Price: $14.99 |
| 45 |
304-2 |
FITTING-TEE-UNION Price: $22.47 |
| 46 |
42-3700 |
BRAKE LINE Price: $306.15 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
37-9840 |
DISCONTINUED Price: Call Us |
| 48 |
18-2970 |
CLIP-FUEL LINE Price: $8.67 |
| 49 |
215-23 |
DISCONTINUED Price: Call Us |
| 50 |
323-20 |
SCREW-HH Price: $1.28 |
| 51 |
325-6 |
SCREW-HH Price: $1.42 |
| 52 |
32146-13 |
NUT-HEX Price: $3.49 |
| 53 |
3290-216 |
WASHER Price: $3.83 |
| 54 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 54 |
532178515 |
WASHER This part replaces 532133943. Price: $2.99 |
| 55 |
325-7 |
SCREW-HH Price: $1.53 |
| 55 |
532151785 |
CAM ROLLER KIT This part replaces 532140084. Price: $27.99 |
| 56 |
33-2190 |
DISCONTINUED Price: Call Us |
| 56 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $2.99 |
| 57 |
33-2230 |
DISCONTINUED Price: Call Us |
| 58 |
37-3120 |
DISCONTINUED Price: Call Us |
| 59 |
23-8010 |
INTERLOCK SWITCH Price: $89.91 |
| 59 |
532141043 |
GUARD, BELT Price: $3.99 |
| 60 |
218-461 |
NUT-HH Price: $2.50 |
| 61 |
39-0770 |
DISCONTINUED Price: Call Us |
| 61 |
532131950 |
SPRING EXTENSION Price: $4.99 |
| 62 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 63 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 64 |
7-3901 |
CLUTCH PAD Price: $18.79 |
| 65 |
3-3107 |
BUMPER-PEDAL, CLUTCH Price: $3.80 |
| 66 |
3-3750 |
CLUTCH PEDAL WA *R Price: $404.40 |
| 67 |
10-0680 |
DISCONTINUED Price: Call Us |
| 68 |
5-1706 |
SPRING-EXTENSION Price: $12.91 |
| 68 |
532144959 |
BELT V SECONDARY Price: $32.99 |
| 69 |
19-3710 |
DISCONTINUED Price: Call Us |
| 70 |
38-2090 |
DISCONTINUED Price: Call Us |
| 71 |
3219-1 |
NUT-HEX Price: $0.47 |
| 72 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 73 |
18-1720 |
BALL JOINT Price: $50.30 |
| 74 |
3220-1 |
NUT-JAM Price: $0.99 |
| 75 |
19-3380 |
DISCONTINUED Price: Call Us |
| 76 |
18-2860 |
DISCONTINUED Price: Call Us |
| 77 |
42-3720 |
DISCONTINUED Price: Call Us |
| 78 |
42-3730 |
DISCONTINUED Price: Call Us |
| 84 |
532158824 |
Price: $7.38 |
| 90 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 91 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $3.99 |
| 92 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 93 |
819171416 |
WASHER Price: $2.99 |
| 94 |
539132264 |
MANUAL, OPERATOR Price: $3.20 |
| 95 |
532175747 |
BRACKET ASM, ROLLER This part replaces 532132273. Price: $7.99 |
| 111 |
532155197 |
BRACKET WHEEL GAUGE LH 42" DK Price: $11.99 |
| 112 |
532155198 |
BRACKET WHEEL GAUGE RH 42" DK Price: $11.99 |
| 113 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 114 |
873310500 |
NUT Price: $3.99 |
| 115 |
872110505 |
BOLT This part replaces 872110504. Price: $3.99 |
| 116 |
532004898 |
BOLT Price: $1.99 |
| 117 |
532105455 |
GUAGE WHEEL GT Price: $11.99 |
| 118 |
873680600 |
LOCKNUT This part replaces 532005394. Price: $1.99 |
| 119 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 120 |
819171512 |
WASHER Price: $3.99 |
| 121 |
532143723 |
BRACKET.EXTRUDED.GAGE.WHEEL Price: $7.99 |
| 125 |
TBD |
Price: Call Us |
| 128 |
532153390 |
WASHER FELT Price: $2.99 |
| 132 |
819132203 |
WASHER GT Price: $3.99 |
| 133 |
872110622 |
BOLT Price: $0.99 |
| 532130794 |
MANDREL |
ASM, LH 5PT STAR Price: $32.99 532130794 |
