| Ref | Part Number | Description |
|---|
| 2 |
48030-09 |
Cable Clamp Price: Call Us |
| 4 |
48231 |
Neutral Safety Switch Price: Call Us |
| 5 |
48122-01 |
Fibre Washer, thin Price: Call Us |
| 5A |
48122-02 |
Fibre Washer, thick Price: Call Us |
| 6 |
481581 |
Coupler, Jackshaft Price: Call Us |
| 7 |
48114-05 |
Grease Fitting, straight 1/4-28 Price: Call Us |
| 9 |
04063-09 |
Key, Hi-Pro #9 Price: Call Us |
| 10 |
423476 |
Heatshield (16" Small Frame) This part replaces 422737. Price: Call Us |
| 13 |
04017-16 |
Bolt, 5/16-18 X 75" Serrated Flange Hex Head Price: Call Us |
| 14 |
04040-14 |
Flat Washer 1/4" (.312 X .75 X .065) Price: Call Us |
| 15 |
04030-03 |
Lock Wshr 5/16" Price: Call Us |
| 16 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 17 |
461743 |

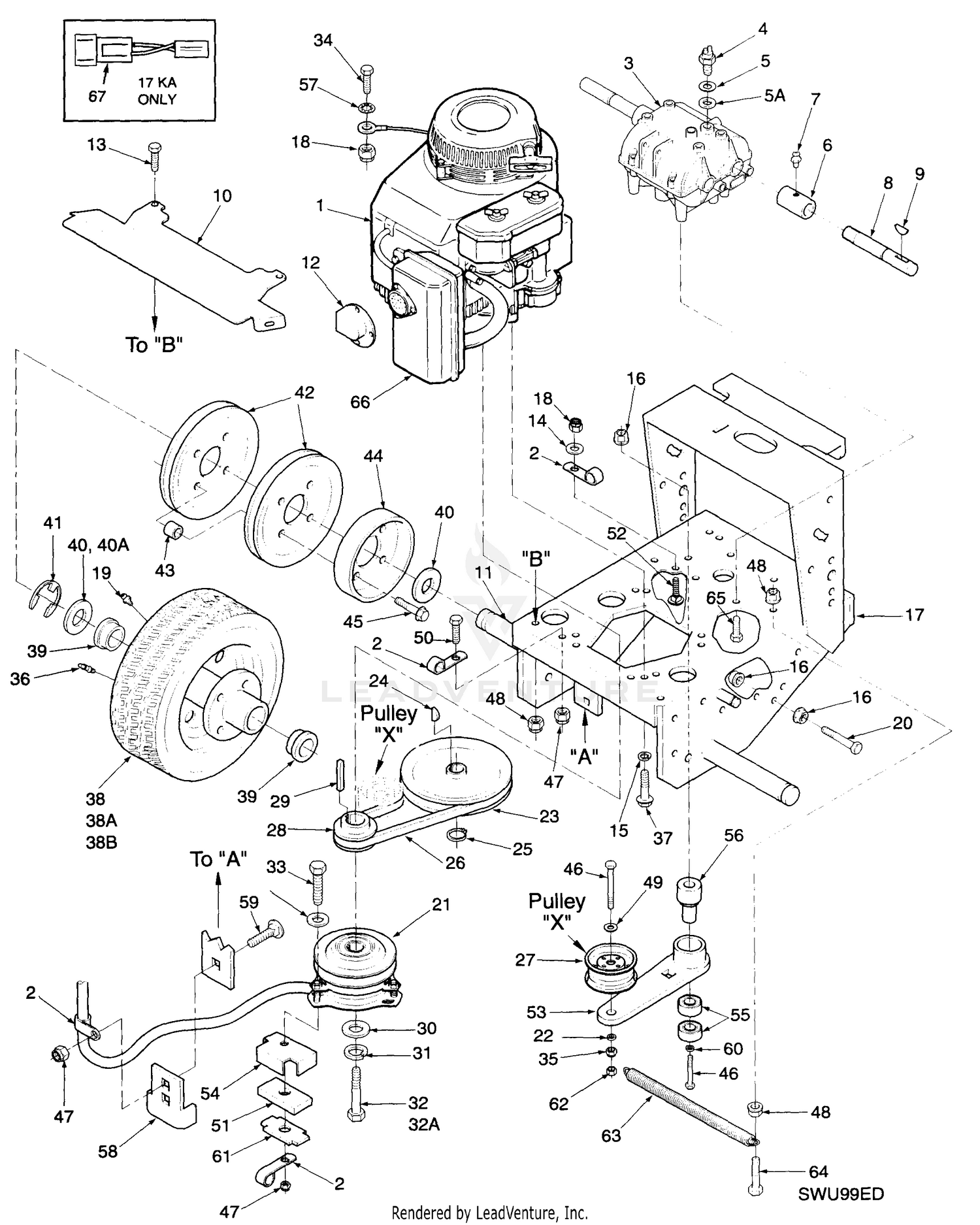

Engine Deck This part replaces 46765. Price: Call Us |
| 18 |
04021-08 |
Nut, 1/4-20 Elastic Stop Price: Call Us |
| 19 |
48114-04 |
Grease Fitting, 1/4-28 Self Tap Price: Call Us |
| 20 |
04001-51 |
Bolt, 3/8-16 x 3-3/4" Hex Head Price: Call Us |
| 21 |
461397 |
Clutch, Electric This part replaces 461073. Price: Call Us |
| 22 |
04041-07 |
Washer, 3/8" (.391 x .938 x .105) Price: Call Us |
| 23 |
48197 |
Pulley, Transmission Input Price: Call Us |
| 24 |
04063-07 |
Key, Woodruff #9 Price: Call Us |
| 25 |
04050-09 |
Retaining Ring, 5/8" Ext, Basic Price: Call Us |
| 26 |
48203 |
Belt, Transmission Drive Price: Call Us |
| 27 |
483208 |
Pulley, Idler 3" Dia. - 52" This part replaces 481048. Price: Call Us |
| 28 |
481666 |
Pulley, Traction Drive Price: Call Us |
| 29 |
04063-19 |
Key, 1/4 x 1/4 x 3/4" Price: Call Us |
| 30 |
04041-28 |
Flat Washer, 7/16" Special Price: Call Us |
| 31 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 33 |
04001-12 |
Bolt, 5/16-18 x 1-3/4" Hex Head Price: Call Us |
| 34 |
04002-07 |
Bolt, MS-1.25 x 1.0 Price: Call Us |
| 35 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 37 |
04018-01 |
Bolt, M8-1.25 x M25 Metric Hex Hd Price: Call Us |
| 38A |
481860 |
Tire, 13 x 6.50-6, 2-ply Price: Call Us |
| 40 |
04042-05 |
Washer, 1-1/16 x 1-3/4 x 12 ga Price: Call Us |
| 40A |
04041-14 |
Washer, 1-1/16 x 1-1/2 x 18 ga Price: Call Us |
| 41 |
04050-08 |
Retaining Ring, 1" Ext - "E" Price: Call Us |
| 42 |
48200 |
Pulley, Wheel Drive Price: Call Us |
| 43 |
43088 |
Spacer, Wheel Pulley Price: Call Us |
| 44 |
48209 |
Brake Drum Price: Call Us |
| 45 |
04017-19 |
Bolt, 5/16-18 x 1-1/2" Serrated Flange Price: Call Us |
| 46 |
04001-22 |
Capscrew, Hex Head 3/8-16 x 2.75" Price: Call Us |
| 47 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 48 |
04019-03 |
Nut, 5/16-18 Serrated Flange Hex Head Price: Call Us |
| 49 |
04041-07 |
Flatwasher, 3/8 (.391 x 938 x 105) Price: Call Us |
| 50 |
04001-08 |
Bolt, 5/16-18 x 75" Hex Head Price: Call Us |
| 51 |
481716 |
Rubber Pad, Clutch Stop Price: Call Us |
| 52 |
04003-02 |
Bolt, 1/4-20 x 75" Carriage Price: Call Us |
| 53 |
461169 |
Idler Arm, Trans Drive Price: Call Us |
| 54 |
422533 |
Backing Plate Price: Call Us |
| 55 |
48224 |
Ball Bearing Price: Call Us |
| 56 |
43504 |
Hub Idler Pivot Price: Call Us |
| 57 |
04031-09 |
Lock Washer Internal Tooth Price: Call Us |
| 58 |
421370 |
Anti Rotation Bracket Price: Call Us |
| 59 |
04003-04 |
Bolt, 5/16-18 x 1" Carriage Price: Call Us |
| 60 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Price: Call Us |
| 61 |
422534 |
Plate, Backing Price: Call Us |
| 62 |
04021-05 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 63 |
483526 |
Spring, Pump Belt Idler This part replaces 481835. Price: Call Us |
| 64 |
04001-02 |
Bolt, Hex Head 3/8-16 x 2.75" Price: Call Us |
| 65 |
04017-16 |
Capscrew, 5/16-18 x .75 Serrated Flange Hex Head Price: Call Us |
