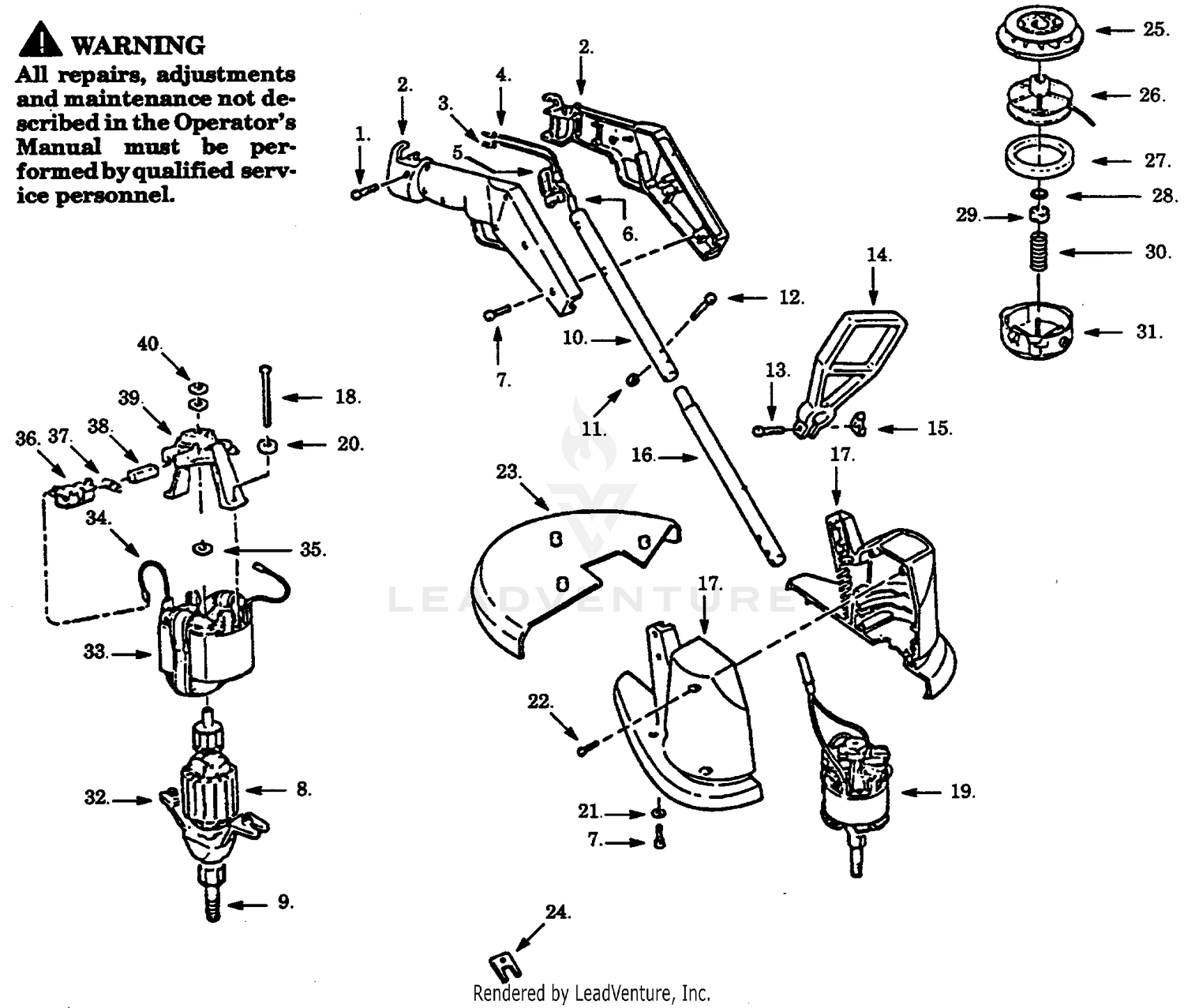

TRIMMER/BRUSHCUTTER ASSEMBLY
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 111-5084 | ROOF Price: $1,293.23 |
| 1 | 534826802 | Screw Price: $0.99 |
| 2 | 111-5311 | WASHER Price: Call Us |
| 2 | 534826522 | Handle Set Price: $3.33 |
| 3 | 09369 | SETSCREW M8 X 30 Price: $1.40 |
| 3 | 534825700 | Wire Terminal Ass'y. Price: $1.99 |
| 4 | 111-5265 | BRACKET-NUMBER PLATE Price: $91.80 |
| 4 | 534827900 | Wire Terminal Ass'y. Price: $1.99 |
| 5 | 111-5264 | COVER Price: $337.97 |
| 5 | 534193003 | Trigger Switch Price: $2.99 |
| 6 | 09475 | WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40 |
| 6 | 534762006 | Harness Ass'y. Price: $3.33 |
| 7 | 09368 | SCREW Price: $1.40 |
| 7 | 534826801 | Screw Price: $1.99 |
| 8 | 09441 | NUT M8 NYL INSERT T TYPE Price: $1.39 |
| 8 | 534367600 | Armature Price: $3.33 |
| 9 | 09472 | WASHER-PLAIN Price: $1.25 |
| 9 | 534401700 | Shaft Adaptor Price: $3.33 |
| 10 | 09362 | SCREW M6 X 16 HEX HD ZINC Price: $1.42 |
| 10 | 534828100 | Upper Tube Price: $5.99 |
| 11 | 09438 | NUT M6 X 1.5 PLAIN Price: $1.39 |
| 11 | 534828300 | Stop Nut Price: $3.33 |
| 12 | 09262 | WASHER 1/4 X 3/4 GALV ROOFING This part replaces 61-11-001. Price: $1.40 |
| 12 | 534829600 | Screw Price: $3.33 |
| 13 | 09363 | SETSCREW M6 X 20 Price: $1.31 |
| 13 | 534828400 | Bolt Price: $1.99 |
| 14 | 111-5310 | WASHER Price: Call Us |
| 14 | 534159205 | Assist Handle Price: $3.33 |
| 15 | 534828500 | Wing Nut Price: $3.33 |
| 16 | 111-5373 | DISCONTINUED Price: Call Us |
| 16 | 534828200 | Lower Tube Price: $4.44 |
| 17 | 111-5371 | NOZZLE-WASHER Price: $5.83 |
| 17 | 534826602 | Housing Set Price: $6.99 |
| 18 | 111-7992 | HOSE-WASHER Price: Call Us |
| 18 | 534500261 | Screw Price: $3.33 |
| 19 | 534450013 | Motor Ass'y. Price: $3.33 |
| 20 | 534520020 | Lockwasher Price: $1.99 |
| 21 | 534828700 | Washer Price: $1.99 |
| 22 | 534826800 | Screw Price: $1.99 |
| 23 | 534368003 | Guard & Blade Ass'y. Price: $3.33 |
| 24 | 534166800 | Wrench Price: $0.52 |
| 25 | 534832900 | RearPlate/Baffle Ass'y Price: $3.33 |
| 26 | 952710512 | Spool & Line Price: Call Us |
| 27 | 534167700 | Foam Pad Price: $3.33 |
| 28 | 534316200 | O-Ring Price: $0.99 |
| 29 | 534166700 | Adapter Nut Price: $1.99 |
| 30 | 534819200 | Spring Price: $1.99 |
| 31 | 534167935 | Hub Ass'y. Price: $3.33 |
| 32 | 534872701 | Armature Endbell Price: $3.33 |
| 33 | 534367803 | Field Ass'y. Price: $3.33 |
| 34 | 534810031 | Lead Wire Ass'y. Price: $3.33 |
| 35 | 534494616 | Washer Price: $1.99 |
| 36 | 534260007 | Brush Holder Ass'y. Price: $2.99 |
| 37 | 534570009 | Brush Spring Price: $1.99 |
| 38 | 534200018 | Brush Price: $1.99 |
| 39 | 534872601 | Endbell Ass'y. (Brush) Price: $3.99 |
