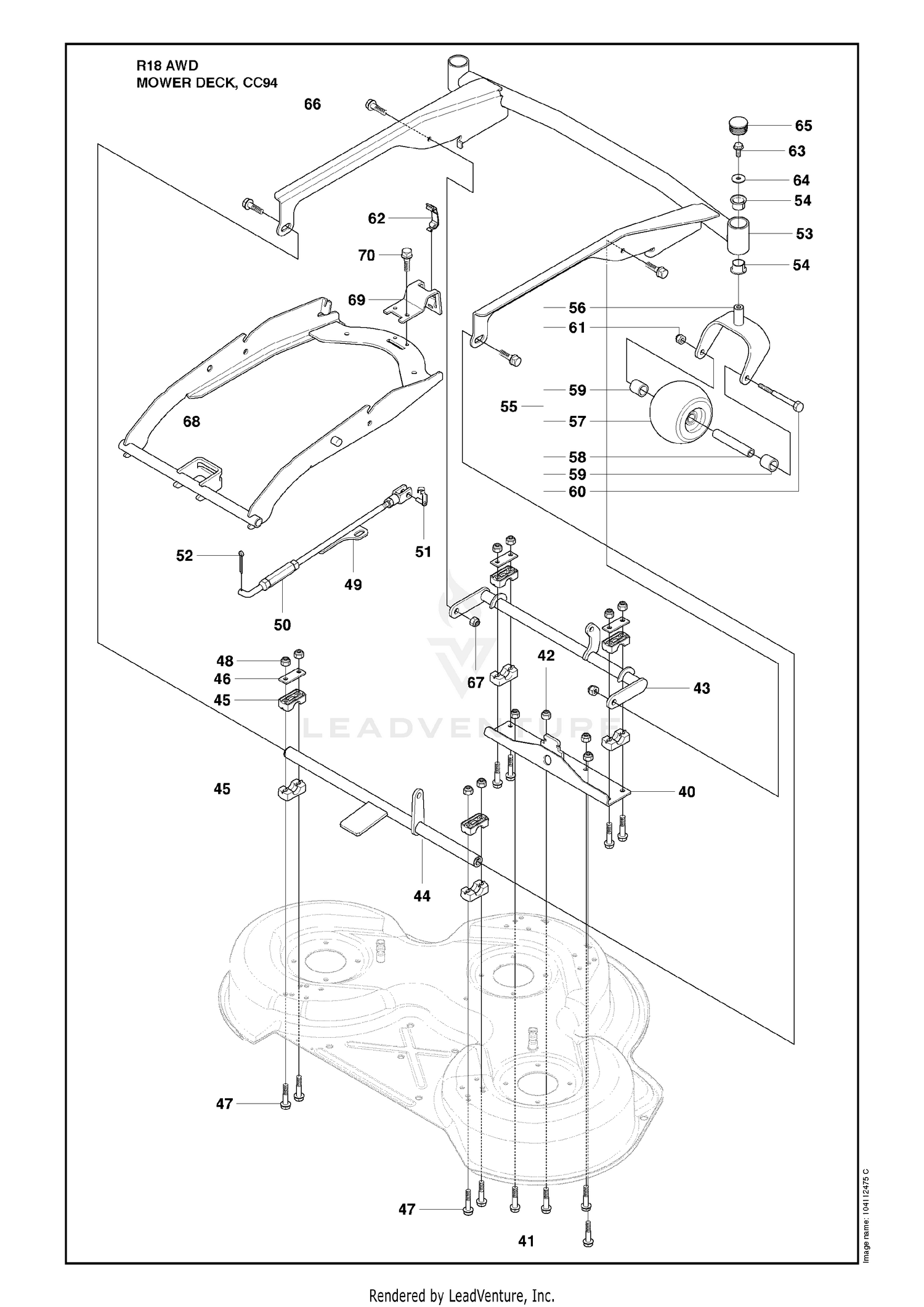

Mower Deck, CC94 Image 1
Parts (96)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-6272 | HYD MOTOR ASM This part replaces 98-9999. Price: $846.73 |
| 1 | 581237401 | DECK SHELL ASSY This part replaces 544065701. Price: $449.99 |
| 2 | 340-98 | FITTING-ELBOW, 90 DEG Price: $31.91 |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 544065801 | PLUG C93 & C94 Price: $44.99 |
| 4 | 340-92 | FITTING-STRAIGHT Price: $12.29 |
| 4 | 544066101 | KNOB Price: $4.99 |
| 5 | 105-7902 | HYD HOSE ASM This part replaces 99-5629. Price: $77.63 |
| 5 | 576384101 | BLADE HOUSING ASSY This part replaces 544065902. Price: $84.99 |
| 6 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 6 | 92-7560 | HYD HOSE ASM Price: $99.17 |
| 7 | 105-7901 | HYD HOSE ASM This part replaces 99-5630. Price: $185.30 |
| 7 | 544067901 | SHAFT Price: $39.99 |
| 8 | 105-7901 | HYD HOSE ASM This part replaces 92-7555. Price: $185.30 |
| 8 | 544068001 | SPACER Price: $11.99 |
| 8 | 92-7559 | HYD HOSE ASM Price: $121.91 |
| 9 | 738230434 | BEARING Price: $17.99 |
| 10 | 3290-378 | TIE-CABLE Price: $0.79 |
| 10 | 576384102 | BLADE HOUSING ASSY This part replaces 544065901. Price: $79.99 |
| 11 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 12 | 535428702 | AXLE Price: $49.99 |
| 13 | 535428801 | SPACER Price: $7.99 |
| 14 | 738220519 | BALL BEARING Price: $6.99 |
| 14 | 93-4219 | TUBE ASM Price: $116.65 |
| 15 | 535423801 | BOLT Price: $4.99 |
| 15 | 93-4223 | FRONT DRAIN TUBE ASM Price: $94.84 |
| 16 | 340-68 | FITTING-TEE, BULKHEAD Price: $36.00 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 340-70 | NUT-LOCK Price: $2.10 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 18 | 240-5 | GROMMET Price: $13.66 |
| 18 | 506922101 | PULLEY Price: $29.99 |
| 19 | 506533501 | KEY Price: $3.99 |
| 19 | 69-8960 | SPACER Price: $5.29 |
| 20 | 544068002 | SPACER Price: $9.99 |
| 20 | 69-8930 | WASHER Price: $0.81 |
| 21 | 340-127 | NUT-BULKHEAD Price: $2.24 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 544114101 | SCREW Price: $3.99 |
| 22 | 93-9151 | FITTING-HYD Price: $40.90 |
| 23 | 535504202 | ADAPTER Price: $19.99 |
| 24 | 579652510 | BLADE This part replaces 505544501. Price: $22.99 |
| 25 | 56-7972 | CLAMP-TUBE Price: $13.55 |
| 25 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 26 | 322-7 | SCREW-HH Price: $0.89 |
| 26 | 544114101 | SCREW Price: $3.99 |
| 27 | 3296-47 | NUT-LOCK, NI Price: $3.59 |
| 27 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 28 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 28 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 29 | 99-5617 | SLEEVE-PROTECTIVE Price: $33.82 |
| 30 | 3290-379 | TIE-CABLE Price: $0.31 |
| 30 | 734116441 | SPACER Price: $3.99 |
| 31 | 506558302 | BOLT Price: $3.99 |
| 32 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 33 | 725245171 | SCREW Price: $2.08 |
| 34 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 505208601 | Price: Call Us |
| 37 | 544066301 | BELT COVER C93 & C94 GREY Price: $44.99 |
| 38 | 544400501 | SCREW Price: $3.99 |
| 40 | 523095301 | BRACKET Price: $64.99 |
| 41 | 725245171 | SCREW Price: $2.08 |
| 42 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 43 | 502641802 | Price: Call Us |
| 44 | 523094901 | Price: Call Us |
| 45 | 506869601 | BEARING Price: $8.99 |
| 46 | 506813801 | PLATE Price: $5.99 |
| 47 | 725246151 | BOLT Price: $4.99 |
| 48 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 49 | 523114201 | PARALLELL ROD ASSY Price: $49.99 |
| 50 | 502642301 | PARALLEL ROD Price: $12.99 |
| 51 | 506839802 | JOINT CPL This part replaces 506839801. Price: $19.99 |
| 52 | 721618301 | Split Pin Price: $1.99 |
| 53 | 523086501 | DECK FRAME Price: $219.99 |
| 54 | 574561901 | BEARING Price: $5.99 |
| 55 | 596316403 | PIVOT WHEEL ASSY BEARING SLEEV This part replaces 574210101. Price: $64.99 |
| 56 | 535504601 | CLEVIS Price: $59.99 |
| 57 | 506963001 | DECK ROLLER, FRONT Price: $54.99 |
| 58 | 506810802 | PIPE Price: $7.99 |
| 59 | 506874102 | SPACER Price: $5.99 |
| 60 | 725251951 | BOLT Price: $9.99 |
| 61 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 62 | 503894703 | CLIP GRAY Price: $9.99 |
| 63 | 506570104 | BOLT Price: $4.99 |
| 64 | 734116441 | SPACER Price: $3.99 |
| 65 | 574034801 | PLUG Price: $3.99 |
| 66 | 535475212 | SCREW EHHFM This part replaces 725236861. Price: $2.99 |
| 67 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 68 | 523087501 | DECK ATTACHMENT Price: $119.99 |
| 69 | 523114601 | LOCK Price: $9.99 |
| 70 | 535475212 | SCREW EHHFM This part replaces 725236861. Price: $2.99 |
| 72 | 506789701 | Decal Price: $21.55 |
| 73 | 574210301 | Price: Call Us |
| 74 | 506929001 | DECAL Price: $3.99 |
