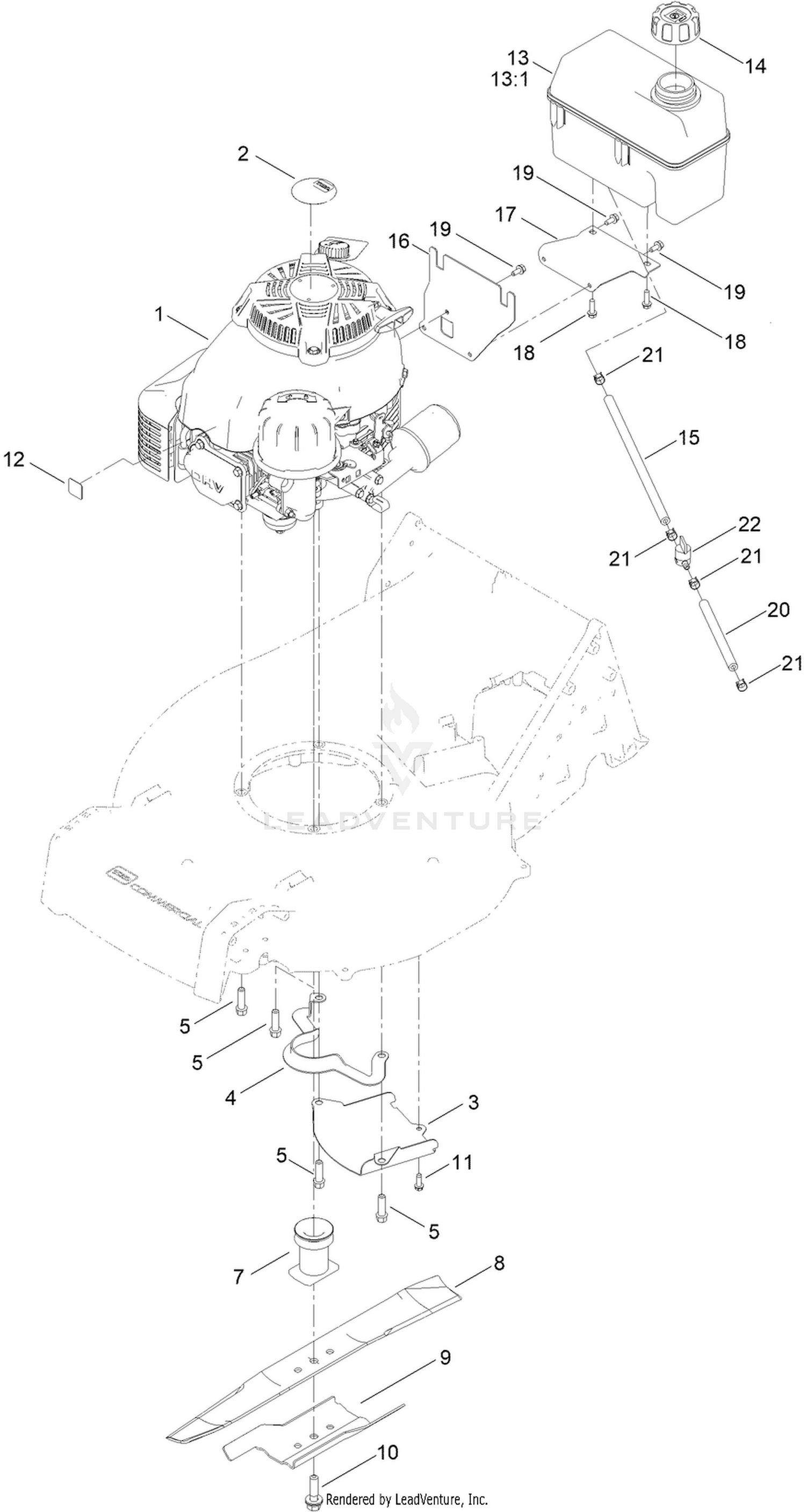

Engine and Blade Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 110-0520 | DECAL Price: $20.04 |
| 3 | 125-1005-03 | SHIELD-GRASS Price: $13.38 |
| 4 | 108-8110-03 | GUIDE-BELT Price: $10.46 |
| 5 | 95-1727 | SCREW-TAPTITE Price: $1.79 |
| 7 | 139-1816 | DRIVER-BLADE Price: $14.21 |
| 8 | 133-8183-03 | BLADE-RECYCLING, 21IN Price: $19.68 |
| 9 | 125-1069-03 | ACCELERATOR-BLADE Price: $11.38 |
| 10 | 125-2466 | BOLT-BLADE Price: $2.20 |
| 11 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 12 | 125-8403 | DECAL-PRIMER Price: $2.00 |
| 13 | 117-3510 | TANK-FUEL Price: $90.99 |
| 14 | 93-7198 | CAP-GAS Price: $14.99 |
| 15 | 109-0297 | HOSE-FUEL Price: $4.73 |
| 16 | 125-8381-03 | BRACKET-TANK, MOUNTING Price: $8.72 |
| 17 | 125-8382-03 | BRACKET-TANK, SUPPORT Price: $7.11 |
| 18 | 46-8091 | SCREW-HWH Price: $3.59 |
| 19 | 125-8383 | SCREW-HWH Price: $1.24 |
| 20 | 107-0588 | HOSE-FUEL Price: $5.67 |
| 21 | 2412-98 | CLAMP-HOSE Price: $1.39 |
