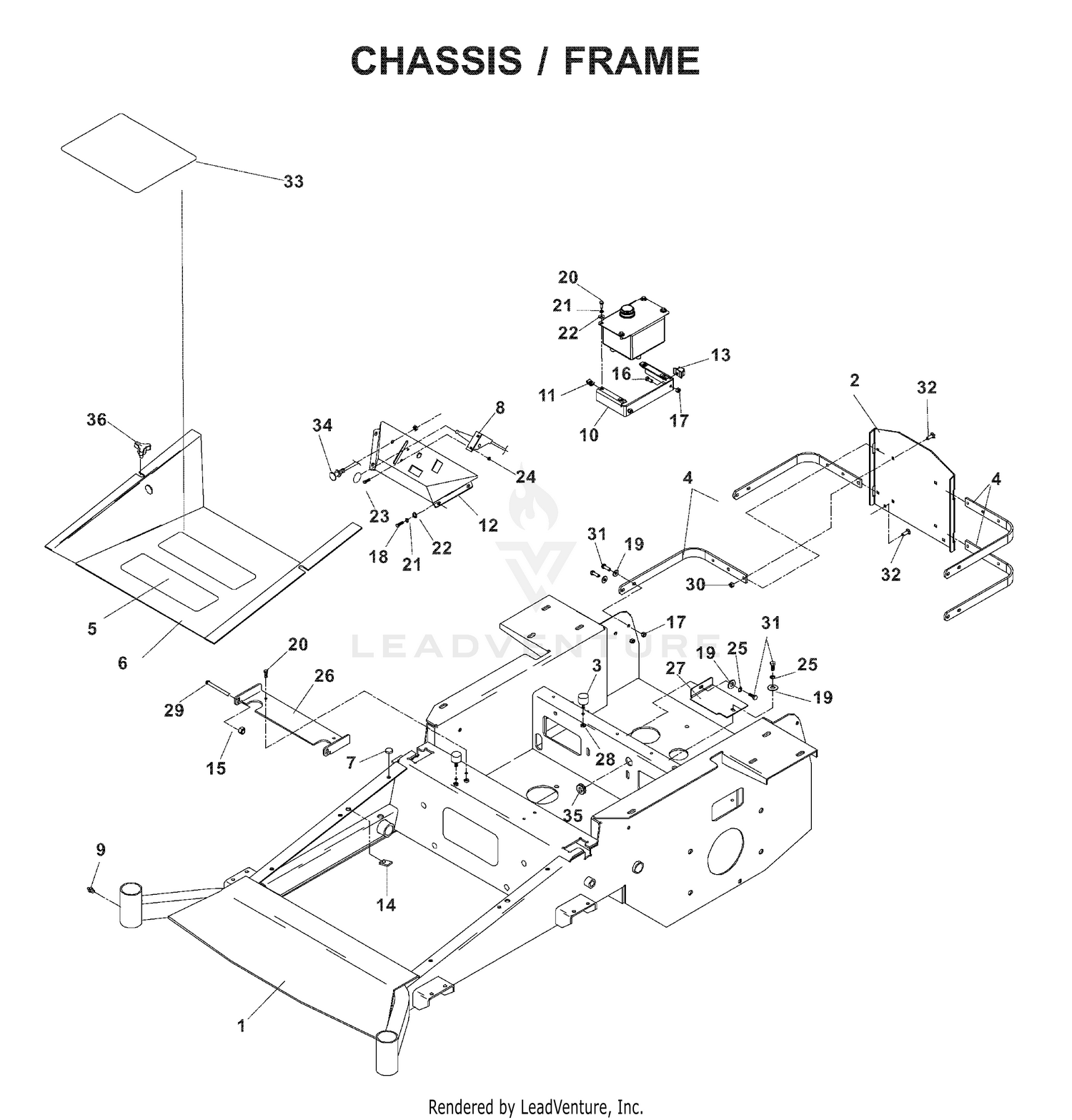

| Ref | Part Number | Description |
|---|
| 1 |
539111143 |
FRAME W/DECALS Price: $1,299.99 |
| 2 |
125-9202-03 |
TUBE-CROSS Price: $411.09 |
| 2 |
539110976 |
XP GUARD, BLACK Price: $35.99 |
| 3 |
127-4853 |
GUIDE-HOSE Price: $87.52 |
| 3 |
539105039 |
STUD/PLATE MOUNT Price: $4.99 |
| 4 |
539106961 |
ENGINE SHROUD BRKT Price: $17.99 |
| 5 |
323-45 |
SCREW-HH Price: $0.68 |
| 5 |
539977778 |
ANTI-SKID PAD Price: $3.99 |
| 6 |
539111574 |
FOOTPLATE W/DECALS Price: $199.99 |
| 7 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 8 |
597524002 |
THROTTLE This part replaces 539102732. Price: $37.99 |
| 9 |
596623501 |
Zerks This part replaces 539101474. Price: $2.99 |
| 10 |
539110814 |
TANK MOUNT Price: $18.99 |
| 12 |
539111147 |
CONSOLE W/DECALS Price: $54.99 |
| 13 |
539110815 |
PUSH-MOUNT WIRE CLIP Price: $2.99 |
| 14 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 16 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 17 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 18 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 19 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 20 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 21 |
596564801 |
Washers This part replaces 539990052. Price: $1.99 |
| 22 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 23 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 24 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 25 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 26 |
539105224 |
SEAT BRKT W/DECAL This part replaces 539105038. Price: $24.99 |
| 27 |
539105716 |
IDLER COVER Price: $19.99 |
| 28 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 29 |
539102612 |
SCREW 3/8C X 2 3/4 HEX CAP Price: $4.99 |
| 30 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 31 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 32 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 33 |
539112654 |
FLO0R PAN PAD Price: $69.99 |
| 34 |
539102733 |
CHOKE CONTROL, COMPLETE Price: $49.99 |
| 35 |
539110433 |
GROMMET, FUEL LINE Price: $3.99 |
| 36 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
