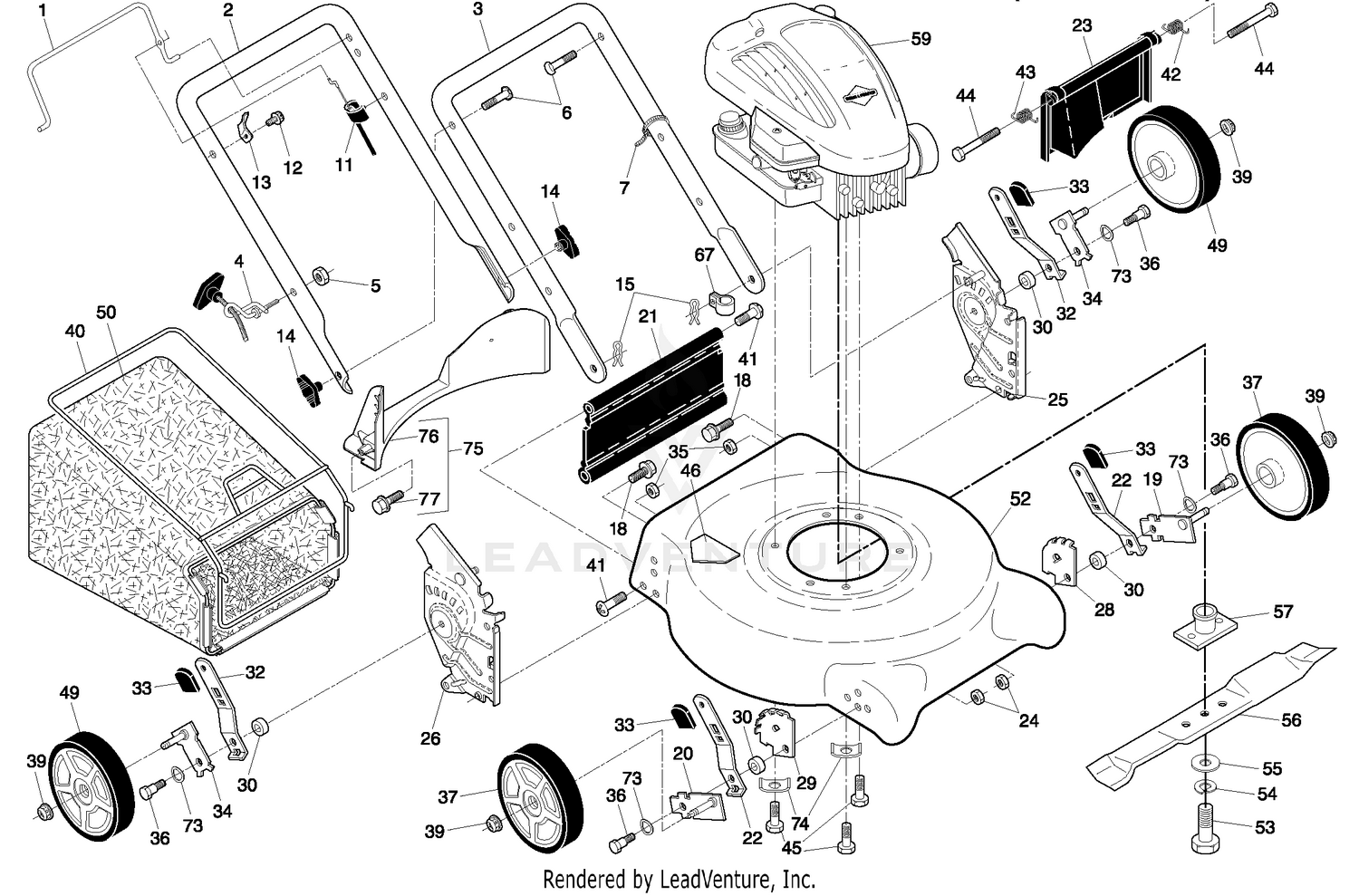

| Ref | Part Number | Description |
|---|
| 1 |
194177X421 |
Control Bar Price: Call Us |
| 1 |
23-13-AJD |
Hex Nut 3/8-16 Price: Call Us |
| 2 |
194179X479 |
Upper Handle Price: Call Us |
| 2 |
3253-11 |
DISCONTINUED This part replaces 23-11-GD. Price: Call Us |
| 3 |
169708X479 |
Lower Handle Price: Call Us |
| 3 |
3217-5 |
NUT-HEX This part replaces 22-11-AJD. Price: $0.25 |
| 4 |
194788 |
Rope Guide Price: Call Us |
| 4 |
3253-3 |
WASHER-LOCK This part replaces 23-9-GD. Price: $0.31 |
| 5 |
132004 |
Nut, Hex Price: Call Us |
| 5 |
42-1720 |
CORE-FIELD, COIL Price: $387.41 |
| 6 |
191574 |
Handle Bolt Price: Call Us |
| 6 |
321-32 |
SCREW-HH This part replaces 20-2-AGD. Price: $0.25 |
| 7 |
43-6200 |
SPRING-COMPRESSION Price: $20.42 |
| 7 |
664-26 |
Wire Tie Price: Call Us |
| 8 |
144-6182 |
PLATE-CLUTCH This part replaces 43-6110. Price: $25.59 |
| 9 |
256-273 |
BUSHING-FLANGE Price: $4.55 |
| 10 |
69-9170 |
SHAFT-CRUISE Price: $17.03 |
| 11 |
176556 |
Cable, Engine Zone Control Price: Call Us |
| 11 |
43-6320 |
COLLAR Price: $24.71 |
| 12 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 12 |
750634 |
Hex Washer Head Screw Price: Call Us |
| 13 |
3217-44 |
NUT-HEX This part replaces 22-9-AJD. Price: $1.29 |
| 13 |
86899X004 |
Up-Stop Bracket Price: Call Us |
| 14 |
182398 |
Knob, Handle Price: Call Us |
| 14 |
3245-31 |
SCREW-HSH Price: $12.15 |
| 15 |
3217-6 |
NUT-HEX This part replaces 22-12-AJD. Price: $1.19 |
| 15 |
51793 |
Hairpin Cotter Price: Call Us |
| 16 |
92-0450-03 |
BRACKET-PIN This part replaces 92-0450. Price: $19.10 |
| 17 |
3256-23 |
WASHER-PLAIN This part replaces 24-10-BD. Price: $0.28 |
| 18 |
17600406 |
Screw Price: Call Us |
| 18 |
3253-4 |
WASHER-LOCK This part replaces 23-10-GD. Price: $0.25 |
| 19 |
322-3 |
SCREW-HH This part replaces 20-24-AGD. Price: $0.79 |
| 19 |
401174X004 |
Axle Arm Assembly, Front, LH Price: Call Us |
| 20 |
32136-4 |
NUT-HEX,SLOTTED Price: $1.56 |
| 20 |
401175X004 |
Axle Arm Assembly, Front, RH Price: Call Us |
| 21 |
3272-7 |
PIN-COTTER This part replaces 28-10-D. Price: $0.25 |
| 21 |
418655 |
Kit, Rear Skirt Price: Call Us |
| 22 |
401621X004 |
Selector Spring, Front Price: Call Us |
| 22 |
99-5347-03 |
TRACTION PEDAL ASM This part replaces 92-0446. Price: $219.38 |
| 23 |
401814X428 |
Rear Door Assembly Price: Call Us |
| 23 |
94-7005-03 |
DISCONTINUED This part replaces 94-7005. Price: Call Us |
| 24 |
166785 |
Nut, Hex 5/16-18 Price: Call Us |
| 24 |
3219-5 |
NUT-HEX This part replaces 22-15-BJKD. Price: $1.22 |
| 25 |
410387X479 |
Handle Bracket Assembly, LH Price: Call Us |
| 25 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 26 |
410388X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 26 |
92-0448 |
PIN-PIVOT Price: $100.36 |
| 27 |
283-58 |
PIN-CLEVIS This part replaces 40258. Price: $3.87 |
| 28 |
20-85-BGD |
Cap Screw, 1/2 UNF x 1" Price: Call Us |
| 28 |
407499X005 |
Wheel Adjusting Bracket, Front, LH Price: Call Us |
| 29 |
3256-26 |
WASHER-FLAT This part replaces 24-13-BD. Price: $0.39 |
| 29 |
407500X005 |
Wheel Adjusting Bracket, Front, RH Price: Call Us |
| 30 |
401629 |
Spacer Price: Call Us |
| 30 |
93-6595 |
EQUALIZER-BRAKE Price: $79.24 |
| 31 |
94-7003 |
EMERGENCY BRAKE PEDAL ASM. - WELDED Price: $43.60 |
| 32 |
323-6 |
SCREW-HH This part replaces 20-47-AGD. Price: $0.66 |
| 32 |
401623X004 |
Selector Spring, Rear Price: Call Us |
| 33 |
701037X421 |
Selector Knob Price: Call Us |
| 33 |
93-6599-03 |
CATCH This part replaces 93-6599. Price: $185.89 |
| 34 |
28-22-D |
Cotter Pin, 1/8 x 2-1/2" Price: Call Us |
| 34 |
401173X004 |
Axle Arm Assembly, Rear, LH Price: Call Us |
| 35 |
73930500 |
Locknut, Hex 5/16-18 Price: Call Us |
| 35 |
93-6598-0P |
BRAKE STRAP ASM. - EMERGENCY, WELDED This part replaces 93-6598. Price: $197.74 |
| 36 |
401638 |
Shoulder Bolt 5/16-18 Price: Call Us |
| 36 |
92-0417 |
SPRING-EXT Price: $15.08 |
| 37 |
1049-P |
Clevis Pin Price: Call Us |
| 37 |
193931X421 |
Wheel & Tire Assembly, Front 7 x 1-3/4 Price: Call Us |
| 38 |
3256-29 |
WASHER-FLAT This part replaces 24-17-BD. Price: $2.59 |
| 39 |
409148 |
Flanged Locknut, Hex Price: Call Us |
| 39 |
94-7164 |
BEARING Price: $7.53 |
| 40 |
3272-11 |
PIN-COTTER This part replaces 28-18-D. Price: $0.99 |
| 40 |
411949 |
Frame, Grassbag Price: Call Us |
| 41 |
42195 |
PIN-CLEVIS Price: $6.11 |
| 41 |
88652 |
Hinge Screw Price: Call Us |
| 42 |
405421 |
Spring, Rear Door, LH Price: Call Us |
| 42 |
93-6589 |
SHAFT-BRAKE Price: $247.70 |
| 43 |
405423 |
Spring, Rear Door, RH Price: Call Us |
| 43 |
93-6592-03 |
BRACKET This part replaces 93-6592. Price: $18.07 |
| 44 |
184193 |
Bolt, Rear Door Price: Call Us |
| 44 |
32104-4 |
SCREW This part replaces 34-99-AMVD. Price: $0.47 |
| 45 |
150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1 Price: Call Us |
| 45 |
3256-3 |
WASHER-FLAT This part replaces 24-10-AD. Price: $0.49 |
| 46 |
3253-17 |
WASHER-LOCK This part replaces 23-7-GD. Price: $0.25 |
| 46 |
404763 |
Danger Decal Price: Call Us |
| 47 |
1-513051 |
SWITCH-OPEN, NORMALLY This part replaces 41103. Price: $17.99 |
| 48 |
107-8657 |
CABLE-BRAKE, RH This part replaces 93-6594. Price: $121.27 |
| 49 |
193905X421 |
Wheel & Tire Assembly, Rear 8 x 1-3/4 Price: Call Us |
| 49 |
522087 |
ROD-END Price: $43.45 |
| 50 |
110-5189 |
SWITCH-FLOOR This part replaces 94-7170. Price: $21.35 |
| 50 |
411060 |
Grassbag Price: Call Us |
| 51 |
32104-4 |
SCREW This part replaces 34-99-AMVD. Price: $0.47 |
| 52 |
3253-17 |
WASHER-LOCK This part replaces 23-7-GD. Price: $0.25 |
| 53 |
851084 |
Hex Head Screw 3/8-24 x 1-3/8 Grade 8 Price: Call Us |
| 54 |
850263 |
Helical Lockwasher Price: Call Us |
| 55 |
851074 |
Hardened Washer Price: Call Us |
| 57 |
851514 |
Blade Adapter Price: Call Us |
| 67 |
197991 |
Clip, Cable Price: Call Us |
| 73 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 74 |
851201X004 |
Washer, Special, Engine Price: Call Us |
| 76 |
410589 |
Baffle, Rear Price: Call Us |
| 77 |
17411312 |
Screw, Rear Baffle Price: Call Us |
| 77 |
193732 |
Operator's Manual, English Price: Call Us |
| 77 |
193734 |
Operator's Manual, French Price: Call Us |
