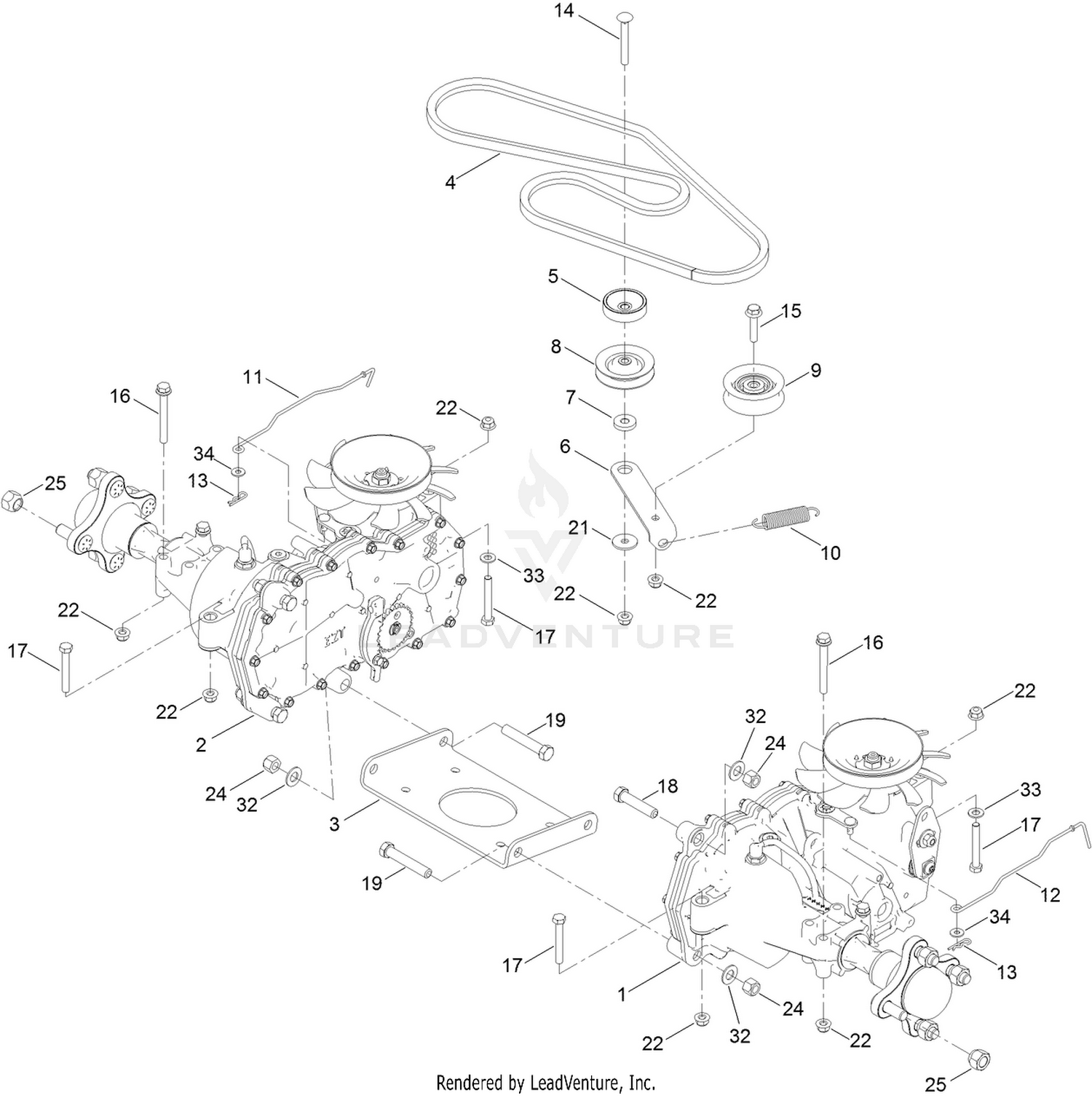

Traction Drive Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 139-7460 | LH HYDRO TRANSAXLE ASM Price: $876.54 |
| 2 | 139-7461 | RH HYDRO TRANSAXLE ASM Price: $876.54 |
| 3 | 138-2571-03 | CROSSPLATE-HYDRO Price: $17.89 |
| 4 | 139-2399 | V-BELT Price: $25.73 |
| 5 | 138-9809 | SPACER Price: $3.68 |
| 6 | 138-7276 | ARM-IDLER Price: $3.74 |
| 7 | 138-7277 | SPACER-ARM, IDLER Price: $1.01 |
| 8 | 68-0030-03 | IDLER This part replaces 68-0030. Price: $17.98 |
| 9 | 138-7597 | PULLEY-IDLER, FLAT Price: $10.22 |
| 10 | 137-7040 | SPRING-RETURN, PEDAL Price: $4.89 |
| 11 | 138-7245 | ROD-BYPASS, RH Price: $5.32 |
| 12 | 138-7243 | ROD-BYPASS, LH Price: $5.32 |
| 13 | 137-3083 | PIN-HAIR Price: $0.34 |
| 14 | 139-2588 | SCREW-CARR Price: $1.12 |
| 15 | 140-5024 | SCREW-HHF Price: $0.77 |
| 16 | 138-7590 | SCREW-HHF Price: $1.10 |
| 17 | 120-9738 | SCREW-HH Price: $0.84 |
| 18 | 139-2605 | SCREW-HH Price: $1.36 |
| 19 | 139-2603 | SCREW-HH Price: $1.46 |
| 21 | 5-4460 | WASHER-PIVOT Price: $6.19 |
| 22 | 119-4041 | NUT-HF Price: $0.48 |
| 24 | 119-4039 | NUT-HEX, NI Price: $0.28 |
| 25 | 139-2564 | NUT-LUG Price: $0.99 |
| 32 | 139-2610 | WASHER-FLAT Price: $0.29 |
| 33 | 120-9683 | WASHER-PLAIN Price: $0.25 |
