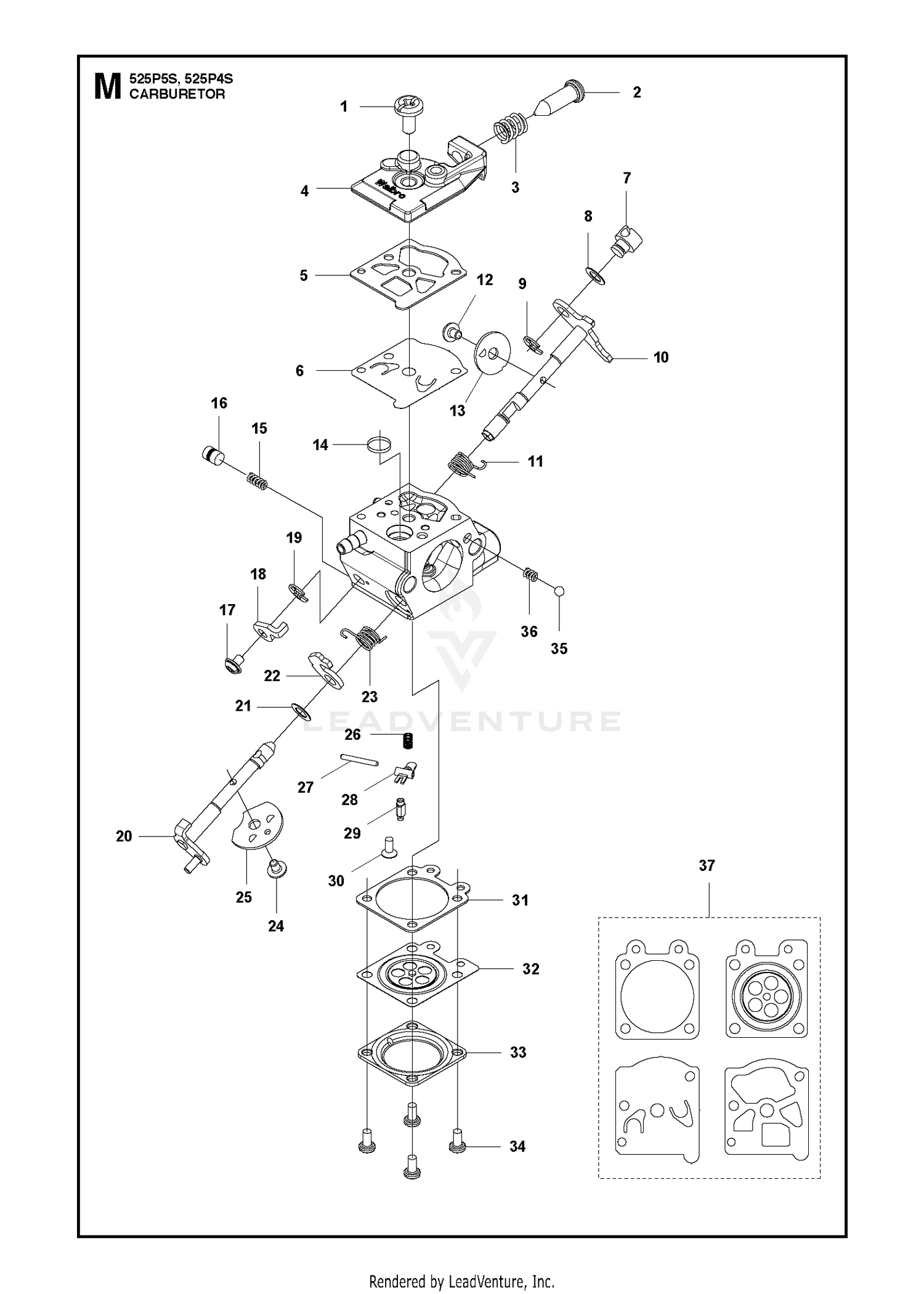

CARBURETOR
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520976301 | SCREW Price: $2.99 |
| 1 | 95-7532 | DISCONTINUED Price: Call Us |
| 2 | 577815701 | SCREW, IDLE Price: $8.99 |
| 2 | 99-7594 | SEAL-OIL Price: $5.99 |
| 3 | 513593201 | SPRING Price: $4.99 |
| 3 | 99-7535 | PLUG Price: $8.15 |
| 4 | 579190601 | COVER PUMP Price: $19.99 |
| 4 | 99-7536 | WASHER-SEAL Price: $2.58 |
| 5 | 520954801 | GASKET Price: $9.99 |
| 5 | 95-7528 | GEAR-BEVEL, 27 TOOTH Price: $333.09 |
| 6 | 504130807 | PUMP DIAPHRAGM Price: $27.99 |
| 6 | 99-7532 | BEARING-ROLLER, TAPER Price: $45.81 |
| 7 | 513400801 | SWIVEL Price: $11.99 |
| 7 | 95-7526 | COVER-AXLE Price: $87.93 |
| 8 | 106-1072 | O-RING This part replaces 99-7537. Price: $21.08 |
| 8 | 516524201 | WASHER Price: $2.99 |
| 9 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 9 | 99-7589 | PLUG Price: $3.73 |
| 10 | 579190701 | SHAFT ASSEMBLY,THROTTLE Price: $22.99 |
| 10 | 99-7590 | WASHER-SEAL Price: $2.94 |
| 11 | 577815501 | SPRING Price: $3.99 |
| 12 | 520759801 | SCREW Price: $2.99 |
| 13 | 520978601 | VALVE Price: $2.99 |
| 14 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 15 | 505057901 | SPRING Price: $2.99 |
| 16 | 521578301 | PISTON This part replaces 584901201. Price: $6.99 |
| 17 | 520759801 | SCREW Price: $2.99 |
| 18 | 579190801 | LEVER THROTTLE Price: $19.99 |
| 19 | 505056501 | E-RING Price: $3.99 |
| 20 | 579191001 | SHAFT ASSEMBLY,CHOKE Price: $22.99 |
| 21 | 516524201 | WASHER Price: $2.99 |
| 22 | 584901301 | LEVER Price: $19.99 |
| 23 | 579191101 | SPRING Price: $5.99 |
| 24 | 520759801 | SCREW Price: $2.99 |
| 25 | 581154901 | VALVE Price: $8.99 |
| 27 | 520977401 | PIN Price: $4.99 |
| 28 | 577807201 | LEVER Price: $1.99 |
| 29 | 521085401 | VALVE INLET Price: $11.99 |
| 30 | 577807101 | SCREW Price: $2.99 |
| 31 | 516972101 | GASKET Price: $4.99 |
| 32 | 577807001 | DIAPHRAGM Price: $14.99 |
| 33 | 514189201 | COVER Price: $6.99 |
| 34 | 520978801 | SCREW ASSY Price: $2.99 |
| 35 | 514242601 | BALL Price: $5.99 |
| 36 | 514243301 | CHOKE SPRING Price: $5.99 |
