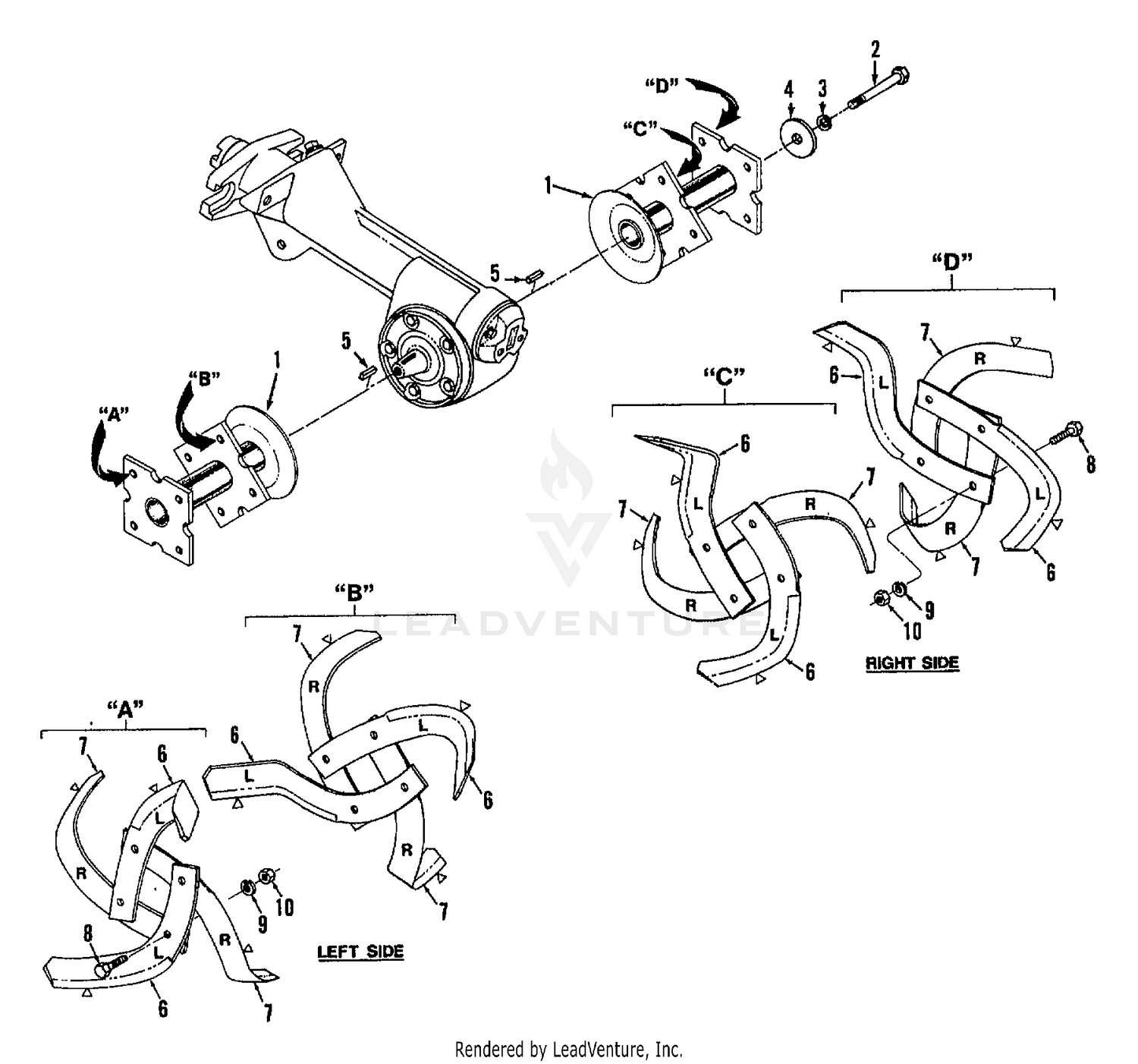

TINE ASSEMBLIES
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | GW-2415 | HOLDER-TINE RED Not Available Price: |
| 2 | GW-9669 | SCREW-HH 1/2-20X4.75 Not Available Price: |
| 3 | 736-0921 | Lock Washer, 1/2 This part replaces GW-9914. Price: $3.90 |
| 4 | GW-9952 | WASHER-1.5X.531X.1 Not Available Price: |
| 5 | GW-9301 | KEY-.188 SQX1.0 Price: $3.46 |
| 8 | 710-0514 | SCREW 3/8-16 x 1 GR5 This part replaces GW-9711. Price: $3.78 |
| 9 | 736-0169 | L-Wash. 3/8" I.D." This part replaces GW-9913. Price: $3.33 |
| 10 | 712-3017 | HEX NUT 3/8-16 GR5 This part replaces GW-9802. Price: $3.90 |
