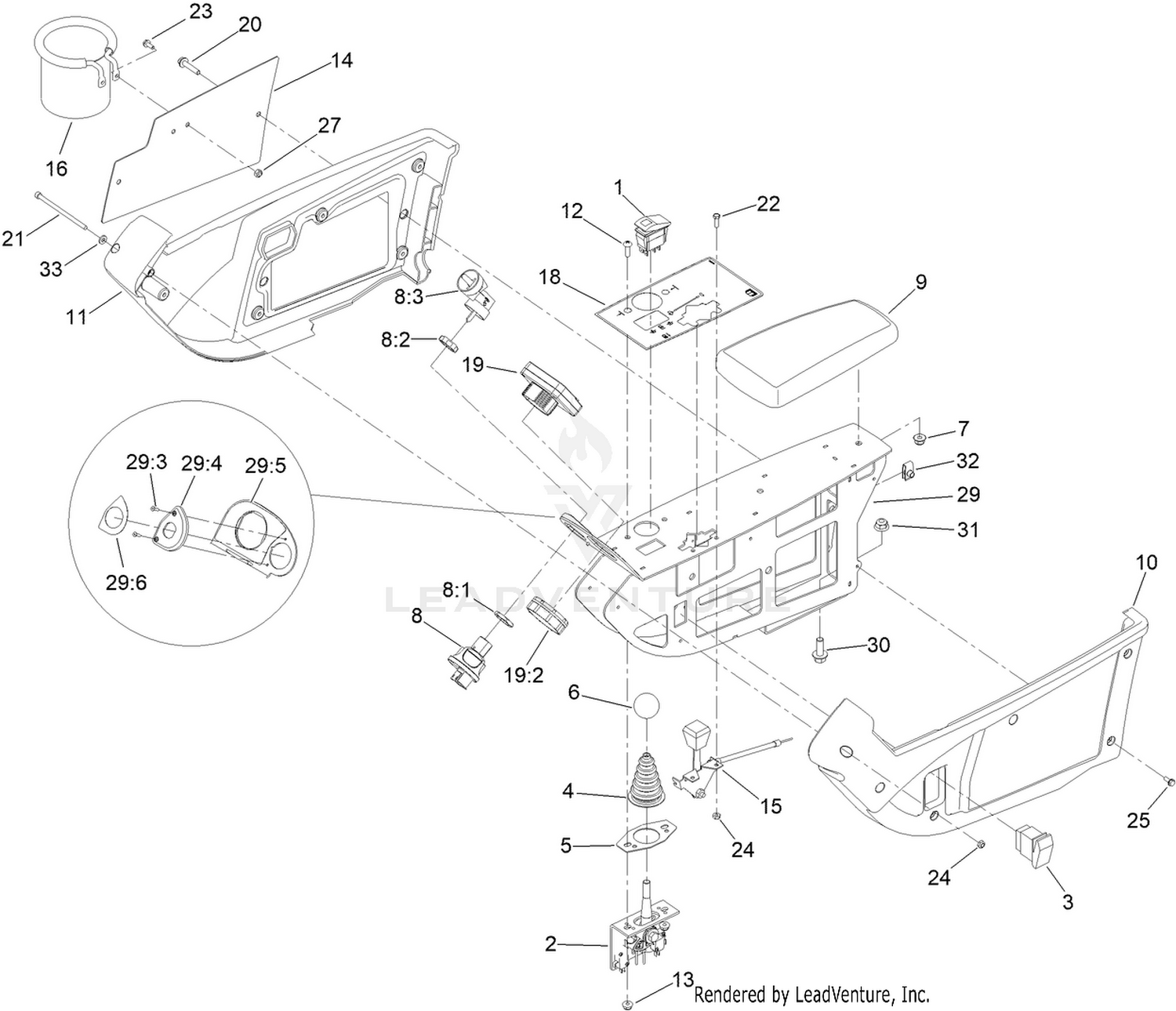

Control Console Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 105-4232 | SWITCH Price: $88.64 |
| 2 | 120-5280 | BRACKET-JOYSTICK Price: $203.76 |
| 3 | 95-8999 | SWITCH Price: $42.14 |
| 4 | 93-5961 | BOOT-LEVER Price: $56.35 |
| 5 | 112-9181 | PLATE-BOOT Price: $4.90 |
| 6 | 233-42 | KNOB Price: $12.88 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 121-5159 | IGNITION SWITCH ASM Price: $84.21 |
| 9 | 108-7602 | REST-ARM Price: $158.43 |
| 10 | 108-7604 | COVER-LH Price: $55.56 |
| 11 | 108-7605 | COVER-RH Price: $55.56 |
| 12 | 3258-166 | SCREW-PRH Price: $0.28 |
| 13 | 104-7201 | NUT-HF Price: $0.69 |
| 14 | 115-8849-03 | PLATE-COVER Price: $23.24 |
| 15 | 130-1673 | CABLE-THROTTLE Price: $111.22 |
| 16 | 161-8355 | CUP HOLDER ASM Price: $12.36 |
| 18 | 121-5644 | DECAL-CONTROL PANEL Price: $30.69 |
| 19 | 161-1700 | DISPLAY-LCD Price: $584.72 |
| 20 | 3234-21 | SCREW-HHF Price: $2.19 |
| 21 | 161-8374 | SCREW-HSH Price: $2.90 |
| 22 | 3290-134 | SCREW Price: $0.27 |
| 23 | 3290-321 | SCREW-HWH Price: $3.99 |
| 24 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 25 | 32144-112 | SCREW-HWH Price: $0.99 |
| 27 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 29 | 130-1612 | PANEL ASM Price: $280.94 |
| 30 | 3234-42 | SCREW-HHF Price: $1.10 |
| 31 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 32 | 107069 | CLIP Price: $1.79 |
