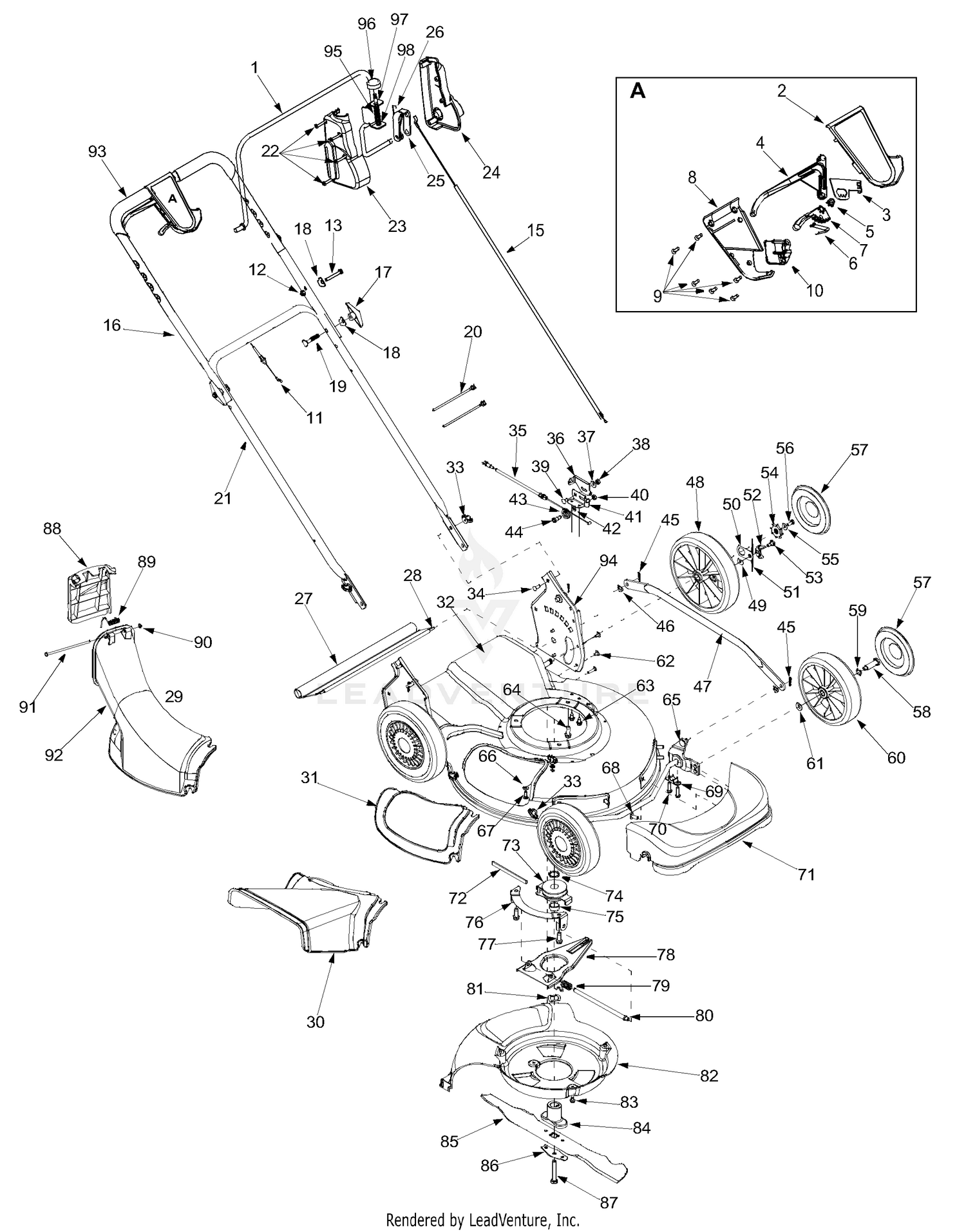

| Ref | Part Number | Description |
|---|
| 1 |
647-0070 |
BAIL ASSEMBLY Not Available Price: |
| 2 |
753-0717 |
HOUSING CONTROL KIT Not Available This part replaces 731-0904A. Price: |
| 4 |
731-0620A |
Drive Lever This part replaces 731-0620. Price: $13.59 |
| 5 |
913-0397 |
Gear Insert This part replaces 713-0397. Price: $4.51 |
| 6 |
732-0627A |
Spring This part replaces 732-0627. Price: $8.50 |
| 8 |
753-0717 |
HOUSING CONTROL KIT Not Available This part replaces 731-0905A. Price: |
| 9 |
710-1667A |
C Sunk Tap Screw #10 x .75 Lg Price: $3.82 |
| 10 |
753-0717 |
HOUSING CONTROL KIT Not Available This part replaces 731-0906. Price: |
| 11 |
946-0711B |
Drive Cable 51.0 This part replaces 746-0711A. Price: $29.84 |
| 12 |
712-0324 |
Hex Lock Nut 1/4-20 Gr. 8 Price: $3.38 |
| 13 |
710-0501 |
Hex Hd. Cap Screw 1/4-20 Gr. 5 Price: $6.24 |
| 15 |
946-1141 |
Smart Speed™ Control Cable This part replaces 746-1141. Price: $46.41 |
| 16 |
749-1405A-0637 |
UPPER HANDLE Not Available This part replaces 749-1405A. Price: |
| 17 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-0241. Price: $6.07 |
| 18 |
736-0451 |
Saddle Washer .320 ID x .830 OD Price: $3.75 |
| 19 |
710-1174 |
Carriage Bolt 5/16-18 x 2.0 Price: $6.28 |
| 21 |
749-0907B |
Lower Handle Price: $43.95 |
| 22 |
710-1256 |
Hi-Low Screw Price: $5.25 |
| 23 |
731-2533 |
CONTROL COVER (RH) Not Available Price: |
| 24 |
731-2532 |
CONTROL COVER (LH) Not Available Price: |
| 25 |
782-0156 |
LEVER (ZINC) Not Available Price: |
| 26 |
732-1172 |
TORSION SPRING .431"X .063" Not Available Price: |
| 27 |
731-1901A |
Trail Shield This part replaces 731-1901. Price: $35.34 |
| 28 |
732-0842 |
Trail Shield Wire Price: $5.38 |
| 29 |
931-0066 |
Chute Assembly This part replaces 631-0066. Price: $101.04 |
| 30 |
731-1832 |
DISCHARGE CHUTE 21" Not Available Price: |
| 31 |
931-1833A |
Mulch Cover This part replaces 731-1833. Price: $39.02 |
| 33 |
712-0397A |
WING NUT This part replaces 712-0397. Price: $3.71 |
| 34 |
710-0703 |
Carriage Bolt 1/4-20 x .75 Price: $3.66 |
| 36 |
782-7574A-0637 |
CABLE ADJUSTMENT BRACKET Not Available This part replaces 782-7574A. Price: |
| 37 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 38 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 39 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 40 |
712-0138 |
Hex Nut 1/4-28 Price: $5.99 |
| 41 |
782-7575B-0637 |
CABLE MOUNTING BRACKET Not Available This part replaces 782-7575A. Price: |
| 42 |
936-0329 |
Lock Washer This part replaces 736-0329. Price: $3.90 |
| 43 |
756-0625 |
Roller Cable Price: $8.52 |
| 44 |
738-0924A |
Shoulder Screw, 1/4-28, .340 x .355 This part replaces 738-0924. Price: $5.94 |
| 45 |
714-0104 |
Cotter Pin Price: $3.90 |
| 46 |
936-0286 |
Bowed Washer This part replaces 736-0286. Price: $6.01 |
| 47 |
782-0565-0637 |
CONTROL ARM Not Available This part replaces 782-0565. Price: |
| 48 |
734-2044B |
Rear Wheel Ass’y 9 x 2.125 (Drive/Zag/Blk) This part replaces 734-2044. Price: $44.87 |
| 49 |
712-0414 |
Top Lock Tab Weld Nut 1/4-20 Price: $3.86 |
| 50 |
16855 |
Ratchet Pawl Plate Price: $5.72 |
| 51 |
10622B |
Plastic Spring Ratchet Not Available Price: |
| 52 |
748-0381 |
Pawl RH Price: $11.07 |
| 53 |
738-0137A |
Shld Screw .340 ID x .285 OD Price: $9.83 |
| 54 |
948-0318 |
Wheel Rachet This part replaces 748-0318. Price: $8.90 |
| 55 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 56 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 57 |
731-0981C |
Hubcap, 8" This part replaces 731-0981A. Price: $9.24 |
| 58 |
738-0102 |
Shoulder Screw .498 x 1.445 Price: $9.22 |
| 59 |
936-0504 |
WAVE WASHER This part replaces 736-0504. Price: $3.90 |
| 60 |
734-2008A |
Wheel 8 x 2 Price: $51.05 |
| 61 |
736-0105 |
Spring Washer .401 ID x .870 OD Price: $3.96 |
| 62 |
710-1348 |
Screw 1/4-14 x .500 Price: $5.94 |
| 63 |
710-0896 |
Screw 1/4-14 x .625 Price: $3.86 |
| 64 |
710-0654A |
Hex Washer Screw 3/8-16 x 1.0 Price: $3.75 |
| 65 |
611-0064-0637 |
Front Axle Assembly This part replaces 611-0064. Price: $85.97 |
| 66 |
736-0204 |
Flat Washer .344 ID x .62 OD Price: $3.89 |
| 67 |
710-0703 |
Carriage Screw 1/4-20 x .75 Price: $3.66 |
| 68 |
710-1242 |
Torx Screw Price: $3.95 |
| 69 |
741-0492A |
Block Bushing Price: $5.41 |
| 70 |
710-1241 |
Hex Washer Screw Price: $5.77 |
| 71 |
731-1836 |
FRONT AXLE COVER Not Available Price: |
| 72 |
954-0460 |
Belt 3/8 x 39.24 This part replaces 754-0460. Price: $18.04 |
| 73 |
956-0613A |
Pulley Assembly This part replaces 656-0613. Price: $63.44 |
| 74 |
950-1071 |
Sleeve Spacer .88 ID x 1.13 OD This part replaces 750-1071. Price: $3.82 |
| 75 |
950-1070 |
Sleeve Spacer .88 ID x 1.00 OD This part replaces 750-1070. Price: $5.25 |
| 76 |
782-7597 |
Pivot Bracket Price: $8.20 |
| 77 |
710-0654A |
Screw 3/8-18 x 1.0 Price: $3.75 |
| 78 |
782-7596A |
CONTROL ARM 6 SPEED Not Available This part replaces 782-7596. Price: |
| 79 |
932-0807 |
TORSION SPRING (LH) Not Available This part replaces 732-0807. Price: |
| 80 |
711-1114 |
Pivot Shaft Price: $10.96 |
| 81 |
736-0526 |
Wave Washer 1.38 ID x .88 OD Price: $5.94 |
| 82 |
731-08190A |
Baffle This part replaces 731-1828. Price: $32.92 |
| 83 |
710-0653 |
Screw 1/4-20 x 3.75 Price: $3.78 |
| 84 |
753-0609 |
Blade Adapter Kit Price: $37.92 |
| 85 |
942-0741A |
Blade This part replaces 742-0741. Price: $27.55 |
| 86 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524A. Price: $5.34 |
| 87 |
710-1257 |
Hex Bolt 3/8-24 x 2.5 Price: $7.02 |
| 88 |
731-1874A |
Top Discharge Door Chute This part replaces 731-1874. Price: $15.78 |
| 89 |
732-0819 |
Torsion Spring Not Available Price: |
| 90 |
726-0111 |
PUSH NUT Not Available Price: |
| 91 |
747-0965 |
CHUTE DOOR PIVOT ROD Not Available Price: |
| 92 |
931-0066 |
Chute Assembly This part replaces 731-1713B. Price: $101.04 |
| 93 |
720-0294A |
FOAM GRIP - 9" This part replaces 720-0294. Price: $6.41 |
| 94 |
682-3052 |
HANDLE BRACKET (RH) Not Available Price: |
| 95 |
732-1171 |
COMPRESSION SPRING Not Available Price: |
| 96 |
720-0428 |
BUTTON Not Available Price: |
| 97 |
715-0168 |
PIN Not Available Price: |
| 98 |
716-0209 |
RETAINING RING Not Available Price: |
