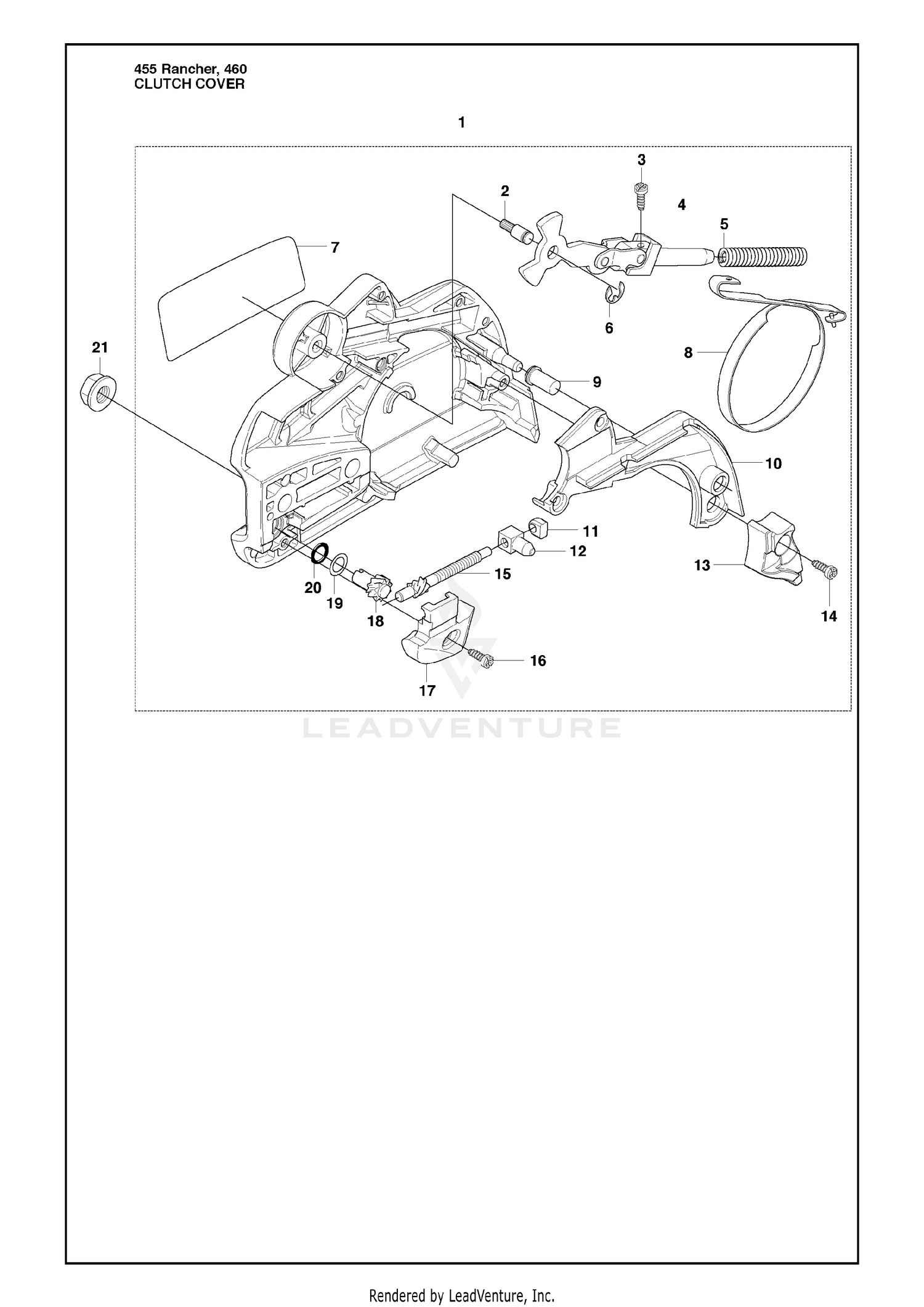

Clutch Cover
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32128-43 | NUT-FLANGE Price: $0.94 |
| 1 | 546354301 | CLUTCH COVER 455/465 This part replaces 537286301. Price: $39.99 |
| 2 | 503892901 | PIN Price: $2.99 |
| 2 | 86-0060 | SLEEVE-TUBE Price: $10.72 |
| 3 | 503217010 | SCREW Price: $3.99 |
| 3 | 92-7767 | SPRING-COMPRESSION This part replaces 86-0070. Price: $16.91 |
| 4 | 503890802 | JOINT Price: $19.99 |
| 4 | 86-2670 | DECAL-PULLEY ADJ Price: $13.68 |
| 5 | 503465901 | SPRING Price: $6.99 |
| 5 | 92-0626 | TUBE ASM Price: $86.47 |
| 6 | 3217-9 | NUT-HH Price: $0.37 |
| 6 | 735310820 | E-RING 4 Price: $2.99 |
| 7 | 537298601 | DECAL, CLUTCH COVER Price: $3.99 |
| 7 | 86-0050 | SCREW Price: $44.92 |
| 8 | 537043001 | BRAKE BAND Price: $14.99 |
| 8 | 95-4383 | PULLEY YOKE ASM This part replaces 86-1790. Price: $118.75 |
| 9 | 503855201 | SLEEVE Price: $4.99 |
| 9 | 86-2000 | SCREW Price: $16.15 |
| 10 | 537108002 | COVER Price: $9.99 |
| 10 | 55-4300 | DECAL-WARNING Price: $13.99 |
| 11 | 537017401 | SLEEVE Price: $4.99 |
| 12 | 537286601 | PAWL Price: $5.99 |
| 13 | 537089001 | PROTECTOR Price: $5.99 |
| 14 | 503217010 | SCREW Price: $3.99 |
| 15 | 575260404 | CHAIN TENSIONER KIT This part replaces 537286501. Price: $9.99 |
| 16 | 503217010 | SCREW Price: $3.99 |
| 17 | 537286401 | COVER Price: $3.99 |
| 18 | 537079402 | WORM WHEEL Price: $9.99 |
| 19 | 503230063 | WASHER Price: $3.99 |
| 20 | 740480702 | O-RING Price: $3.99 |
