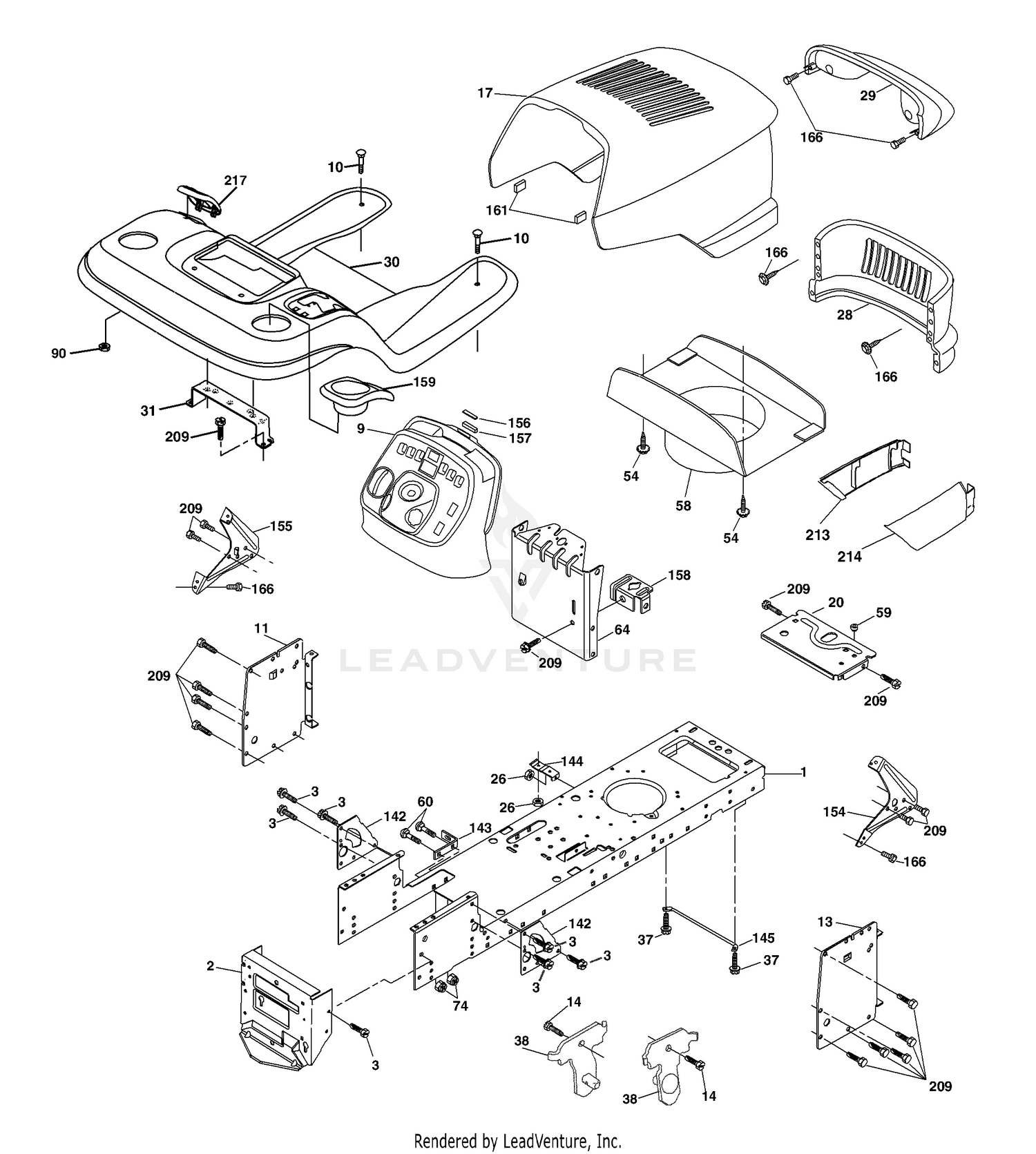

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
62-7400 |
DECAL Price: $24.54 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 2 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 3 |
17060612 |
Screw 3/8-16x3/4 Price: Call Us |
| 3 |
76-9700-01 |
COVER-TOWER Price: $240.24 |
| 4 |
98-7826 |
Frame (only on:30455) Price: Call Us |
| 5 |
93-6697 |
DECAL-LUBE Price: $11.38 |
| 6 |
68-7573 |
STRIP-SEALING Price: $8.09 |
| 7 |
94-5601-03 |
SUPPORT-TANK, LOWER Price: $106.64 |
| 8 |
76-6360 |
DISCONTINUED Price: Call Us |
| 9 |
163976X428 |
Dash Price: Call Us |
| 9 |
93-7236-03 |
SUPPORT-CLEANER, AIR ASM Price: $284.90 |
| 10 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 10 |
72140608 |
Bolt 3/8-16 x 1 Price: Call Us |
| 11 |
167203 |
Panel Dash Lh Price: Call Us |
| 11 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 12 |
93-9425 |
DECAL-DANGER Price: $28.20 |
| 13 |
178298 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 14 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 15 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 16 |
83-1470 |
WASHER-NEOPRENE Price: $1.97 |
| 17 |
175260X428 |
Hood Price: Call Us |
| 17 |
323-6 |
SCREW-HH Price: $0.66 |
| 18 |
93-7798 |
HOOD ASM Price: $3,496.28 |
| 19 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 20 |
162026 |
Plate Battery Price: Call Us |
| 20 |
94-5613 |
STOP-RUBBER Price: $8.22 |
| 21 |
93-7203-01 |
LATCH-LOCKUP Price: $73.18 |
| 22 |
325-5 |
SCREW-HH Price: $1.20 |
| 23 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 25 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 27 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 28 |
175289X428 |
Grille Price: Call Us |
| 28 |
3290-359 |
SCREW-HWH Price: $6.23 |
| 29 |
179761 |
Light Asm. Bar Price: Call Us |
| 29 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 30 |
179131X428 |
Fender Price: Call Us |
| 30 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 31 |
139976 |
Bracket Fender Price: Call Us |
| 31 |
3290-483 |
WASHER-CONICAL Price: $7.61 |
| 32 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 33 |
80-7730 |
SPACER Price: $1.97 |
| 34 |
76-6361 |
STRIP-SEALING Price: $25.24 |
| 35 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 36 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 37 |
94-5609-03 |
COVER-HOOD, LOWER Price: $403.69 |
| 38 |
175710 |
Bracket, Asm. Pivot Mower Rear Price: Call Us |
| 38 |
323-4 |
SCREW-HH Price: $1.02 |
| 39 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 40 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 41 |
76-9300-01 |
FENDER-LH Price: $724.69 |
| 42 |
76-9340-01 |
FENDER-RH Price: $760.39 |
| 43 |
88-1310 |
STRIP-FOAM, COVER Price: $24.15 |
| 44 |
74-4090 |
TREAD-REST, FOOT Price: $46.79 |
| 45 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 46 |
3250-36 |
SCREW-PPH Price: $2.41 |
| 47 |
100-2596-03 |
COVER-SEAT, FRONT Price: $38.09 |
| 48 |
76-6380 |
SEAL-COVER, FRONT Price: $5.49 |
| 49 |
32121-36 |
PIN-SPRING Price: $2.56 |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 58 |
175351 |
Duct Hood Price: Call Us |
| 59 |
177579 |
Bushing Snap Price: Call Us |
| 60 |
72140606 |
Bolt Rd Hd Sqnk 3/8-16 Unc x 3/4 Price: Call Us |
| 64 |
174997 |
Dash Lower Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 90 |
124346X |
Nut Self-Thd Wsh-Hd 1/4 Zinc Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
154966 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 154 |
161897 |
Bracket Dash Rh Price: Call Us |
| 155 |
161900 |
Bracket Dash Lh Price: Call Us |
| 156 |
163805 |
Striker Plate Price: Call Us |
| 157 |
163806 |
Magnet Stealth Price: Call Us |
| 158 |
162037 |
Bracket Parking Brake Price: Call Us |
| 159 |
179950X428 |
Cupholder Price: Call Us |
| 161 |
164655 |
Extrusion Bumper Price: Call Us |
| 166 |
171875 |
Screw Hw Hd Hi-Lo #13-16 x 3/4 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 213 |
169848X428 |
Skirt Grille LH Price: Call Us |
| 214 |
169847X428 |
Skirt Grille RH Price: Call Us |
