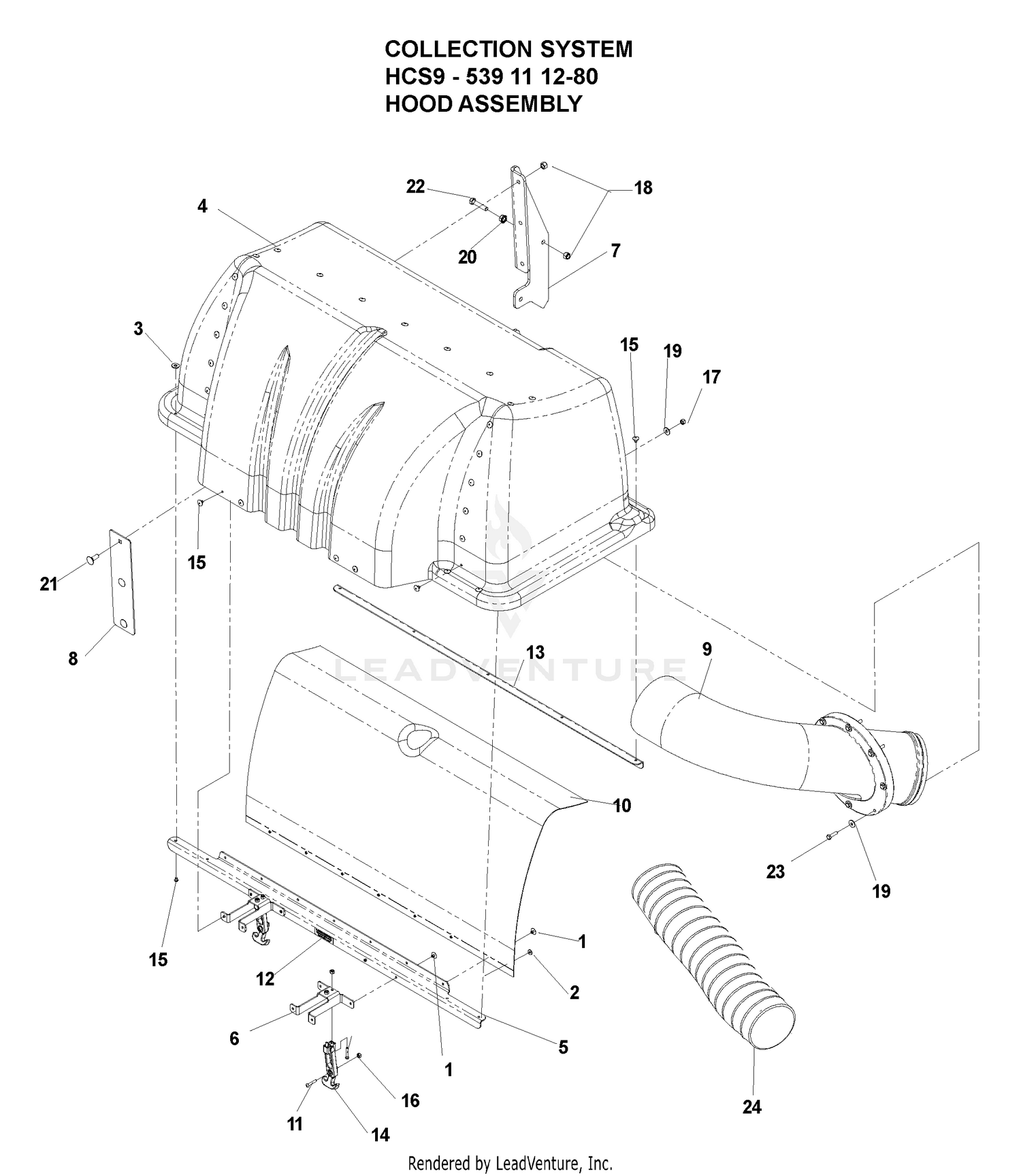

| Ref | Part Number | Description |
|---|
| 1 |
539102744 |
RIVET E/16 X 1/4 LG FLG Price: $2.99 |
| 1 |
69-3150 |
SCREW Price: $2.17 |
| 2 |
539105408 |
WASHER #10 Price: $2.99 |
| 2 |
69-3070 |
WASHER Price: $0.28 |
| 3 |
539110033 |
WASHER, #10 MACH SCR BLK OX Price: $3.99 |
| 4 |
539111172 |
HOOD Price: $279.99 |
| 5 |
539111174 |
HOOD SUPPORT Price: $64.99 |
| 6 |
539111175 |
SUPPORT, DRAW LATCH Price: $29.99 |
| 7 |
539111177 |
HOOD HINGE Price: $49.99 |
| 8 |
539111181 |
MOUNT PLATE Price: $39.99 |
| 9 |
539111182 |
INLET TUB Price: $89.99 |
| 10 |
539111183 |
MESH, POLY DIAMOND Price: $6.99 |
| 11 |
539111186 |
SCR, #10-24 X 1-1/8 Price: $1.99 |
| 12 |
539111260 |
DECAL, VENTILATION Price: $3.99 |
| 13 |
539111339 |
HOOD SUPPORT, REAR Price: $29.99 |
| 13 |
69-3500 |
BEARING-SLEEVE Price: $472.61 |
| 14 |
540200478 |
LATCH This part replaces 539200478. Price: $27.99 |
| 14 |
69-3510 |
PIN Price: $29.51 |
| 15 |
107-4354 |
COVER-FRONT This part replaces 76-4610. Price: $1,302.74 |
| 15 |
539200684 |
RIVERT, 3/16, STAVEX Price: $2.99 |
| 16 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 16 |
76-4590 |
SCREW Price: $5.43 |
| 17 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 17 |
69-3200 |
RING-RETAINING Price: $20.29 |
| 18 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 18 |
69-3190 |
SEAL-LIP Price: $94.91 |
| 19 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 19 |
69-3170 |
RING-RETAINING Price: $11.40 |
| 20 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 20 |
75-0460 |
BEARING-BALL This part replaces 69-3210. Price: $175.71 |
| 21 |
595316801 |
Bolts This part replaces 539990645. Price: $3.99 |
| 21 |
69-3960 |
SCREW Price: $5.90 |
| 22 |
596583901 |
Bolts This part replaces 539990730. Price: $2.99 |
| 22 |
69-3970 |
BEARING-JOURNAL Price: $392.61 |
| 23 |
539991003 |
BOLT 1/4C X 1 3/4 Price: $2.99 |
| 23 |
94-2878 |
PIN This part replaces 69-3520. Price: $9.76 |
| 24 |
539111314 |
HOSE 7 X 54 CLEAR Price: $279.99 |
| 24 |
69-3980 |
SWASHPLATE Price: $589.79 |
| 25 |
69-3950 |
SHAFT-MOTOR Price: $816.22 |
| 26 |
76-4600 |
GASKET-COVER, FRONT Price: $81.78 |
| 27 |
107-4379 |
CYLINDER BLOCK KIT This part replaces 69-3910. Price: $2,151.85 |
| 28 |
69-3990 |
PLATE-VALVE, MOTOR Price: $406.84 |
| 29 |
136-1026 |
PLUG ASM This part replaces 69-3940. Price: $9.75 |
| 30 |
69-3450 |
PIN Price: $3.33 |
| 31 |
69-3370 |
BEARING-NEEDLE Price: $49.67 |
| 32 |
69-3230 |
PIN-SPRING Price: $24.22 |
| 33 |
69-3130 |
PLUG Price: $62.97 |
| 37 |
69-4020 |
PISTON-SERVO Price: $565.06 |
| 38 |
69-3560 |
O-RING Price: $7.18 |
| 39 |
69-3920 |
PISTON RING AND O-RING KIT This part replaces 69-3570. Price: $181.90 |
| 40 |
69-4030 |
SPRING-SERVO Price: $113.55 |
| 41 |
69-3710 |
GASKET-SERVO Price: $58.74 |
| 42 |
69-4040 |
STOP Price: $162.69 |
| 43 |
69-3720 |
COVER-SERVO Price: $406.84 |
| 44 |
95-4400 |
WASHER-BACKUP Price: $7.74 |
