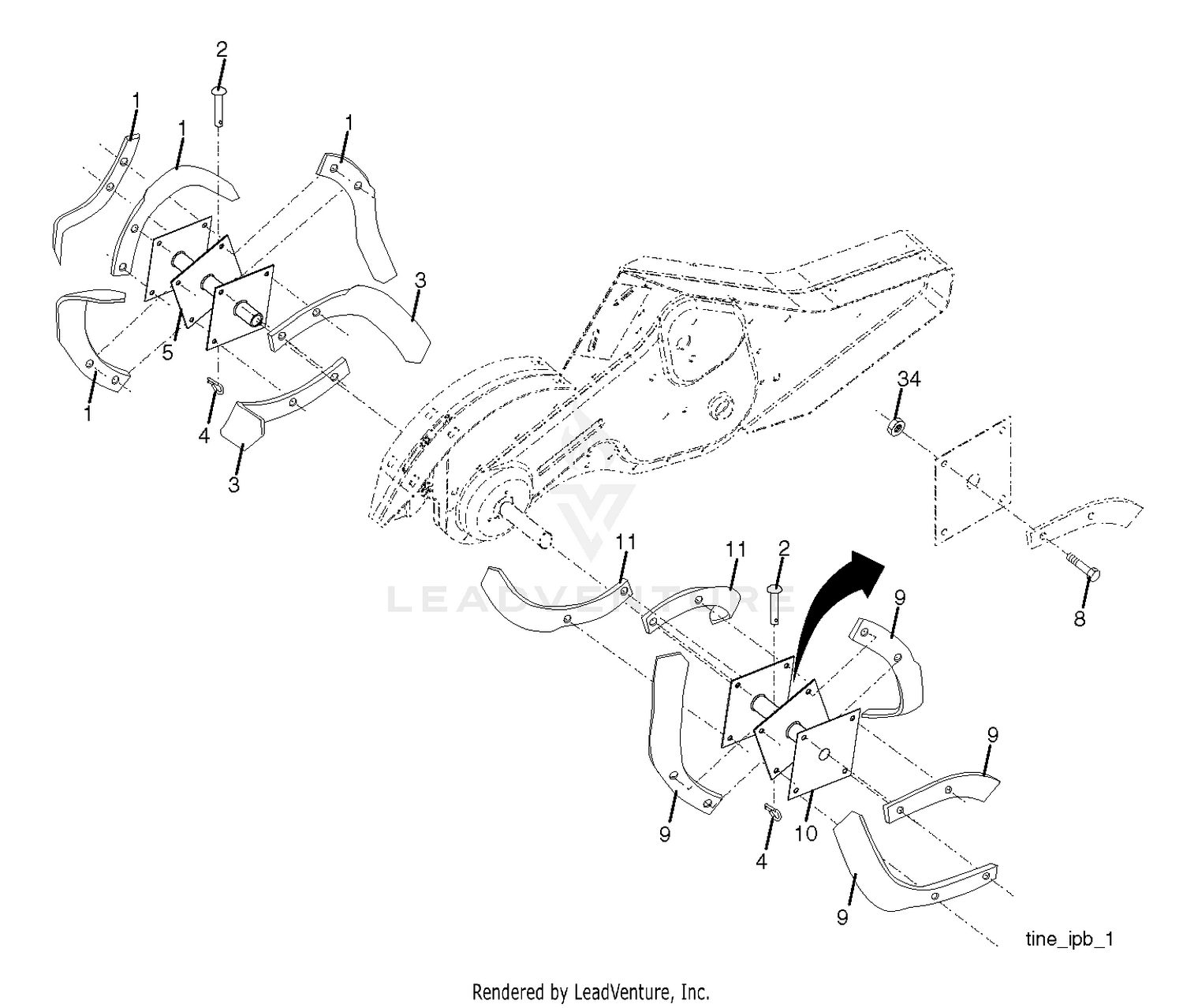

| Ref | Part Number | Description |
|---|
| 1 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 1 |
532006554 |
TINE.LH.12"(72L) This part replaces 532004459. Price: $12.99 |
| 2 |
3-2858 |
DISC-FRICTION Price: $31.32 |
| 2 |
532132673 |
PIN RETAINING SCREW Price: $3.99 |
| 3 |
233-48 |
KNOB Price: $10.92 |
| 3 |
532006554 |
TINE.LH.12"(72L) Price: $12.99 |
| 4 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $2.99 |
| 4 |
69-8040 |
LEVER-THROTTLE Price: $93.60 |
| 5 |
283-67 |
PIN-CLEVIS Price: $2.04 |
| 5 |
532132727 |
HUB.&.PLATE.ASM.LH Price: $69.99 |
| 6 |
282-28 |
CLEVIS-ADJUSTABLE Price: $58.02 |
| 7 |
3219-14 |
NUT-HEX Price: $0.25 |
| 8 |
77-2990 |
CABLE-THROTTLE Price: $348.96 |
| 8 |
874610616 |
BOLT.HEX.001X20.37-24X1.ZINC Price: $4.99 |
| 9 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 9 |
532006555 |
TINE.RH.12"(72R) This part replaces 532004460. Price: $14.99 |
| 10 |
321-3 |
SCREW-HH Price: $0.28 |
| 10 |
581813701 |
HUB.ASM.RH.17.TILLER.BLACK This part replaces 532132728. Price: $59.99 |
| 11 |
532006555 |
TINE.RH.12"(72R) Price: $14.99 |
| 11 |
69-9130-03 |
BRACKET-THROTTLE This part replaces 69-9130. Price: $14.31 |
| 12 |
3-8596 |
SPRING-COMPRESSION Price: $29.97 |
| 13 |
3256-26 |
WASHER-FLAT Price: $0.39 |
