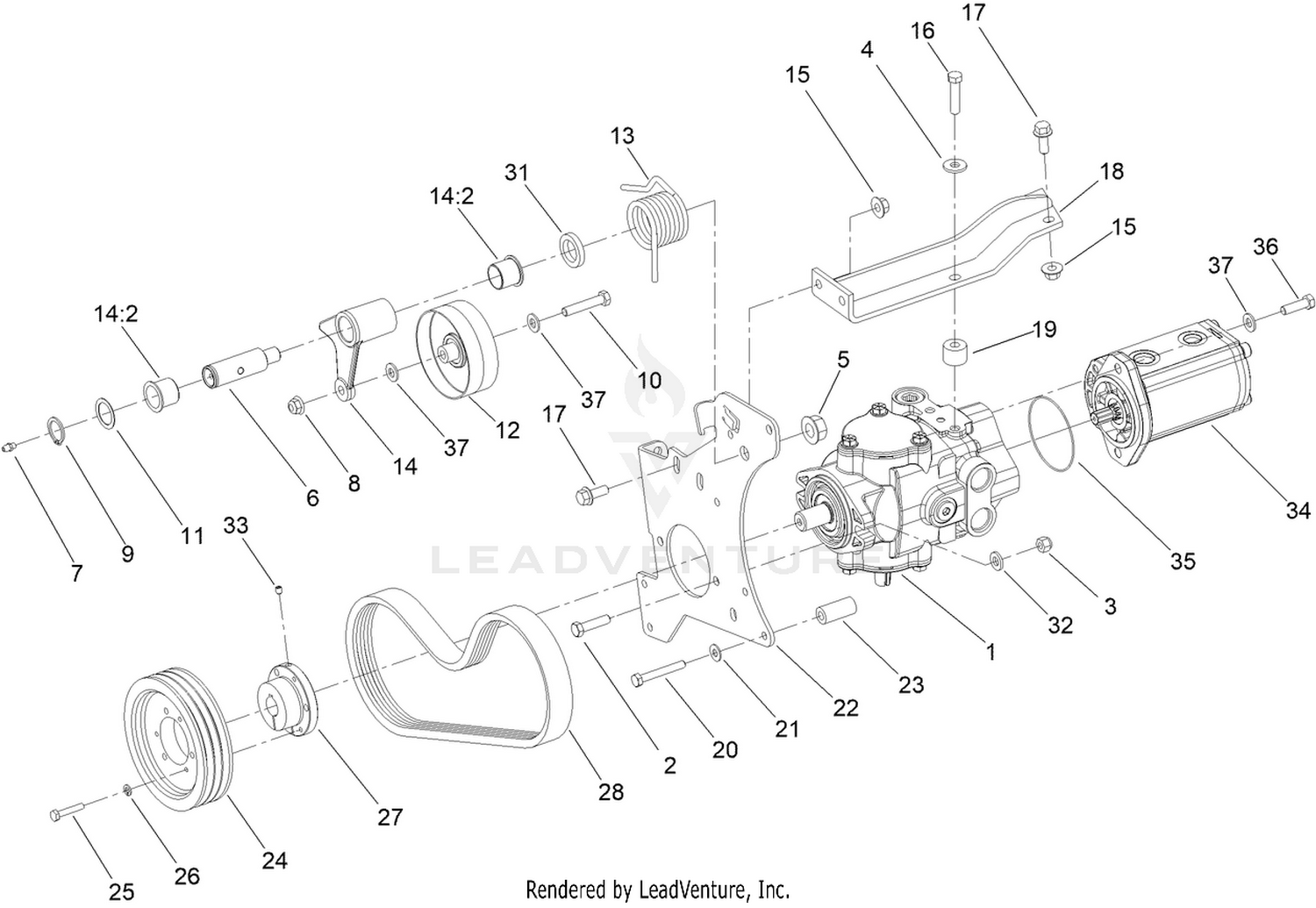

| Ref | Part Number | Description |
|---|
| 1 |
104-4890 |
PISTON PUMP ASM Price: $2,386.28 |
| 2 |
323-8 |
SCREW-HH Price: $1.20 |
| 3 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 4 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 5 |
32128-54 |
NUT-HF Price: $5.25 |
| 6 |
99-3624 |
SHAFT-PIVOT, IDLER Price: $67.19 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 10 |
323-10 |
SCREW-HH Price: $0.89 |
| 11 |
74-1810 |
WASHER Price: $0.39 |
| 12 |
139-6031 |
PULLEY-IDLER Price: $121.38 |
| 13 |
115-3488 |
SPRING-TORSION Price: $19.96 |
| 14 |
137-1653 |
IDLER ARM ASM Price: $37.07 |
| 15 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 16 |
323-19 |
SCREW-HH Price: $1.70 |
| 17 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 18 |
99-3436-0P |
SUPPORT-PUMP Price: $150.02 |
| 19 |
99-3440 |
SPACER Price: $6.78 |
| 20 |
33114-060 |
SCREW-HH Price: $0.88 |
| 21 |
87-8640 |
WASHER-FLAT Price: $0.68 |
| 22 |
95-8933-0P |
PLATE - PUMP MOUNT *B Price: $105.46 |
| 23 |
95-8941 |
SPACER-MOUNT, PUMP Price: $8.87 |
| 24 |
99-3620 |
PULLEY-3V, PUMP Price: $317.63 |
| 25 |
32-1140 |
DISCONTINUED This part replaces 321-13. Price: $2.04 |
| 26 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 27 |
100-4813 |
BUSHING-LOCK, TAPER Price: $37.51 |
| 28 |
99-3619 |
BELT-3V Price: $61.56 |
| 31 |
99-3625 |
SPACER-ARM, IDLER Price: $9.01 |
| 32 |
100-4852 |
WASHER-HARDENED Price: $4.63 |
| 33 |
3245-7 |
SCREW-SET Price: $0.34 |
| 34 |
121-7841 |
HYD GEAR PUMP ASM Price: $1,594.21 |
| 35 |
60-3520 |
O-RING Price: $4.57 |
| 36 |
323-7 |
SCREW-HH Price: $0.65 |
