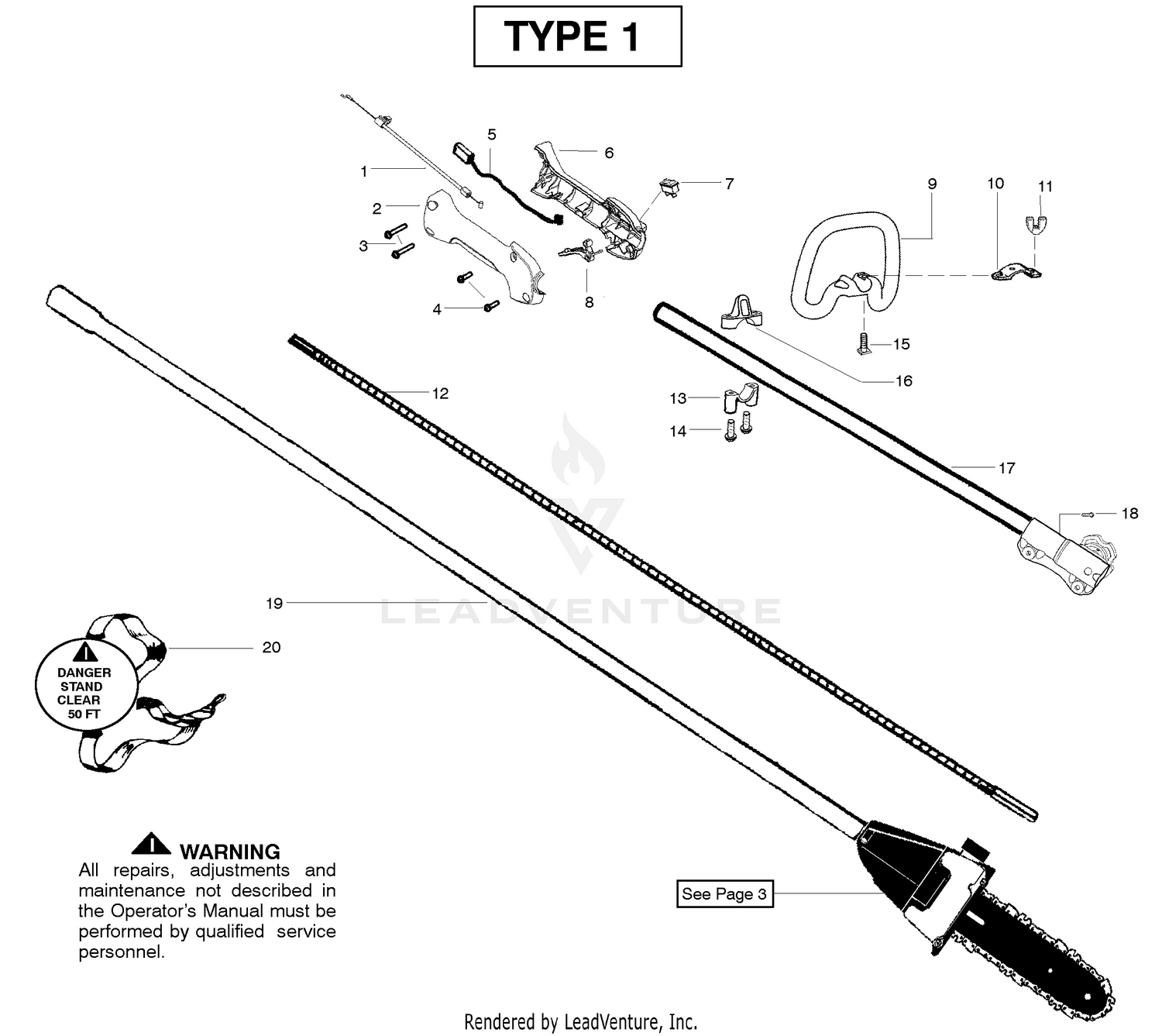

| Ref | Part Number | Description |
|---|
| 1 |
233-21 |
KNOB Price: $12.99 |
| 1 |
530059759 |
Assy-Throttle Cable Price: $9.99 |
| 2 |
21-8640 |
LATCH-LEVER, VALVE Price: $33.47 |
| 2 |
530057541 |
Hsg.-Throttle right Price: $7.99 |
| 3 |
321-4 |
SCREW-HH Price: $0.99 |
| 3 |
530016406 |
Screw. Price: $1.99 |
| 4 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 4 |
530015814 |
Screw Price: $1.99 |
| 5 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 5 |
530054183 |
Assy-Wire Price: $4.99 |
| 6 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 6 |
530059760 |
Hsg. - Throttle left Price: $6.99 |
| 7 |
111332 |
SWITCH This part replaces 21-8590. Price: $10.99 |
| 7 |
530069572 |
Kit-Switch Price: $4.99 |
| 8 |
237-78 |
O-RING Price: $3.85 |
| 8 |
530049107 |
TRIGGER RED This part replaces 545077601. Price: $1.99 |
| 9 |
283-17 |
PIN-CLEVIS Price: $4.89 |
| 10 |
32121-73 |
PIN-ROLL Price: $0.22 |
| 10 |
530059185 |
Clamp-Handle Price: $2.99 |
| 11 |
103-1802 |
FITTING-ELBOW, 90 DEG This part replaces 353-374. Price: $22.99 |
| 11 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 12 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 12 |
530056570 |
Flex-Lower Price: $14.99 |
| 13 |
21-9010 |
LEVER-VALVE, PIVOT MOUNT Price: $28.78 |
| 13 |
530057987 |
Clamp-Lower Price: $3.99 |
| 14 |
237-42 |
O-RING Price: $2.78 |
| 14 |
530015940 |
Screw Price: $1.99 |
| 15 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 15 |
530015820 |
Bolt Price: $1.99 |
| 16 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 16 |
530057986 |
Clamp-Upper Price: $2.99 |
| 17 |
28-9570-03 |
LEVER-PUMP This part replaces 28-9570. Price: $264.06 |
| 18 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 18 |
530016344 |
Screw Price: $1.99 |
| 19 |
29-6163 |
SWITCH-MICRO This part replaces 29-6160. Price: $91.23 |
| 19 |
545008090 |
Assy-Driveshaft Price: $32.99 |
| 20 |
23-1880 |
DISCONTINUED Price: Call Us |
| 20 |
530094417 |
Shoulder Strap This part replaces 530094408. Price: $20.65 |
| 21 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 22 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 23 |
251-259 |
BEARING-BALL Price: $13.67 |
| 24 |
3210-5 |
SCREW-HH Price: $0.54 |
| 25 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 26 |
322-17 |
SCREW-HH Price: $2.62 |
| 27 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 28 |
353-511 |
FITTING-HYD, 90 DEG Price: $31.93 |
| 29 |
23-1830 |
DISCONTINUED Price: Call Us |
| 30 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 31 |
322-9 |
SCREW-HH Price: $3.09 |
| 32 |
23-1840 |
BUSHING-TAPERLOCK Price: $92.22 |
| 33 |
3247-4 |
SCREW-SET Price: $0.54 |
| 34 |
24-0080 |
FLEXIBLE COUPLING Price: $231.51 |
| 35 |
23-8920 |
DISCONTINUED Price: Call Us |
| 36 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 37 |
3217-6 |
NUT-HEX Price: $1.19 |
| 38 |
24-6160 |
DISCONTINUED Price: Call Us |
| 39 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 40 |
322-10 |
SCREW-HH Price: $0.70 |
| 41 |
23-3850 |
DISCONTINUED Price: Call Us |
| 42 |
237-80 |
O-RING Price: $6.10 |
| 43 |
353-370 |
FITTING-ELBOW, 90 DEG Price: $74.99 |
| 44 |
23-2300 |
FILTER-OIL, TRANSMISSION Price: $11.03 |
| 45 |
23-1900 |
AXLE-PUMP TUBE ASM Price: $109.23 |
| 47 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 48 |
323-7 |
SCREW-HH Price: $0.65 |
| 49 |
92-8902 |
DISCONTINUED This part replaces 22-4760. Price: Call Us |
| 50 |
41-8760 |
GASKET This part replaces 23-1800. Price: $5.99 |
| 51 |
32120-72 |
RING-SNAP Price: $2.09 |
| 52 |
86-7220 |
GEAR-PINION This part replaces 23-4810. Price: $81.33 |
| 53 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 54 |
29-6120-03 |
PUMP PLATE ASM This part replaces 29-6120. Price: $93.02 |
| 55 |
3217-16 |
NUT-HEX Price: $0.25 |
| 56 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 57 |
32104-95 |
SCREW-HWH This part replaces 32104-42. Price: $0.41 |
| 58 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 59 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 60 |
2412-4 |
CLAMP-R Price: $4.22 |
| 61 |
323-6 |
SCREW-HH Price: $0.66 |
| 62 |
26-2380 |
DISCONTINUED Price: Call Us |
| 63 |
21-8580 |
DISCONTINUED Price: Call Us |
| 64 |
5-6560 |
DISCONTINUED Price: Call Us |
| 65 |
107-9297 |
HOSE-FUEL This part replaces 6-1190. Price: $7.29 |
| 66 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 67 |
304-75 |
CONNECTOR-HOSE Price: $8.29 |
| 68 |
304-97 |
DISCONTINUED Price: Call Us |
| 69 |
21-0390 |
DISCONTINUED Price: Call Us |
| 70 |
3217-7 |
NUT-HEX Price: $0.28 |
| 71 |
121-9070 |
VALVE ASM This part replaces 21-8550. Price: $458.43 |
| 72 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 73 |
21-4940 |
FITTING ASM Price: $79.78 |
| 74 |
353-375 |
FITTING-ELBOW, 90 Price: $42.42 |
| 75 |
353-512 |
PLUG Price: $15.26 |
