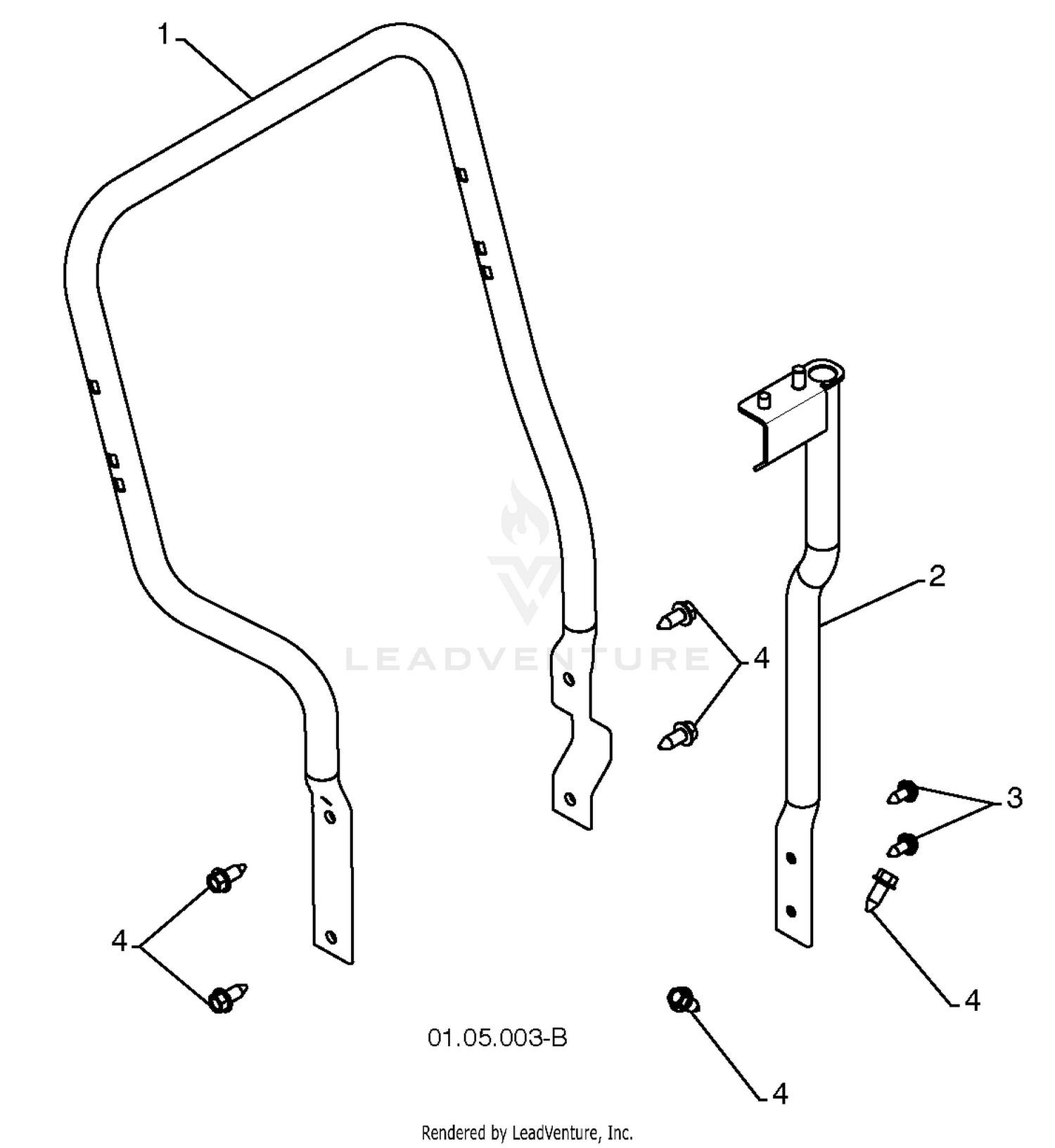

| Ref | Part Number | Description |
|---|
| 1 |
3296-9 |
NUT-HEX Price: $0.25 |
| 1 |
532421059 |
TUBE.LOWER.HANDLE.SNOW.BLACK Price: $84.99 |
| 2 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 2 |
532422117 |
SUPPORT.WELDMENT.ROTATOR. Price: $6.99 |
| 3 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 3 |
85-9150 |
PLATE-SWITCH Price: $5.42 |
| 4 |
323-10 |
SCREW-HH Price: $0.89 |
| 5 |
85-8300-03 |
PUMP LEVER ASM This part replaces 85-8300. Price: $116.03 |
| 6 |
32105-21 |
SCREW-HH Price: $1.09 |
| 7 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 8 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 9 |
93-9051 |
DECAL-BOLT, ECCENTRIC Price: $16.37 |
| 10 |
95-0553 |
DISCONTINUED Price: $39.13 |
| 11 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 12 |
18-6380 |
PIN-ADJUSTMENT, STEERING Price: $12.89 |
| 13 |
85-9030 |
SPRING-EXTENSION Price: $45.40 |
| 14 |
256-113 |
BUSHING-FLANGE Price: $5.58 |
| 15 |
85-8460 |
SWITCH ARM ASM Price: $109.84 |
| 16 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 17 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 18 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 19 |
322-8 |
SCREW-HH Price: $1.26 |
| 20 |
251-259 |
BEARING-BALL This part replaces 251-307. Price: $13.67 |
| 21 |
85-9120 |
SPACER-PIVOT, TILT Price: $4.01 |
| 22 |
75-5470 |
SPACER-BEARING Price: $3.06 |
