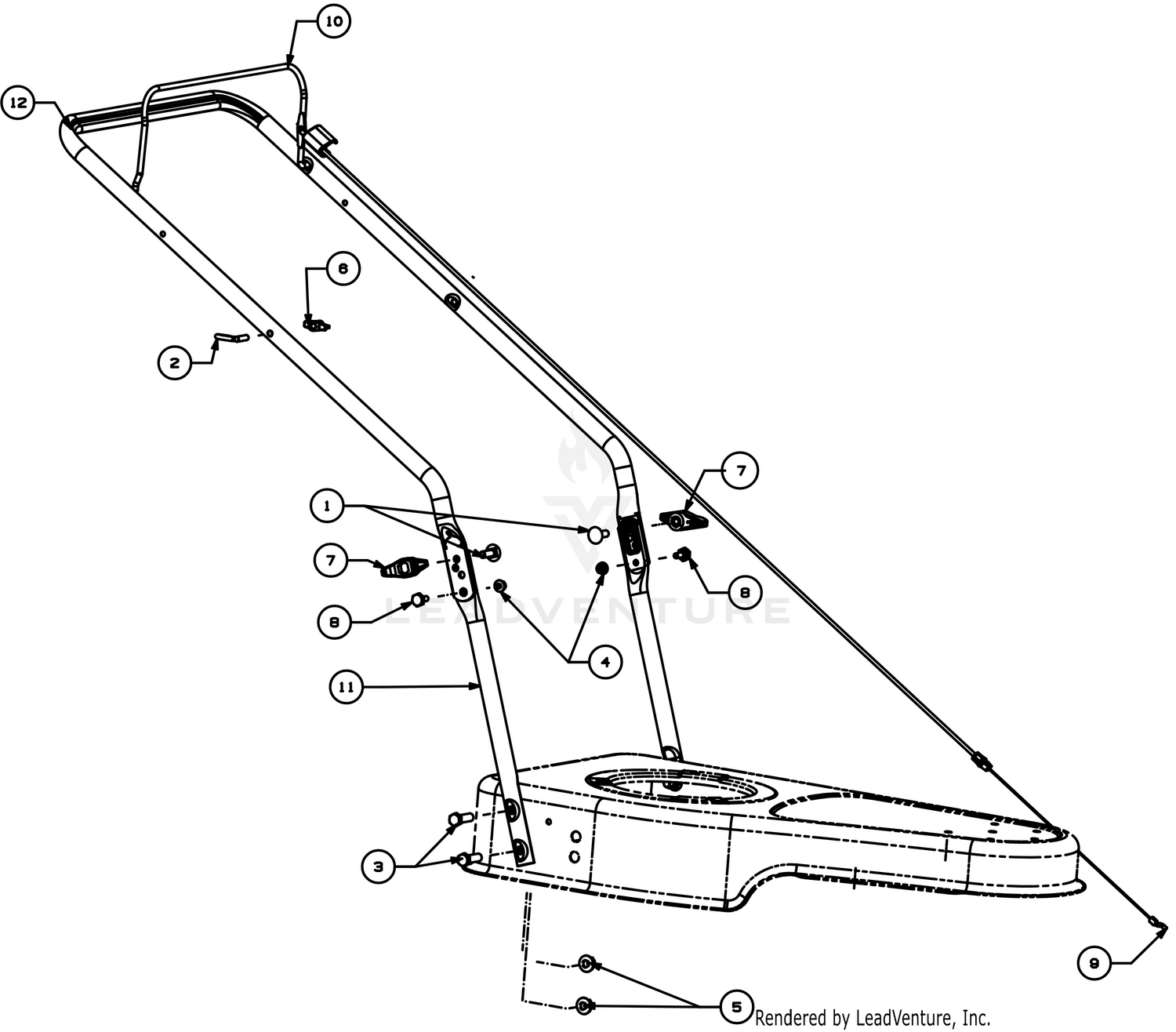

Handle Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710-04998 | SCREW 5/16-18 x 1.00 GR5 Price: $4.89 |
| 2 | 710-1205 | EYEBOLT 1/4-20 Price: $3.53 |
| 3 | 710-3005 | SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 4 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 5 | 712-04065 | NUT Price: $3.68 |
| 6 | 720-0279 | HANDLE KNOB Price: $3.93 |
| 7 | 720-04122 | WING KNOB 5/16-18 Price: $5.87 |
| 8 | 738-04419A | SHOULDER SCREW Price: $3.61 |
| 9 | 746P05179 | CONTROL CABLE This part replaces 746-05179. Price: $13.66 |
| 10 | 747-06246 | OPERATOR BAIL Price: $10.55 |
