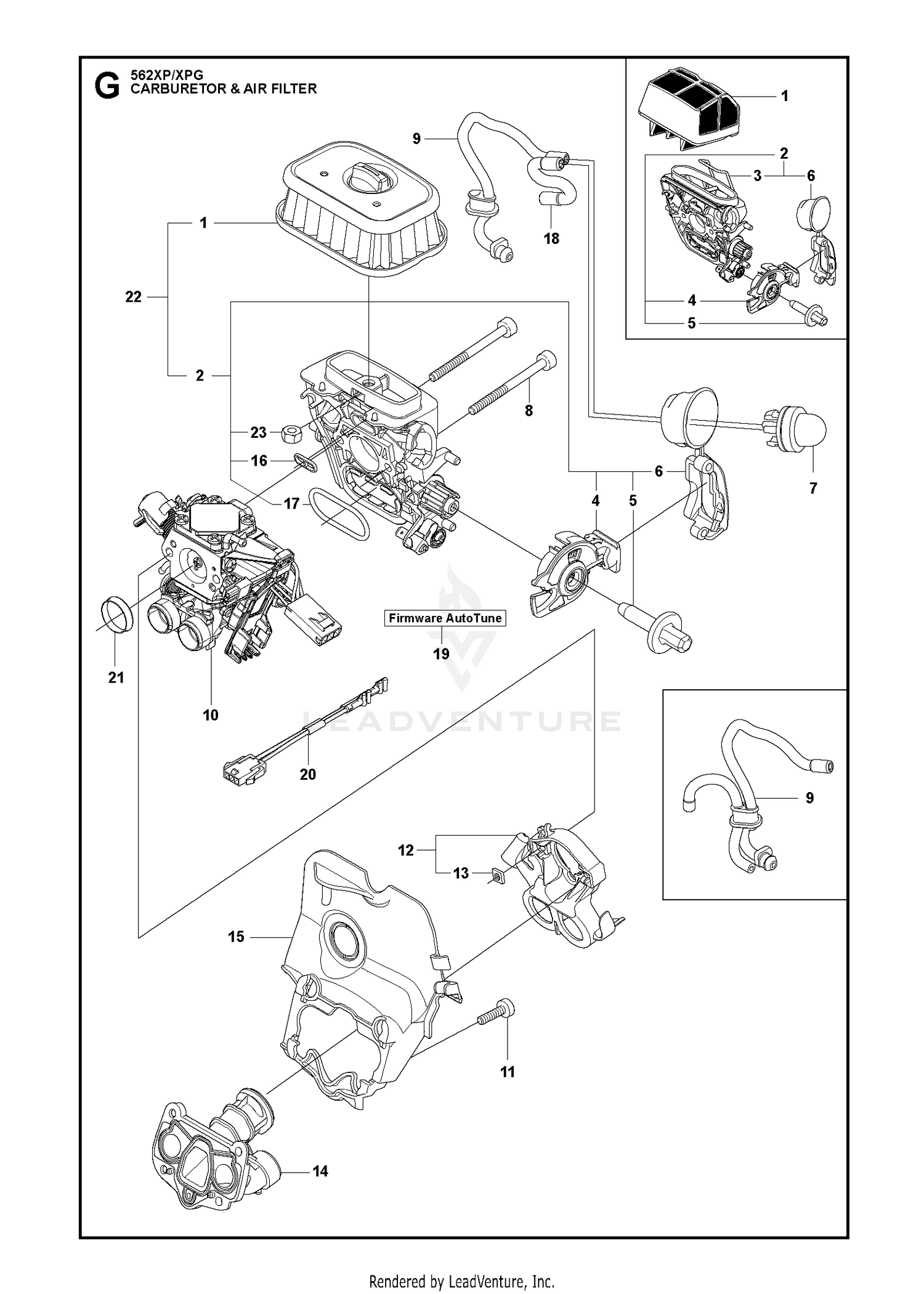

CARBURETOR & AIR FILTER
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 107069 | CLIP Price: $1.79 |
| 2 | 115-8822 | MOUNT-ISOLATOR Price: $25.89 |
| 3 | 115-5581 | WASHER-FLAT Price: $7.33 |
| 4 | 115-5570 | BUSHING-THIN Price: $5.22 |
| 4 | 510017202 | CHOKE CONTROL ASSY CHOKE/STOP Price: $9.99 |
| 5 | 3274-65 | SCREW-HSBH Price: $1.15 |
| 5 | 505156201 | SCREW Price: $2.99 |
| 6 | 119-4516 | FOAM-SIDE Price: $8.43 |
| 6 | 525588101 | SEALING Price: $5.99 |
| 7 | 115-8816 | COIL-CONDENSER Price: $1,375.96 |
| 7 | 503936601 | AIR PURGE BUBBLE Price: $9.99 |
| 8 | 115-8823 | COUPLER-NUT Price: $18.66 |
| 8 | 574353503 | SCREW ITXSCM Price: $2.99 |
| 9 | 115-8819 | SCREW-HSBH Price: $96.90 |
| 10 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 11 | 3229-4 | SCREW-CARR Price: $0.34 |
| 11 | 526818101 | SCREW ITXSCM M4X15 T27 12.9 T Price: $2.99 |
| 12 | 120-0457 | FAN-CONDENSOR This part replaces 119-4500. Price: $797.67 |
| 12 | 505165202 | FLANGE CARBURETTOR FLANGE Price: $37.99 |
| 13 | 119-4511 | SHROUD-FAN Price: $159.86 |
| 13 | 503226503 | NUT Price: $3.99 |
| 14 | 119-4513 | FRAME-SCREEN Price: $290.53 |
| 14 | 583964103 | INLET PIPE Price: $27.99 |
| 15 | 119-4512 | TRAY-SCREEN Price: $282.78 |
| 15 | 520290901 | INTERMEDIATE WALL Price: $5.99 |
| 16 | 119-4506 | SPACER-LATCH Price: $15.67 |
| 16 | 525619201 | SEALING Price: $2.99 |
| 17 | 525619001 | SEALING Price: $5.99 |
| 17 | 66-2921 | WASHER-FRICTION Price: $2.17 |
| 18 | 119-4507 | PLATE-LATCH Price: $7.51 |
| 18 | 523056801 | FUEL HOSE Price: $4.99 |
| 19 | 119-4527 | FOAM-TRAY Price: $3.96 |
