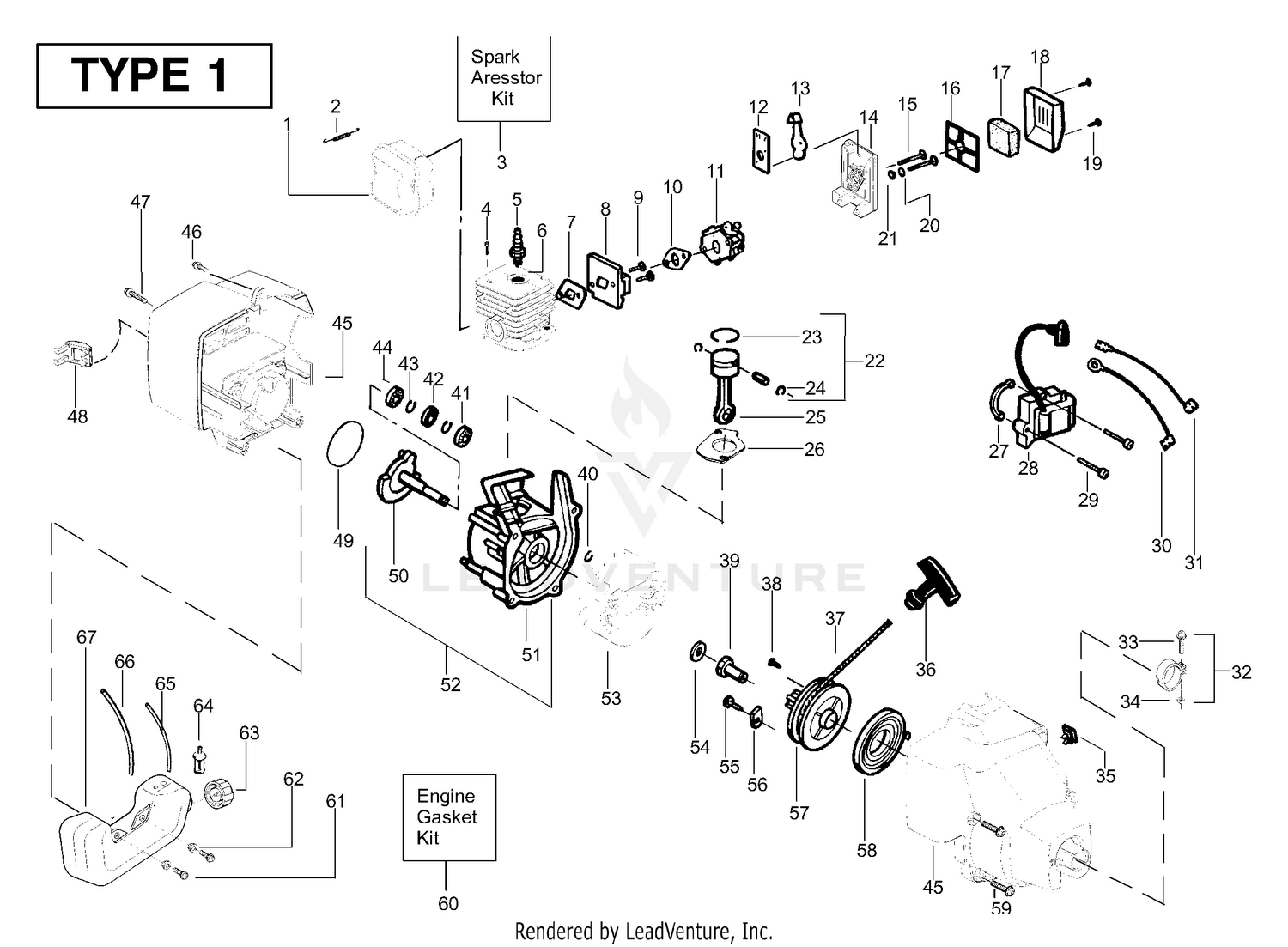

Engine Assembly Type 1
Parts (78)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 530042088 | Spring-Muffler Price: $1.99 |
| 3 | 104-3396 | SCREW-HH Price: $0.75 |
| 3 | 530071391 | Kit-Spark Arrestor Price: $7.99 |
| 4 | 530015953 | Screw-Cylinder Price: $1.99 |
| 4 | 99-8662 | TUBE-SPRING Price: $21.55 |
| 5 | 3218-5 | NUT-JAM Price: $0.27 |
| 5 | 503235112 | Spark Plug This part replaces 952030201. Price: $5.99 |
| 6 | 530012416 | Cylinder This part replaces 530069757. Price: $17.99 |
| 6 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 530069913 | Gasket-Cylind./Carb. Price: $4.99 |
| 8 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 8 | 530069994 | Carb. Adapter Kit This part replaces 530049301. Price: $3.99 |
| 9 | 110-4079 | SPRING-COMPRESSION Price: $13.57 |
| 9 | 530016014 | Screw Price: $1.99 |
| 10 | 530069913 | Gasket-Carb. Price: $4.99 |
| 12 | 110-4069 | BRACKET Price: $5.57 |
| 12 | 530038747 | Choke Plate Mounting Price: $1.99 |
| 13 | 115-2007 | ROD-SPRING Price: $34.97 |
| 13 | 530038686 | Shutter-Choke Price: $1.99 |
| 14 | 530052431 | Air Box Price: $1.99 |
| 14 | 92-2762 | PIN-HAIR Price: $1.09 |
| 15 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 | 530015887 | Screw Price: $1.99 |
| 16 | 530036569 | Plate - Filter Support Price: $1.99 |
| 17 | 107-7400 | PIN-LYNCH Price: $9.56 |
| 17 | 530036575 | Foam-Air Filter Price: $1.99 |
| 18 | 110-4058 | BRACKET-CHAIN Price: $32.43 |
| 18 | 530036568 | Cover-Air Filter Price: $1.99 |
| 19 | 107-3258 | FRAME Price: $331.61 |
| 19 | 530015880 | Screw Price: $1.99 |
| 20 | 107-2979 | BOLT-SHOULDER Price: $3.94 |
| 20 | 530015852 | Spacer-Choke Price: $1.99 |
| 21 | 3234-19 | SCREW-HHF Price: $1.73 |
| 21 | 530015254 | Washer Price: $1.99 |
| 22 | 130-8094 | WASHER-PLAIN Price: $5.25 |
| 23 | 108-4279 | SPACER-FRAME Price: $8.34 |
| 23 | 545154009 | PISTON RING This part replaces 530012472. Price: $1.99 |
| 24 | 108-4284 | TUBE-SUPPORT Price: $60.29 |
| 24 | 530015162 | Retainer-Piston Pin Price: $1.99 |
| 25 | 107-7433 | CARRIER FRAME ASM Price: $484.72 |
| 25 | 530069615 | Assy-Connecting Rod Price: $14.99 |
| 26 | 302-5 | FITTING-GREASE Price: $0.59 |
| 26 | 530069913 | Gasket-Cylinder Price: $4.99 |
| 27 | 530036145 | Spacer-Module Price: $1.99 |
| 28 | 530055160 | Ignition Module Price: $34.99 |
| 29 | 530015954 | Screw Price: $1.99 |
| 30 | 581425901 | SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 31 | 530014663 | Assy-Leadwire Price: $5.99 |
| 33 | 530015650 | Screw-Nose Cone Price: $1.99 |
| 34 | 530016124 | Nut-Nose Cone Price: $1.99 |
| 35 | 530071356 | Kit-Switch Price: $4.99 |
| 36 | 530027569 | Handle-Starter Price: $1.99 |
| 37 | 530069232 | Kit - Rope Price: $3.99 |
| 38 | 530016080 | Screw Price: $1.99 |
| 39 | 530038604 | Coupling-Drive Price: $1.99 |
| 40 | 530015941 | Retain. Ring-C'shaft Price: $1.99 |
| 41 | 530032124 | Outer Bearing Price: $4.99 |
| 42 | 530019179 | C'case Seal Price: $2.99 |
| 43 | 530015945 | Retainer Ring-C'case Price: $1.99 |
| 44 | 530032125 | Inner Bearing Price: $11.99 |
| 45 | 530069685 | Assy.-Fan Hsg/Shroud Price: $22.99 |
| 46 | 530015934 | Screw Price: $1.99 |
| 47 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 48 | 530054536 | Guard-Muffler Price: $1.99 |
| 50 | 530054083 | Assy-Crankshaft Price: $5.99 |
| 53 | 545221701 | FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 54 | 530015828 | Washer-Flat Price: $1.99 |
| 55 | 530015775 | Screw Price: $1.99 |
| 56 | 530027523 | Retainer-Can Price: $2.99 |
| 58 | 545008010 | STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 59 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 61 | 530015886 | Screw Price: $1.99 |
| 62 | 530016131 | Washer Price: $1.99 |
| 63 | 530014347 | Assy-Fuel Cap Price: $4.99 |
| 64 | 530095646 | Assy-Fuel Pickup Price: $2.99 |
| 65 | 530069247 | Kit-Fuel Line (Small) Price: $3.99 |
| 66 | 530069216 | Kit-Fuel Line (Large) Price: $3.99 |
