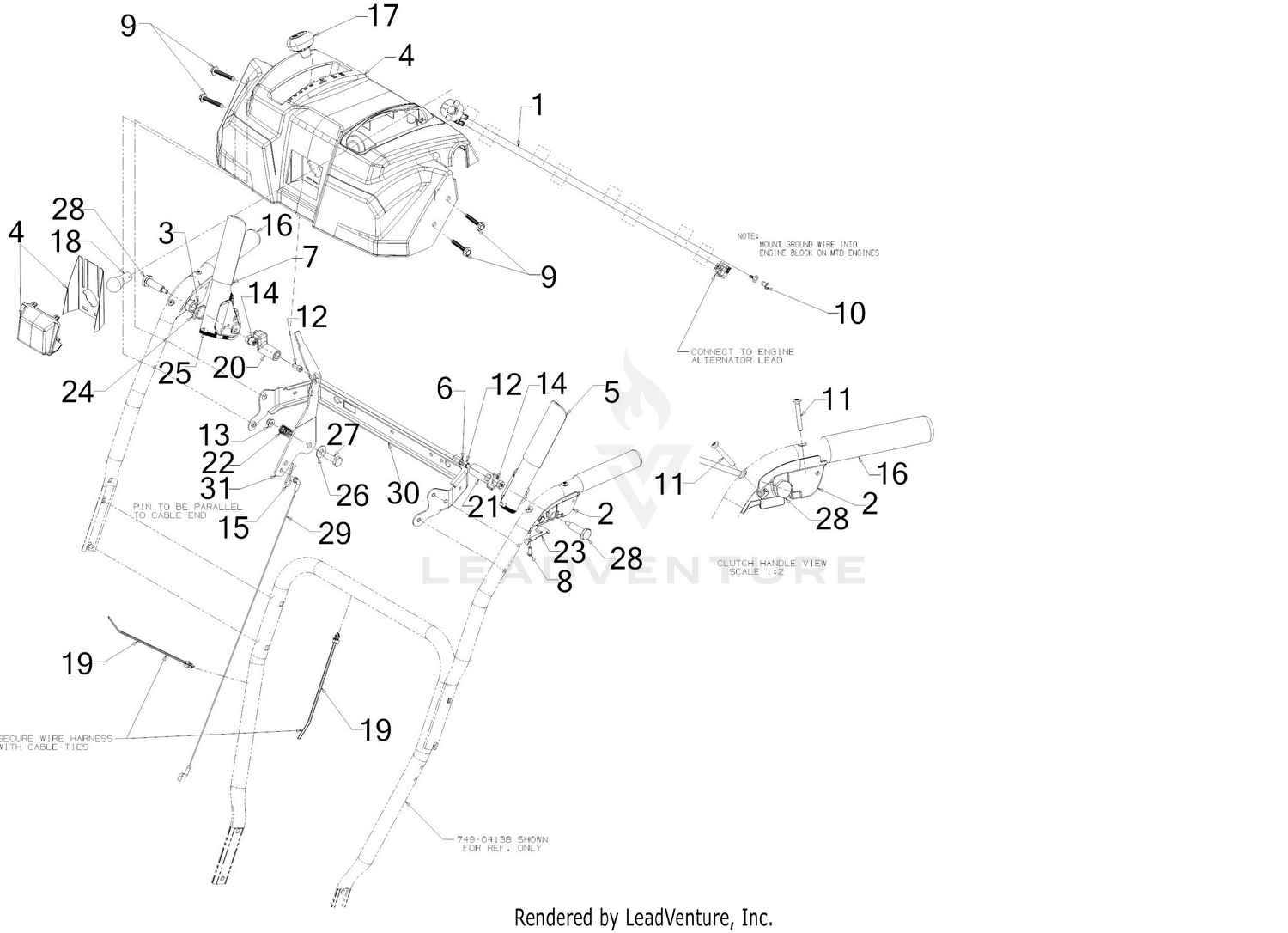

| Ref | Part Number | Description |
|---|
| 1 |
925-04137 |
LIGHT HARNESS ASSEMBLY Price: $18.13 |
| 1 |
925-05147 |
HARNESS Not Available Price: |
| 1 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 925-1649. Price: $10.30 |
| 2 |
631-04133A |
CLUTCH LOCK HANLE ASSEMBLY (LH) Price: $13.42 |
| 3 |
631-04134B |
CLUTCH LOCK HANLE ASSEMBLY (RH) Price: $13.42 |
| 4 |
931-04181A |
HANDLE PANEL ASSEMBLY (TROY-BILT) Price: $51.97 |
| 5 |
684-04105D |
HANDLE ASSEMBLY (LH) This part replaces 684-04105C. Price: $20.10 |
| 6 |
684-04250 |
PIVOT ROD Price: $11.00 |
| 7 |
684-05226A |
HANDLE ASSEMBLY (RH) This part replaces 684-05226. Price: $25.54 |
| 8 |
710-04326 |
SCREW #8-16 x .50 Price: $3.37 |
| 9 |
710-04586 |
SCREW 1/4-20 x 1.625 Price: $6.07 |
| 10 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 11 |
710-1233 |
SCREW #10-24 x 1.375 Price: $3.95 |
| 12 |
710-3069 |
SCREW 1/4-20 x .50 Price: $4.08 |
| 13 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 14 |
712-04081A |
HEX NUT W/PATCH Price: $6.49 |
| 15 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 16 |
720-0274 |
GRIP Price: $9.99 |
| 17 |
720-04039 |
SHIFT KNOB Price: $9.09 |
| 18 |
925-1629 |
LAMP-12V Price: $9.70 |
| 19 |
926-0154 |
PUSH MOUNT TIE Price: $5.50 |
| 20 |
731-04894D |
LOCK PLATE Price: $4.61 |
| 21 |
731-04896C |
CLUTCH LOCK CAM This part replaces 731-04896B. Price: $3.56 |
| 22 |
732-0193 |
COMPRESSION SPRING Price: $4.11 |
| 23 |
732-04219C |
CLUTCH SPRING Price: $3.70 |
| 24 |
732-04238B |
TORSION SPRING Price: $4.66 |
| 25 |
735-0199A |
Rubber Bumper This part replaces 935-0199A. Price: $6.89 |
| 26 |
936-0267 |
FLAT WASHER Price: $3.90 |
| 27 |
738-04125 |
SHOULDER SCREW Price: $4.08 |
| 28 |
738-04348 |
SHOULDER SCREW .437 x 1.345 1/4-20 Price: $3.14 |
| 29 |
946-04396A |
SPEED SELECTOR CABLE (PLASTIC) Price: $18.04 |
| 30 |
790-00248E-0637 |
HANDLE SUPPORT BRACKET This part replaces 790-00248D-0637. Price: $21.49 |
