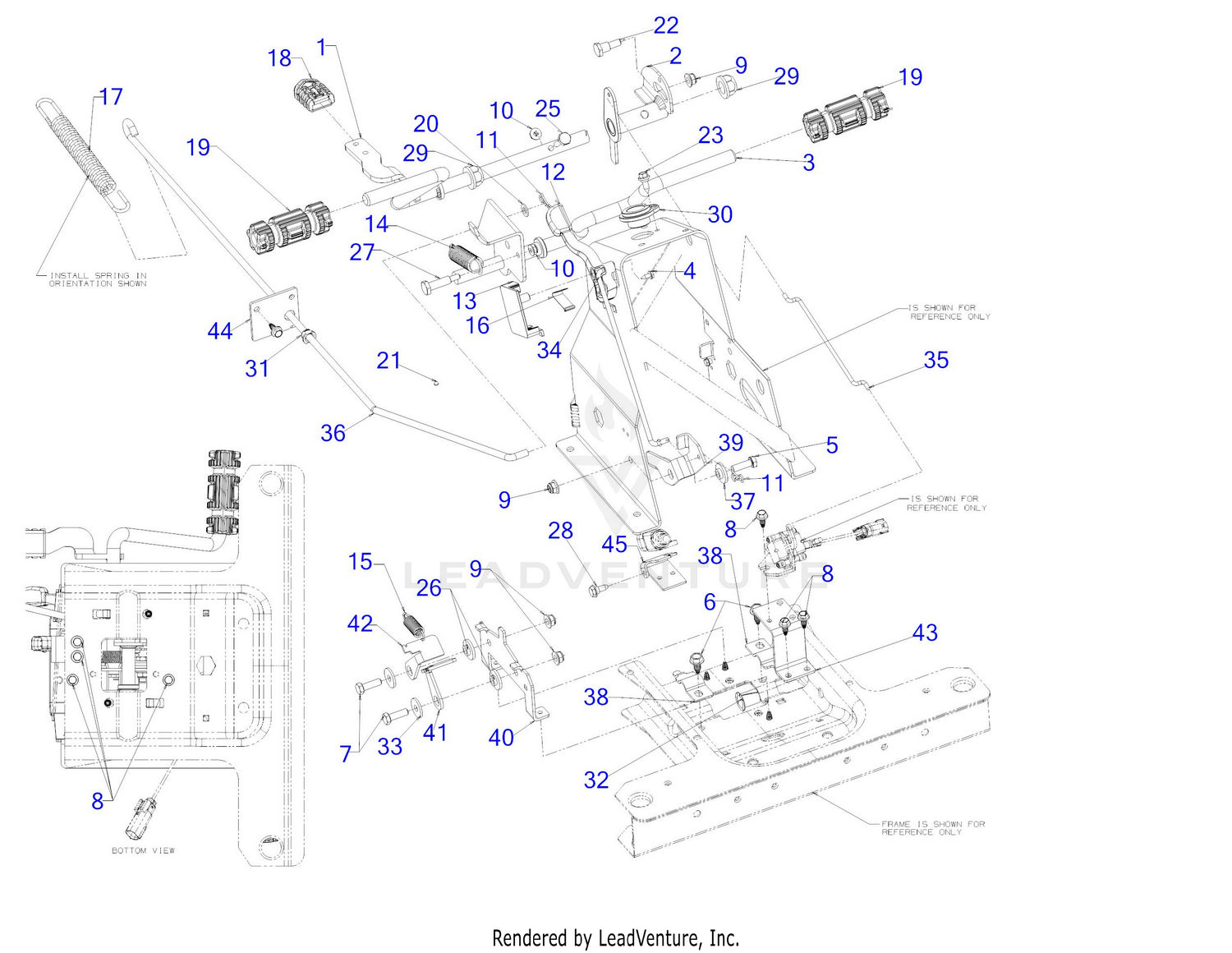

| Ref | Part Number | Description |
|---|
| 2 |
683-05384 |
PEDAL ASSEMBLY Price: $41.80 |
| 3 |
683-05454 |
BRAKE PEDAL ASSEMBLY Price: $32.00 |
| 4 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 Price: $3.19 |
| 5 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-0643 |
SCREW 5/16-18 x 1.00 GR5 Price: $5.99 |
| 8 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 9 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 10 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 11 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 12 |
731-11574 |
PARK BRAKE LEVER Price: $7.30 |
| 13 |
731-11924 |
SPEED CONTROL COVER Price: $3.70 |
| 14 |
732-04306 |
EXTENSION SPRING Price: $9.32 |
| 15 |
732-04448 |
EXTENSION SPRING Price: $9.09 |
| 16 |
732-04937 |
SHIFT SPRING Price: $3.46 |
| 17 |
732-05146 |
EXTENSION SPRING 0.90 DIA x 8.14 Price: $11.07 |
| 18 |
735-04117 |
REVERSE PEDAL PAD Price: $5.68 |
| 19 |
735-05051 |
BRAKE PEDAL PAD Price: $10.13 |
| 20 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 22 |
738-0138A |
SHOULDER SCREW 5/16-18 x .62 GR2 Price: $5.81 |
| 25 |
738-05000 |
SHOULDER SCREW .375 x .148 Price: $3.70 |
| 26 |
738-05313 |
SHOULDER SPACER .315 X .500 X .140 Price: $3.25 |
| 27 |
938-0572 |
SHOULDER SCREW Price: $7.03 |
| 28 |
738-1225 |
Shoulder Screw This part replaces 938-1225. Price: $5.91 |
| 29 |
941-0225 |
FLANGE BEARING Price: $6.55 |
| 30 |
741-0356A |
FLANGE BEARING Price: $6.19 |
| 31 |
941-0475 |
BUSHING .380 ID Price: $3.74 |
| 32 |
741-05135 |
FLANGE BEARING .626 x .938 x .875 Price: $5.48 |
| 33 |
741-05310 |
THRUST BEARING .323 X .985 X .100 Price: $1.56 |
| 34 |
747-06449 |
SPEED SELECT ROD Price: $13.05 |
| 35 |
747-06948 |
SWITCH ROD Price: $5.22 |
| 36 |
747-06996 |
BRAKE ROD Price: $20.03 |
| 37 |
748-0234 |
SHOULDER SPACER Price: $3.86 |
| 38 |
783-05940 |
BRAKE SHAFT STRAP Price: $6.17 |
| 39 |
783-08953 |
PARK BRAKE BRACKET Price: $28.85 |
| 41 |
783-09595A |
REVERSE RETURN BRACKET Price: $13.88 |
| 42 |
783-09596A |
FORWARD RETURN BRACKET Price: $16.31 |
