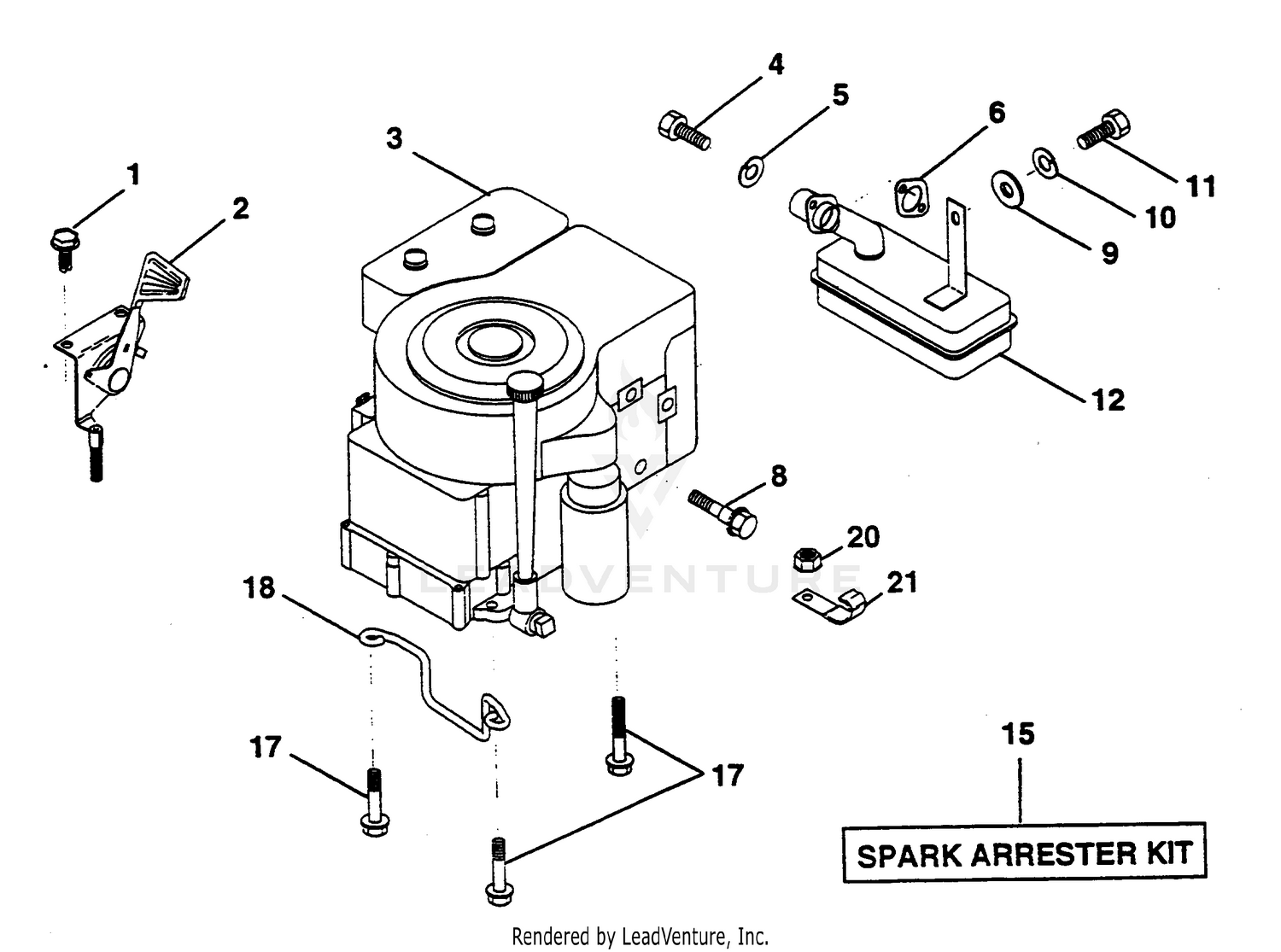

| Ref | Part Number | Description |
|---|
| 1 |
539990071 |
HCS 1/4-20. This part replaces 817720408. Price: $1.99 |
| 2 |
532132752 |
Control, Throttle (AYP part number) Price: $17.99 |
| 4 |
532192334 |
SCREW.SOCKET HD.5/16-1 This part replaces 871070512. Price: $2.99 |
| 5 |
810040500 |
Washer, Lock, Heavy Helical Spring 5/16 (AYP part number) Price: $2.99 |
| 6 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532125593. Price: $7.99 |
| 8 |
532121094 |
Bolt, Shoulder 5/16 (AYP part number) Price: $2.99 |
| 9 |
531003379 |
WASHER This part replaces 819101216. Price: $2.99 |
| 10 |
810040400 |
Washer, Lock, Heavy Helical Spring 1/4 (AYP part number) Price: $3.99 |
| 12 |
532137437 |
Muffler (AYP part number) Price: $179.99 |
| 15 |
532137180 |
Arrester, Spark (Optional Equipment) (AYP part number) Price: $129.99 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 817490624. Price: $3.99 |
| 18 |
532126636 |
Keeper, Ground Drive Belt (AYP part number) Price: $5.99 |
| 20 |
873510600 |
Nut, Hex, Keps 3/8-16 (AYP part number) Price: $3.99 |
