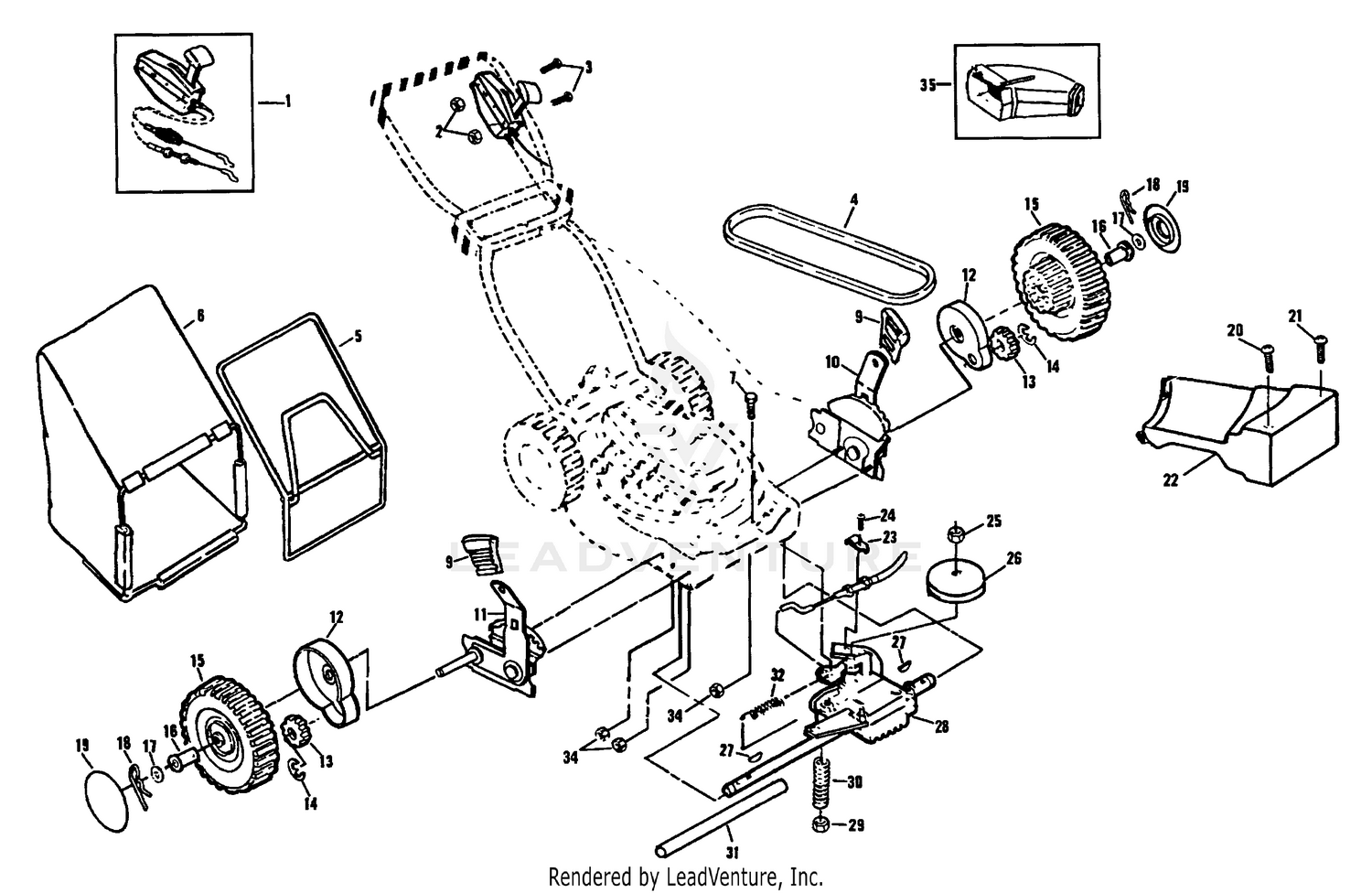

| Ref | Part Number | Description |
|---|
| 1 |
532133046 |
CONTROL.DRIVE.DUAL.HEAD.BOWDEN Price: $74.99 |
| 1 |
67-4630 |
ALTERNATOR ASSEMBLY Price: $550.36 |
| 2 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 2 |
67-4670 |
NUT Price: $1.65 |
| 3 |
67-3260 |
WASHER Price: $1.58 |
| 3 |
874250434 |
SCREW.1/4-20.CROSS.RECESS. This part replaces 532085692. Price: $3.99 |
| 4 |
42-9660 |
WASHER Price: $2.50 |
| 4 |
532083691 |
V BELT Price: $17.99 |
| 5 |
43-0370 |
DISCONTINUED Price: Call Us |
| 5 |
532088614 |
CATCHER.FRAME.WALK This part replaces 532800393. Price: $44.99 |
| 6 |
532134048 |
This part replaces 532800386. Price: $36.95 |
| 6 |
67-4870 |
REAR BEARING Price: $46.57 |
| 7 |
67-4860 |
DISCONTINUED Price: Call Us |
| 7 |
874780444 |
This part replaces 874760444. Price: $1.60 |
| 8 |
67-4930 |
DISCONTINUED Price: Call Us |
| 9 |
532701037 |
SELECTOR KNOB This part replaces 532132800. Price: $4.99 |
| 9 |
67-4890 |
REAR BRACKET ASSEMBLY Price: $997.52 |
| 10 |
532800363 |
WHL ADI LH Price: $21.48 |
| 10 |
67-4880 |
DISCONTINUED Price: Call Us |
| 11 |
532800366 |
WHL ADJ RH Price: $4.99 |
| 11 |
67-4900 |
DISCONTINUED Price: Call Us |
| 12 |
532076401 |
DUST COVER Price: $3.18 |
| 12 |
67-4910 |
REGULATOR ASSEMBLY Price: $649.68 |
| 13 |
532074507 |
PINION.10.TEETH Price: $2.99 |
| 13 |
67-4920 |
BRUSH Price: $19.03 |
| 14 |
43-0510 |
BRUSH SPRNG Price: $6.49 |
| 14 |
812000003 |
E-RING Price: $4.99 |
| 15 |
532702236 |
WHEEL.8X2. This part replaces 532086954. Price: $17.99 |
| 15 |
67-4830 |
FRONT BRACKET ASSEMBLY Price: $283.39 |
| 16 |
532086960 |
BUSHING.1.860 X .505. Price: $4.99 |
| 16 |
67-4810 |
PULLEY SET Price: $48.24 |
| 17 |
51-7850 |
NUT SET This part replaces 43-1920. Price: $1.46 |
| 17 |
596040101 |
Washers This part replaces 532052160. Price: $2.99 |
| 18 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 18 |
67-4840 |
SCREW SET Price: $5.18 |
| 19 |
532850844 |
HUBCAP Price: $3.08 |
| 19 |
67-4850 |
FRONT BEARING Price: $24.45 |
| 20 |
532075725 |
SCREW Price: $2.99 |
| 20 |
67-4820 |
BOLT SET Price: $9.73 |
| 21 |
67-4620 |
SPACER Price: $17.73 |
| 21 |
874981028 |
Pan Head Machine Screw #10-24 x 1-3/4 Price: $1.60 |
| 22 |
532700479 |
DRIVE COVER-GRAY This part replaces 532135503. Price: $5.83 |
| 22 |
67-4640 |
BOLT Price: $9.56 |
| 23 |
532083700 |
CABLE CLAMP Price: $5.99 |
| 23 |
75-4940 |
BRACE Price: $20.68 |
| 24 |
42-9440 |
BOLT/WASHER Price: $4.52 |
| 24 |
532750108 |
SCREW WASHER HD Price: $3.99 |
| 25 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 25 |
54-8660 |
WASHER Price: $2.23 |
| 26 |
532131482 |
DRIVE PULLEY Price: $3.99 |
| 26 |
67-4660 |
BOLT-FLANGE Price: $2.64 |
| 27 |
532065692 |
WOODRUFF KEY Price: $2.99 |
| 28 |
532048281 |
GEAR CASE ASSEMBLY This part replaces 532132232. Price: $101.40 |
| 29 |
873850400 |
This part replaces 532068038. Price: $2.51 |
| 30 |
532137090 |
SPRING.EXTENSION This part replaces 532083632. Price: $4.99 |
| 31 |
532086012 |
DRV SHAFT TUBE PM Price: $5.46 |
| 32 |
532075192 |
SPRING Price: $4.99 |
| 34 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
