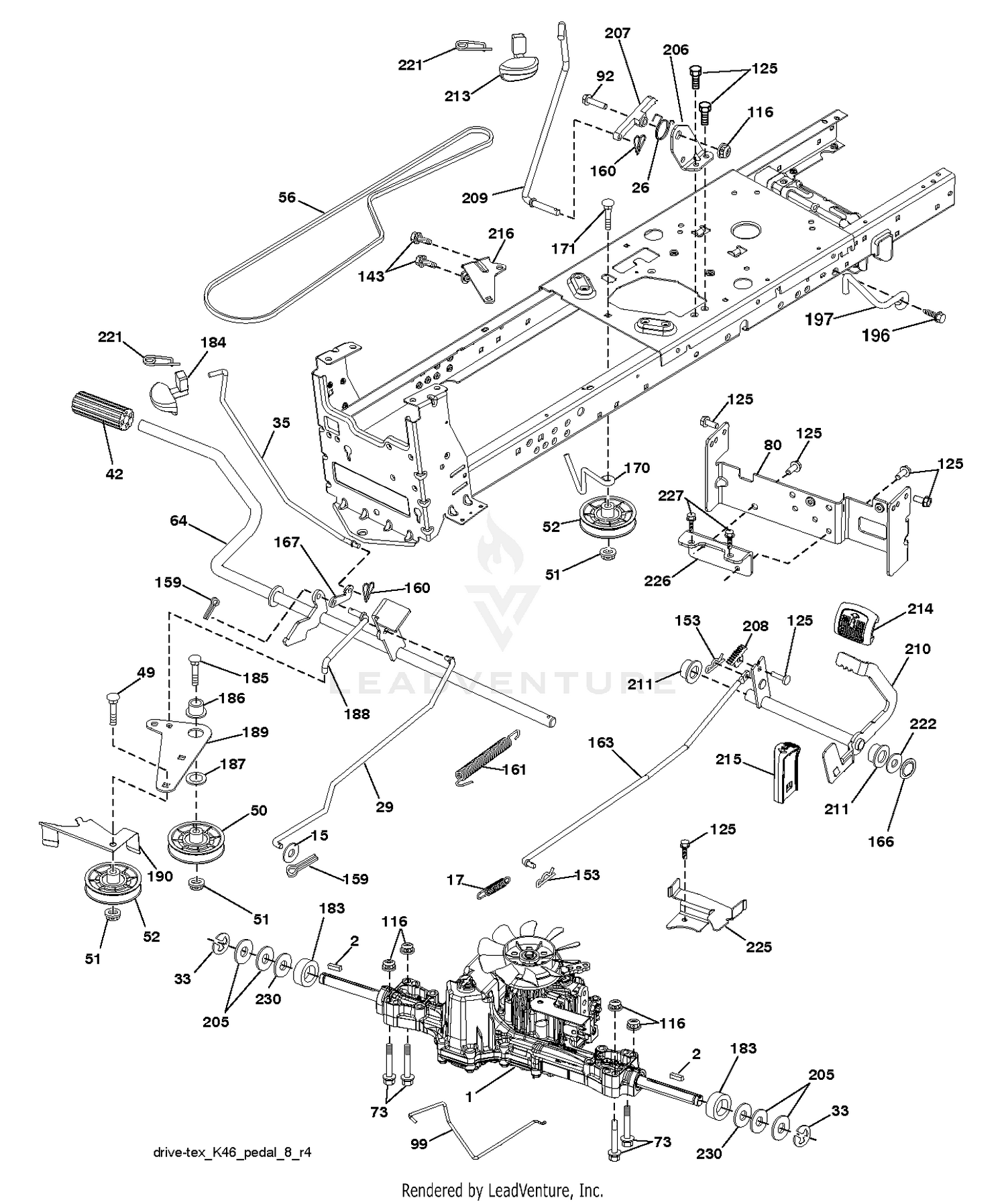

| Ref | Part Number | Description |
|---|
| 1 |
100-6443-01 |
FRAME ASM Price: $465.51 |
| 2 |
532123583 |
SQUARE KEY Price: $2.99 |
| 2 |
94-3405 |
BEARING-BALL Price: $22.27 |
| 3 |
95-7148 |
HOUSING-BEARING Price: $68.65 |
| 4 |
95-1642-01 |
WEIGHT-COUNTER Price: $59.47 |
| 5 |
93-2569 |
SCREW-HHF Price: $1.08 |
| 6 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 10 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 11 |
33026-00 |
NUT-HEX Price: $1.02 |
| 12 |
323-5 |
SCREW-HH Price: $0.41 |
| 13 |
99-4210 |
ROLLER-ANTI SCALP Price: $20.79 |
| 14 |
99-1615 |
REAR ROLLER ASM Price: $432.04 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 15 |
99-4209 |
SHAFT-ROLLER Price: $8.18 |
| 16 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $3.99 |
| 17 |
99-8168 |
COLLAR-HOC Price: $13.54 |
| 18 |
2410-30 |
CAP-PLASTIC Price: $0.83 |
| 19 |
33114-025 |
SCREW-HH Price: $0.70 |
| 20 |
67-1300 |
DECAL Price: $29.99 |
| 21 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 22 |
33115-025 |
SCREW-HH Price: $0.61 |
| 23 |
99-1614 |
ROLLER ASM Price: $617.23 |
| 24 |
33126-040 |
SCREW-CARR Price: $2.85 |
| 25 |
99-1637-01 |
PLATE-SCRAPER Price: $25.65 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $2.99 |
| 26 |
99-1620-01 |
PLATE-WEIGHT, LONG Price: $47.60 |
| 27 |
33116-070 |
SCREW-HH Price: $4.14 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 31 |
117-0561-01 |
PLATE-PIVOT Price: $27.62 |
| 32 |
100-6449 |
ROLLER-LIFT Price: $14.58 |
| 33 |
100-6448 |
SPACER-ROLLER Price: $14.66 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 34 |
323-12 |
SCREW-HH Price: $1.14 |
| 35 |
532197722 |
ROD.BRAKE.PARKING.LT.T Price: $8.99 |
| 35 |
88-6330 |
SPRING-EXTENSION Price: $7.99 |
| 36 |
100-9818-01 |
PLATE-MOUNT, SPRING Price: $28.16 |
| 37 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 38 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 39 |
3256-45 |
WASHER-FLAT Price: $0.28 |
| 42 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532130969 |
V-BELT.MOWER.92.40.42/K46 Price: $22.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $32.99 |
| 73 |
874490540 |
BOLT Price: $2.99 |
| 80 |
532440619 |
STRAP.TORQUE.K46.K57R.TT Price: $17.99 |
| 92 |
874520520 |
BOLT.5/16-18X1-1/4 FULL THD This part replaces 874760520. Price: $2.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $6.99 |
| 116 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 143 |
817490508 |
SCREW LT Price: $3.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 163 |
532401034 |
ROD.CONTROL.PEDAL.K46 This part replaces 532448275. Price: $27.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $3.99 |
| 171 |
872110616 |
BOLT Price: $3.99 |
| 183 |
532137057 |
SPACER AXLE Price: $3.99 |
| 184 |
532441504 |
HANDLE.PARKING.BRAKE.LTTEX.667 Price: $5.99 |
| 185 |
872110622 |
BOLT Price: $0.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $1.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $4.99 |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $2.99 |
| 207 |
532197868 |
LATCH.CONTROL.CRUISE Price: $6.99 |
| 208 |
532197869 |
GEAR.SECTOR.CONTROL.CR Price: $3.99 |
| 209 |
583266101 |
ROD.CONTROL.CRUISE.LT.ELITE This part replaces 532400769. Price: $11.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $19.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $2.99 |
| 213 |
532424744 |
HANDLE.CONTROL.CRUISE.ELTE Price: $37.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $4.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $3.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $3.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $2.99 |
| 225 |
532403319 |
KEEPER.BELT.TRANSAXLE.K46 Price: $14.99 |
| 226 |
532401564 |
BRACKET.MOUNT.TORQUE.K46.TLT Price: $12.99 |
| 227 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
