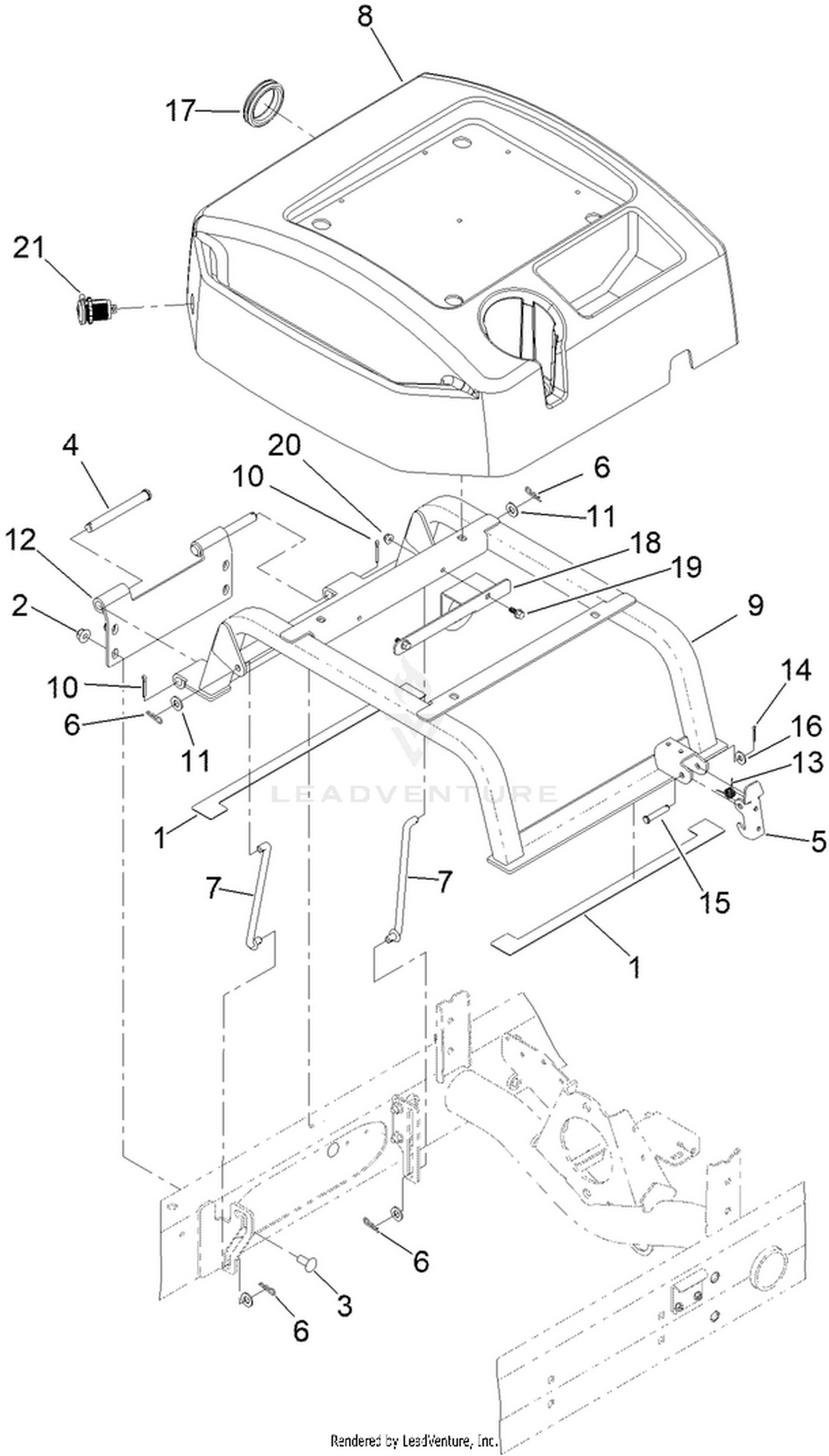

| Ref | Part Number | Description |
|---|
| 1 |
110-5255 |
BUMPER-BASE, SEAT Price: $29.06 |
| 2 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 3 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 4 |
283-83 |
PIN-CLEVIS Price: $9.52 |
| 5 |
110-8971 |
LATCH Price: $15.79 |
| 6 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 7 |
98-0917 |
ROD-PROP Price: $51.33 |
| 8 |
145-2450 |
COVER-SEATBASE Price: $122.69 |
| 9 |
125-2122-03 |
SEAT BASE ASM Price: $449.44 |
| 10 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 12 |
125-2121-03 |
HINGE-SEATBASE Price: $45.67 |
| 13 |
104-4821 |
SPRING-TORSION Price: $6.26 |
| 14 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 15 |
94-3829 |
PIN-CLEVIS Price: $2.10 |
| 16 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 17 |
240-12 |
GROMMET Price: $28.58 |
| 18 |
145-2480-0P |
BRACKET-HARNESS Price: Call Us |
| 19 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 20 |
104-7201 |
NUT-HF Price: $0.69 |
