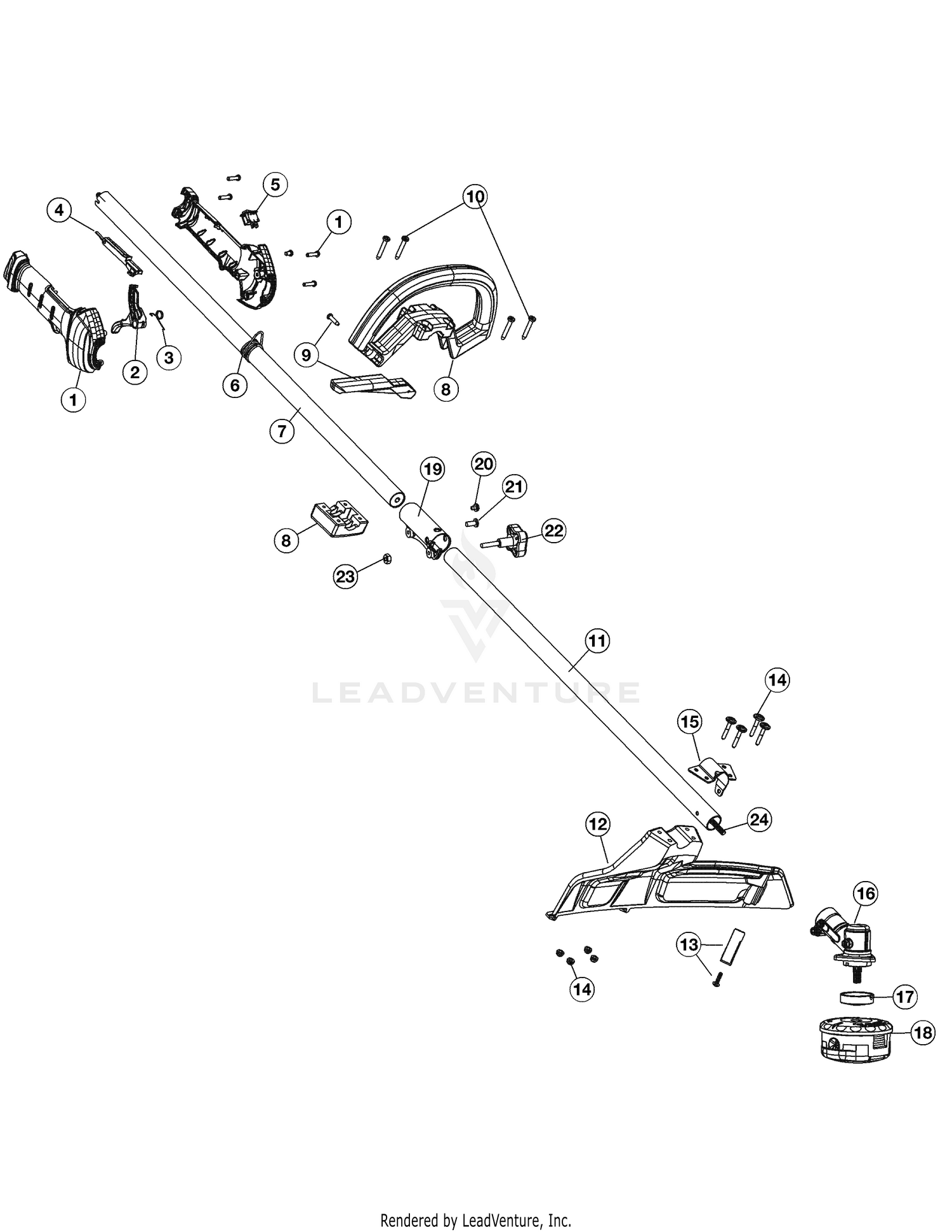

| Ref | Part Number | Description |
|---|
| 1 |
753-05192 |
Throttle Housing Assembly (includes 2-5) Price: $32.33 |
| 2 |
731-04970B-10 |
Throttle Trigger This part replaces 753-05517. Price: $8.16 |
| 3 |
753-05007 |
TRIGGER SPRING Price: $4.42 |
| 4 |
731-04971B-10 |
LOCK OUT LEVER This part replaces 753-05171. Price: $4.40 |
| 5 |
791-182405 |
Switch Price: $9.29 |
| 6 |
4301A |
SHOULDER STRAP CLAMP Price: $3.06 |
| 6 |
791-610327 |
Shoulder Strap Clip Price: $28.62 |
| 7 |
753-04236 |
Upper Drive Shaft Housing Assembly Price: $87.52 |
| 8 |
753-05008 |
D-Handle Assembly (includes 9 & 10) Price: $27.72 |
| 9 |
753-05295 |
BARRIER BAR ASSEMBLY Not Available Price: |
| 10 |
791-181070 |
Screw Price: $3.95 |
| 11 |
753-04504 |
Lower Drive Shaft Housing Assembly Price: $64.45 |
| 12 |
753-05820 |
Shield Assembly (includes 13) Price: $21.37 |
| 13 |
753-05821 |
Blade Assembly Price: $8.03 |
| 14 |
753-05822 |
Screw Not Available Price: |
| 15 |
753-06089 |
GUARD MOUNT BRACKET Not Available Price: |
| 16 |
791-182193 |
Gearbox Price: $87.42 |
| 17 |
791-182196 |
Gearbox Spacer Price: $19.73 |
| 18 |
841-032392S |
Cutting Head Assembly This part replaces 796-00033. Price: $20.60 |
| 19 |
753-1190 |
Split Boom Coupler (includes 20-23) Price: $20.56 |
| 20 |
791-182057 |
Screw Price: $3.93 |
| 21 |
791-181617 |
Bolt Price: $4.59 |
| 22 |
791-181987 |
Adjustment Knob Price: Call Us |
| 23 |
712-04018A |
Knob Retaining Nut This part replaces 753-04386. Price: $3.78 |
