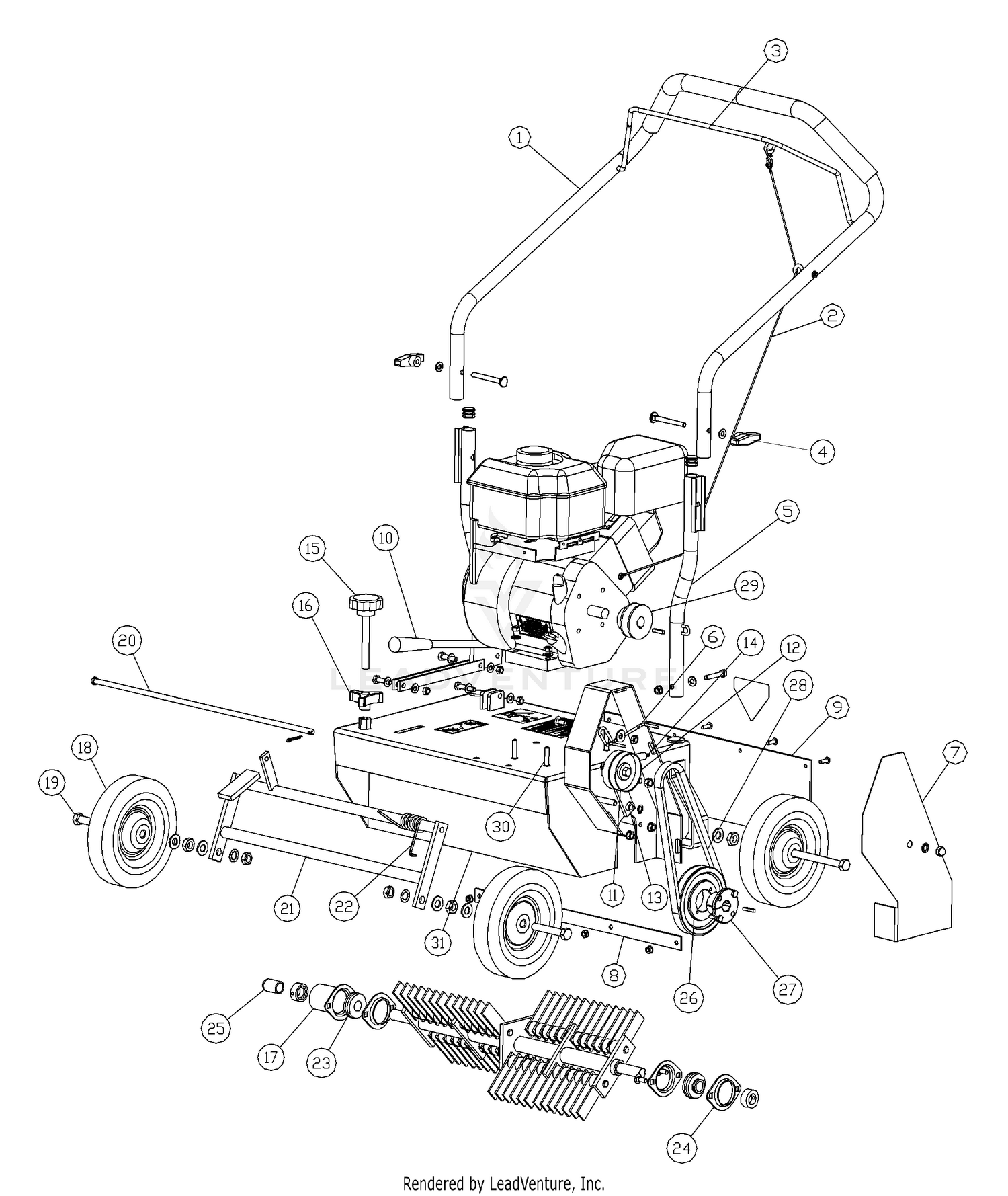

Compact Dethatcher

Compact Dethatcher

Parts (33)

RefPart NumberDescription
1 94-5098 CARRIER FRAME ASM, REAR Price: $508.32
2 125-5196 BUSHING This part replaces 3-0348. Price: $6.00
3 302-5 FITTING-GREASE Price: $0.59
3 540054003 BAIL Price: $17.99
4 302-60 FITTING-GREASE Price: $2.26
5 94-3353 DECAL-POINT, PINCH Price: $3.76
6 94-5096 CARRIER FRAME ASM, LH Price: $511.94
7 94-5097 CARRIER FRAME ASM, RH Price: $472.53
8 3296-29 NUT-LOCK, NI Price: $2.09
9 3256-3 WASHER-FLAT Price: $0.49
9 540005161 DEFLECTOR, NEOPRENE Price: $19.99
11 322-6 SCREW-HH Price: $0.45
12 539000343 PULLEY, IDLER 2 3/4 OD PAINTED This part replaces 540000343. Price: $22.99
12 94-5087 BUMPER Price: $6.48
13 3296-39 NUT-LOCK, NI This part replaces 3296-22. Price: $2.29
13 539005121 ARM, MOUNTING, IDLER PULLEY This part replaces 540005121. Price: $69.99
14 3256-24 WASHER-FLAT Price: $0.28
14 539005129 SPRING, CLUTCH This part replaces 540005129. Price: $5.99
15 323-7 SCREW-HH Price: $0.65
15 539054008 KIT, DEPTH ADJ. KNOB This part replaces 540054008. Price: $64.99
16 321-35 SCREW-HH Price: Call Us
16 539030485 KNOB This part replaces 540054009. Price: $6.99
17 539005013 GUARD, SHAFT END W/STAMPING CE This part replaces 540054010. Price: $23.25
17 98-9013-01 ANCHOR-SPRING, C'BALANCE This part replaces 98-9013. Price: $11.99
18 32153-4 NUT-HEX, SIDE DEFORM Price: $0.75
18 540075051 WHEEL 8 X 1 3/4 RAKE This part replaces 540005051. Price: $27.99
22 539054014 KIT, TORSION SPRING This part replaces 540054014. Price: $59.99
23 539000315 BRG 3/4" W/LOCKING COLLAR This part replaces 540000315. Price: $32.99
25 539005005 CAP, PLASTIC This part replaces 540005005. Price: $11.99
26 539054015 V-PULLEY, B-5.0" This part replaces 540054015. Price: $99.99
28 539054017 KIT, V-BELT B-33" This part replaces 540054017. Price: $44.99
31 540054022 KIT, DECK Price: $282.45
03471 RM2300D Lift Arm Kit (Incl. Ref. #1-12) Price: Call Us 03471
