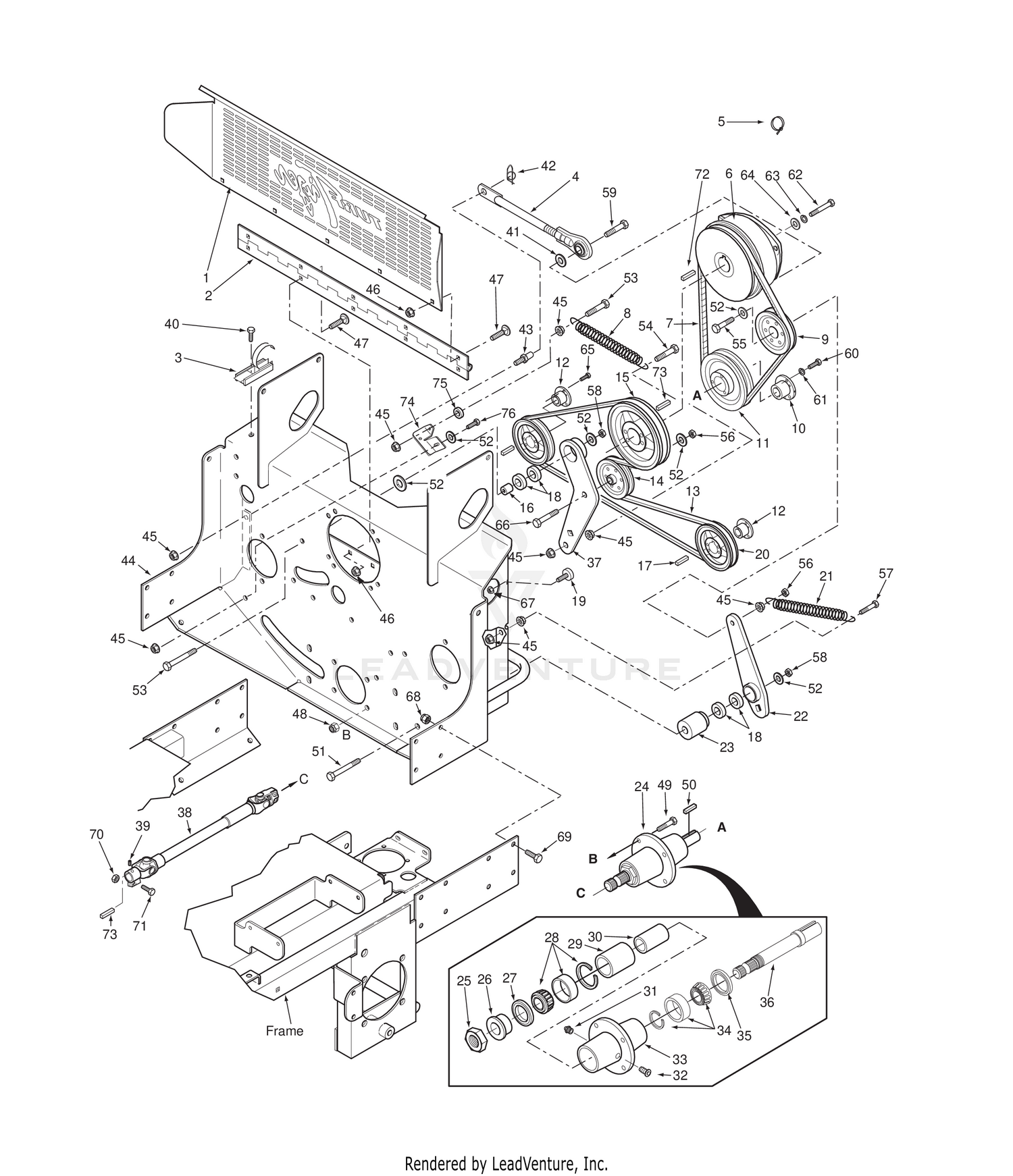

| Ref | Part Number | Description |
|---|
| 1 |
425133 |
Belt Guard, Rear This part replaces 423925. Price: Call Us |
| 2 |
481531 |
Hinge, Rear Belt Guard Price: Call Us |
| 3 |
481309 |
LATCH, HOOD Price: Call Us |
| 4 |
482845 |
Rod Assembly, Clutch Anti-Rotation Price: Call Us |
| 5 |
48030-09 |
Clamp, Cable 1/2" I.D. Price: Call Us |
| 6 |
461661 |
Electric Clutch w/Tag - GT-3.5 (FX850) Price: Call Us |
| 7 |
482876 |
Belt, Pump Drive - Kubota Price: Call Us |
| 8 |
483088 |
Spring, Transmission Idler Price: Call Us |
| 9 |
48181 |
IDLER PULLEY, "V" GROOVE Price: Call Us |
| 10 |
481536 |
Tapered Hub, 1.00 Bore Price: Call Us |
| 11 |
482949 |
Pulley, 6.70" O.D. Tapered Bore Price: Call Us |
| 12 |
481884 |
Tapered Hub, 17mm Bore Price: Call Us |
| 13 |
483165 |
Belt, Pump Drive This part replaces 483085. Price: Call Us |
| 14 |
483214 |
Pulley, Idler 4" Dia. This part replaces 482655. Price: Call Us |
| 15 |
483082 |
Pulley, 4.55" Dia.-1.125" Bore (25KA, 26CH-EFI) Price: Call Us |
| 16 |
43631 |
Spacer, Idler Bearing Price: Call Us |
| 17 |
04063-14 |
KEY, 5 MM X 5 MM X 25 MM Price: Call Us |
| 18 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 19 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 20 |
482752 |
Pulley, 6.25 OD Tapered Bore Price: Call Us |
| 21 |
482667 |
Spring, PTO Price: Call Us |
| 22 |
461609 |
Idler Arm Weldment, PTO Drive Price: Call Us |
| 23 |
43632 |
Pivot, Idler - PTO Price: Call Us |
| 24 |
461697 |
Spindle Assembly, Deck Drive Price: Call Us |
| 25 |
481035 |
Nut , Spec ial 1 -1/ 1 6 - 1 8 Price: Call Us |
| 26 |
43297 |
SPINDLE BUSHING, BOTTOM Price: Call Us |
| 27 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 28 |
481022 |
Tapered Bearing Set (Two Bearings W/Race) Price: Call Us |
| 29 |
43312 |
Spacer, Outside, Cutter Spindle Price: Call Us |
| 30 |
43296 |
SLEEVE, CUTTER SPINDLE Price: Call Us |
| 31 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 32 |
48677 |
RELIEF FITTING, TAPERED BEARING SPINDLE Price: Call Us |
| 33 |
43644 |
Housing, Spindle Price: Call Us |
| 34 |
481022 |
Tapered Bearing Set (Two Bearings W/Race) Price: Call Us |
| 35 |
481024 |
SEAL, 2.00 O.D. X 1.50 BORE Price: Call Us |
| 36 |
43534 |
Shaft, Deck Drive Price: Call Us |
| 37 |
461608 |
Idler Arm Weldment, Pump Drive Price: Call Us |
| 38 |
482424 |
Driveshaft (Air Cooled Engine) Price: Call Us |
| 39 |
04012-08 |
Set Screw, 3/8-16 x 3/4†Torx Socket Price: Call Us |
| 40 |
04011-11 |
Screw, #10-32 x .563 Shakeproof Price: Call Us |
| 41 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 42 |
04069-01 |
Pin, Rue Cotter 3/8" Diameter Price: Call Us |
| 43 |
43507 |
Stud, Anti-Rotation Price: Call Us |
| 44 |
451696 |
Pump Mounting Plate Weldment (Air Cooled) Price: Call Us |
| 45 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 46 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 47 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 48 |
04021-22 |
Lock Nut, 5/16-18 Elastic Stop Grade 8 Price: Call Us |
| 49 |
04001-176 |
Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8 Price: Call Us |
| 50 |
04063-06 |
KEY 1/4 X 1/4 X 1 1/2"(FOR 1" CRANKSHAFT Price: Call Us |
| 51 |
04001-171 |
Bolt, Hex Head 3/8-16 x 4-1/2" Grade 8 Black Price: Call Us |
| 52 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 53 |
04001-135 |
Bolt, Hex Head 3/8-16 x 1-3/4" Grade 8 Black Price: Call Us |
| 54 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 55 |
04001-170 |
Bolt, Hex Head 3/8-16 x 2-1/2" 1.5 Thread Grd.8 Price: Call Us |
| 56 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 57 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 58 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 59 |
04001-45 |
Capscrew, Hex Head 3/8-16 x 2.0" Price: Call Us |
| 60 |
04001-109 |
BOLT, HEX HEAD, 1/4-20 X 1-3/8(FULL THREAD) Price: Call Us |
| 61 |
04030-02 |
Lockwasher, 1/4†Spring Price: Call Us |
| 62 |
04001-101 |
Bolt, 7/16-20 x 2-1/2" Hex Head (Kohler Only) Price: Call Us |
| 63 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 64 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52) Price: Call Us |
| 65 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Black Price: Call Us |
| 66 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 67 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 68 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 69 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 70 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 71 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 72 |
04063-02 |
Key, 1/4 x 1/4 x 2-1/4" - SFZ-61 Only Price: Call Us |
| 451684 |
Pump |
Mounting Plate Weldment (Liquid Cooled) Price: Call Us 451684 |
| 461826 |
Electric |
Clutch w/Tag - GT-5 (FX921) This part replaces 461662. Price: Call Us 461826 |
| 483166 |
Belt, |
Pump Drive This part replaces 483086. Price: Call Us 483166 |
