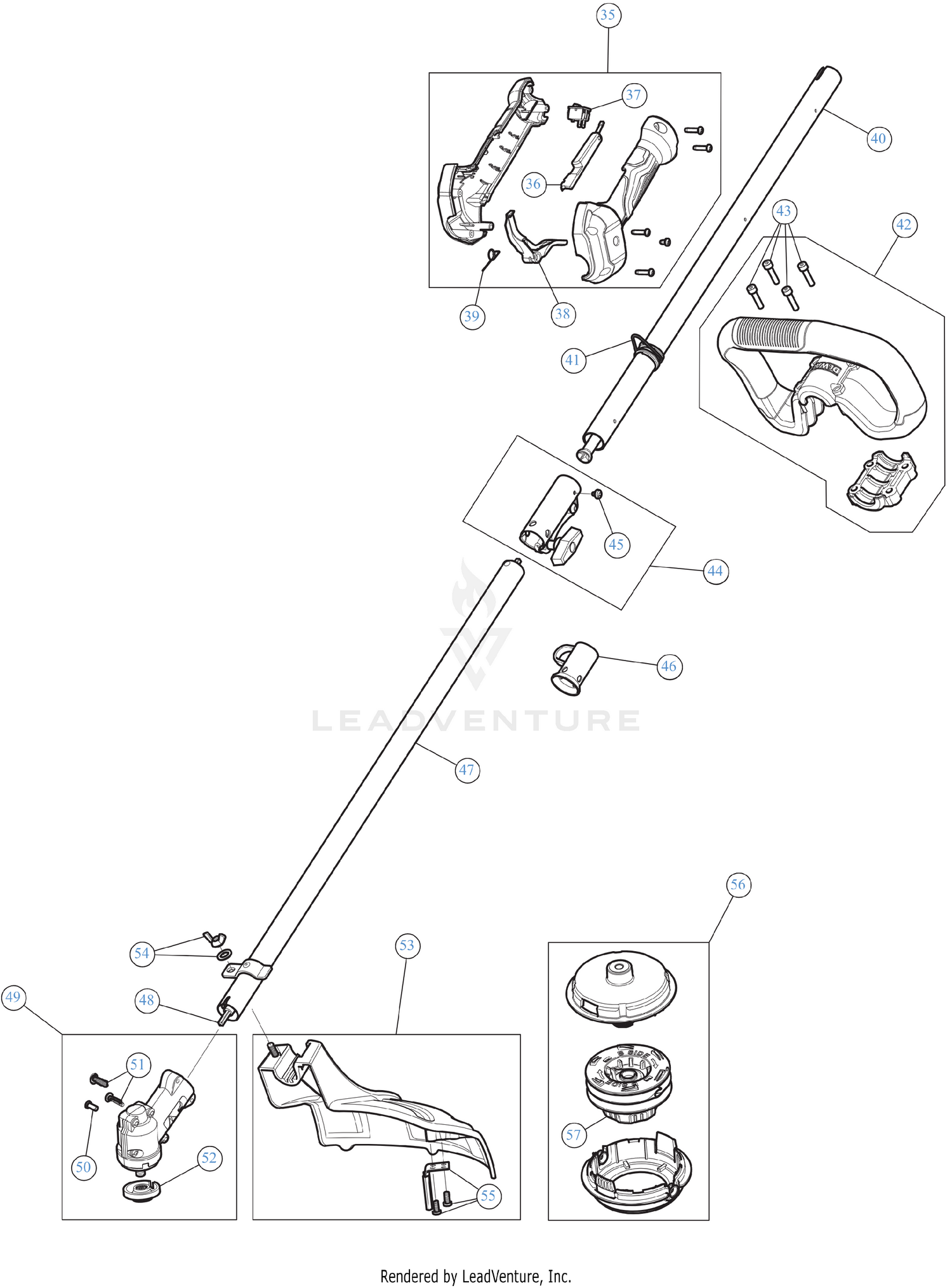

General Assembly
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 36 | 731-21872 | THROTTLE LOCK LEVER Price: $2.19 |
| 37 | 791-182405 | SW, MOMENTARY ON/O Price: $9.29 |
| 38 | 731-21871 | THROTTLE TRIGGER Price: $7.09 |
| 39 | 753-05007 | TRIGGER SPRING Price: $4.42 |
| 40 | 841-036143S | UPPER DRIVE SHAFT Price: $13.24 |
| 41 | 4301A | SHOULDER STRAP CLAMP Price: $3.06 |
| 41 | 791-610327 | CLAMP-SHOULDER STR Price: $28.62 |
| 43 | BD-90614038 | HANDLE BOLT Not Available Price: |
| 45 | 791-182057 | SCREW, 10-32X.250 TA Price: $3.93 |
| 46 | 731-08926 | HANGER Price: $2.32 |
| 47 | 841-036148S | LOWER DRIVE SHAFT Price: $16.45 |
| 48 | 753-05267 | LOWER DRIVE SHAFT Price: $37.46 |
| 50 | 791-182519 | SCREW, 8-32 x .312 P Price: $4.37 |
| 51 | 791-182195 | SCREW #10-24X11/16 T-25 Price: $6.20 |
| 52 | 748-05052 | CUTTING HEAD SPACER Price: $2.83 |
| 54 | 753-04282 | BLADE GUARD MOUNTING HARDWARE Price: $23.73 |
| 55 | 753-08355 | BLADE ASSEMBLY W/HDW Price: $3.61 |
| 57 | 731-10783-51 | BUMP KNOB Price: $4.18 |
