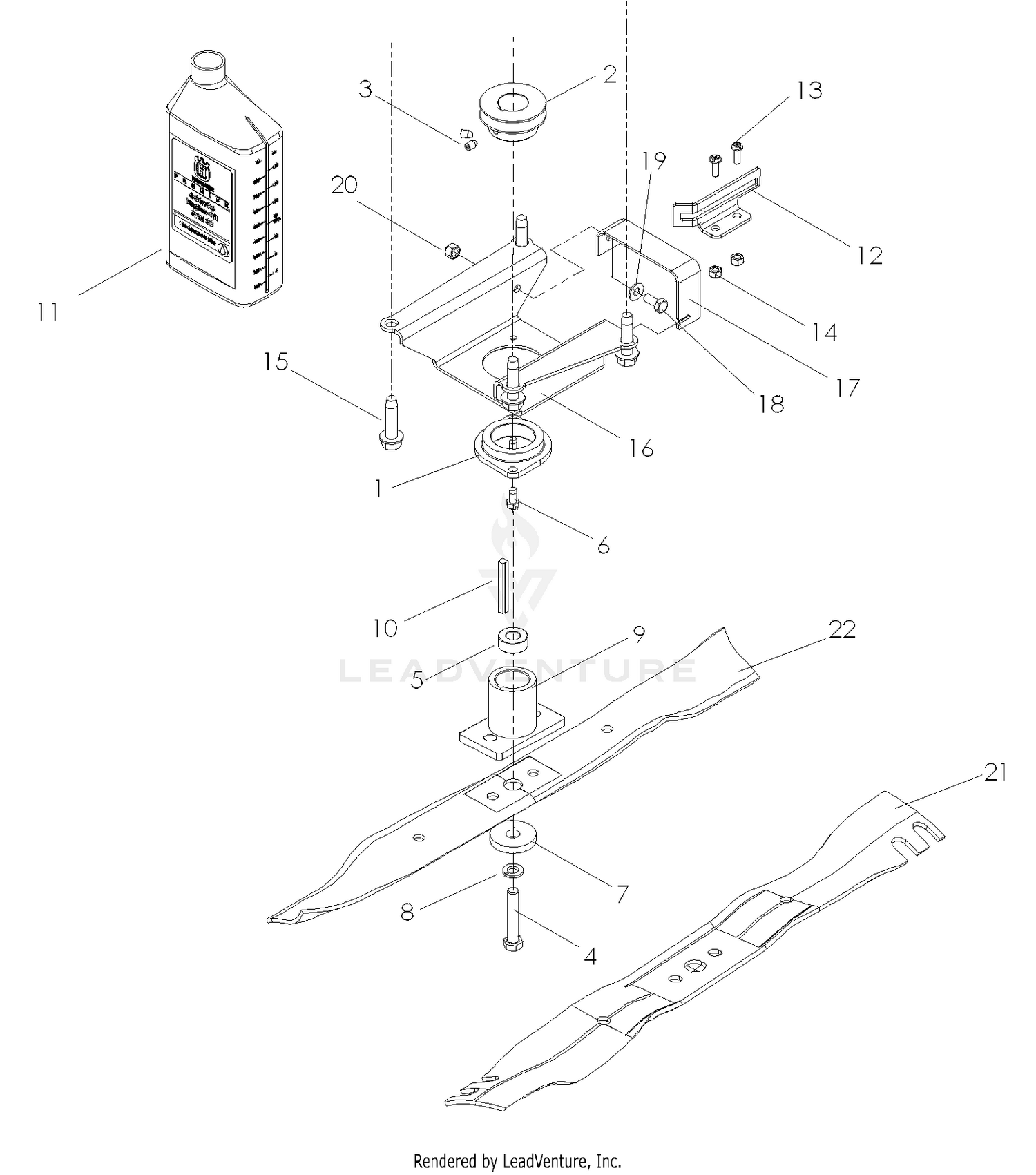

| Ref | Part Number | Description |
|---|
| 1 |
539114921 |
BEARING - SHAFT SUPPORT Price: $8.99 |
| 2 |
539111527 |
ENGINE PULLEY Price: $37.99 |
| 2 |
60-2000 |
PIN Price: $1.13 |
| 3 |
539108561 |
SCREW, 1/4-20 X 3/8, SET Price: $2.99 |
| 3 |
60-1750-03 |
LEVER-LATCHING, RH This part replaces 60-1750. Price: $94.34 |
| 4 |
539108506 |
HCS 3/8-24 X 2, GR8 Price: $2.99 |
| 4 |
60-1990 |
BUSHING Price: $14.57 |
| 5 |
47-7010 |
BUSHING-RUBBER Price: $122.81 |
| 5 |
539111975 |
BLADE DRIVER SPACER Price: $27.99 |
| 6 |
539105532 |
HEX CAP SCREW 1/4 Price: $2.99 |
| 6 |
60-1820 |
SHAFT-PIVOT, LATCH Price: $134.64 |
| 7 |
532126197 |
WASHER This part replaces 539110064. Price: $6.99 |
| 7 |
74-2920-03 |
CARRIER-FRONT This part replaces 60-0070. Price: $2,618.36 |
| 8 |
596238701 |
Washers This part replaces 539990118. Price: $3.99 |
| 8 |
60-1780-03 |
LEVER-LATCHING, LH This part replaces 60-1780. Price: $94.34 |
| 9 |
539111526 |
BLADE ADAPTER Price: $149.99 |
| 9 |
58-6990 |
FRONT STEP PAD Price: $25.75 |
| 10 |
539112794 |
KEY, STEPPED Price: $14.99 |
| 10 |
60-1270 |
PIN Price: $8.73 |
| 11 |
539112946 |
OIL W/LABEL, QT Price: $6.91 |
| 11 |
60-0670 |
SPRING Price: $19.50 |
| 12 |
51-2060 |
WASHER Price: $0.68 |
| 12 |
539113391 |
DECK GUARD, BBC Price: $1.99 |
| 13 |
596039001 |
Screws This part replaces 539976952. Price: $2.99 |
| 13 |
82-9360 |
ROD-LATCH This part replaces 60-1830. Price: $31.36 |
| 14 |
58-2720 |
PIN Price: $49.81 |
| 14 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 15 |
539110025 |
BOLT 3/8-16 X 1 1/2 ZINC CLEAR This part replaces 539111970. Price: $3.99 |
| 15 |
63-4380 |
TOW WARNING DECAL Price: $12.79 |
| 16 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
539130595 |
BRACKET-SHAFT SUPT Price: $34.99 |
| 17 |
539131648 |
BELT KEEPER FRONT BLACK Price: $37.99 |
| 17 |
60-0090 |
PIN-PIVOT Price: $93.25 |
| 18 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 18 |
596582501 |
Bolts This part replaces 539990072. Price: $2.99 |
| 19 |
3253-4 |
WASHER-LOCK This part replaces 48-9570. Price: $0.25 |
| 19 |
596582301 |
Washers This part replaces 539990055. Price: $2.99 |
| 20 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 20 |
60-0190 |
STRIP Price: $36.98 |
| 21 |
532199377 |
BLADE.21.PUSH This part replaces 539113233. Price: $22.99 |
