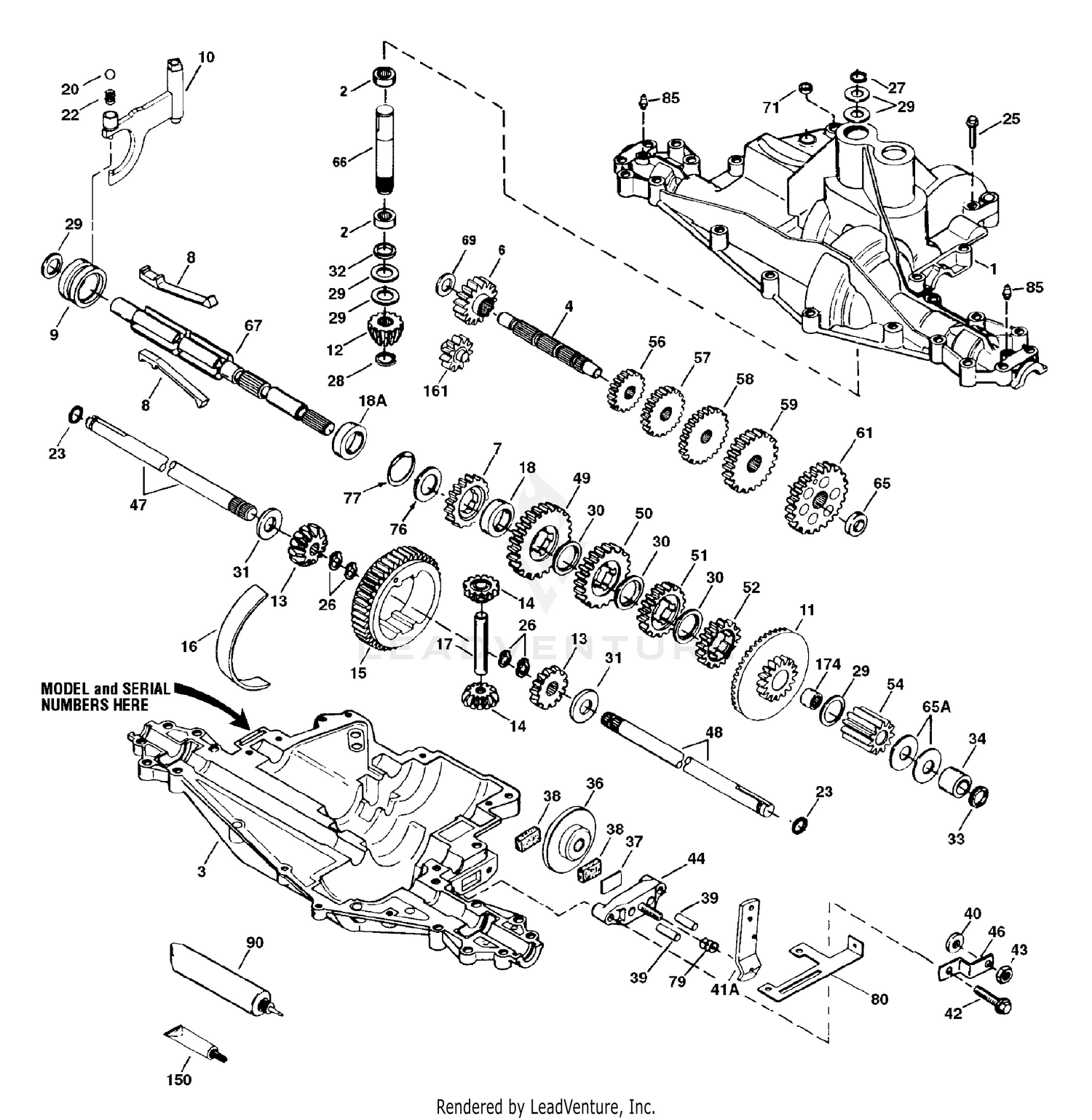

| Ref | Part Number | Description |
|---|
| 1 |
772113 |
Transaxle Cover Price: Call Us |
| 1 |
772135 |
Transaxle Cover Price: Call Us |
| 2 |
780086 |
Needle Bearing Price: Call Us |
| 3 |
770110 |
Transaxle Case Price: Call Us |
| 4 |
776300 |
Countershaft Price: Call Us |
| 6 |
778281 |
Spur Gear (16 teeth) Price: Call Us |
| 7 |
778122A |
Spur Gear (22 teeth) Price: Call Us |
| 8 |
792160 |
Shift Key Price: Call Us |
| 9 |
784373 |
Shift Collar Price: Call Us |
| 10 |
784365 |
Shift Rod & Fork Price: Call Us |
| 12 |
778262 |
Bevel Pinion (14 teeth) Price: Call Us |
| 13 |
778221 |
Bevel Gear (16 teeth) Price: Call Us |
| 14 |
778068 |
Differential Pinion Price: Call Us |
| 15 |
778260 |
Ring Gear Price: Call Us |
| 16 |
786150 |
Bearing Strip Price: Call Us |
| 17 |
786139 |
Drive Pin Price: Call Us |
| 18 |
786147 |
Neutral Spacer Price: Call Us |
| 18A |
786159 |
Neutral Spacer Price: Call Us |
| 20 |
792077 |
Ball, 5/16" dia. Price: Call Us |
| 22 |
TC-792079 |
SPRING Not Available This part replaces 792079. Price: |
| 23 |
TC-788061 |
SEAL RING Not Available This part replaces 788061. Price: |
| 25 |
792073 |
Screw, 1/4-20 x 1-1/4" Price: Call Us |
| 26 |
792125 |
Retaining Ring Price: Call Us |
| 27 |
TC-792035 |
Retaining Ring Not Available This part replaces 792035. Price: |
| 28 |
788040 |
Retaining Ring Price: Call Us |
| 29 |
TC-780072 |
THRUST WASHER Not Available This part replaces 780072. Price: |
| 30 |
TC-780108 |
Washer Not Available This part replaces 780108. Price: |
| 31 |
780001 |
Washer Price: Call Us |
| 32 |
TC-792001 |
RING-QUAD Not Available This part replaces 792001. Price: |
| 34 |
780159 |
Bushing Price: Call Us |
| 36 |
790071 |
Brake Disk Price: Call Us |
| 37 |
TC-790007 |
PLATE-BRAKE PAD Not Available This part replaces 790007. Price: |
| 38 |
799021 |
Brake Pad (pkg. of 2) Price: Call Us |
| 39 |
TC-786026 |
DOWEL PIN Not Available This part replaces 786026. Price: |
| 40 |
792076A |
Washer Price: Call Us |
| 41A |
N/A |
UNKNOWN |
| 42 |
792073 |
Screw, 1/4-20 x 1-1/4" Price: Call Us |
| 43 |
792075 |
Locknut, 5/16-24 Price: Call Us |
| 44 |
790025 |
Brake Pad Holder Price: Call Us |
| 46 |
786086 |
Brake Lever Bracket Price: Call Us |
| 47 |
774747 |
Axle (16-1/4" long) Price: Call Us |
| 48 |
774888 |
Axle (11" long) Price: Call Us |
| 49 |
TC-778124A |
SPUR GEAR (30 TEET Not Available This part replaces 778124A. Price: |
| 50 |
TC-778123A |
SPUR GEAR (25 TEET Not Available This part replaces 778123A. Price: |
| 51 |
778122A |
Spur Gear (22 teeth) Price: Call Us |
| 52 |
778273 |
Spur Gear (19 teeth) Price: Call Us |
| 54 |
778263 |
Spur Gear (11 teeth) Price: Call Us |
| 56 |
778126A |
Spur Gear (20 teeth) Price: Call Us |
| 57 |
778127A |
Spur Gear (25 teeth) Price: Call Us |
| 58 |
778128A |
Spur Gear (28 teeth) Price: Call Us |
| 59 |
778129A |
Spur Gear (30 teeth) Price: Call Us |
| 61 |
778265 |
Spur Gear (34 teeth) Price: Call Us |
| 65 |
780162 |
Washer Price: Call Us |
| 65A |
780160 |
Washer Price: Call Us |
| 66 |
776299 |
Input Shaft Price: Call Us |
| 67 |
776352 |
Shifter & Brake Shaft Price: Call Us |
| 69 |
780161 |
Washer Price: Call Us |
| 71 |
788069 |
Square Cut Ring Price: Call Us |
| 76 |
780090 |
Washer Price: Call Us |
| 77 |
788078A |
Inverted Retaining Ring (pkg. of 2) Price: Call Us |
| 79 |
792144 |
Spring Price: Call Us |
| 80 |
790063A |
Brake Bracket Price: Call Us |
| 85 |
792137 |
Lubrication Fitting Price: Call Us |
| 90 |
788067B |
Grease (32 oz. bottle Bentonite grease) Price: Call Us |
| 150 |
TC-510334 |
ELIMINATOR-GASKET Not Available This part replaces 510334. Price: |
| 161 |
776302 |
Reverse Idler Price: Call Us |
